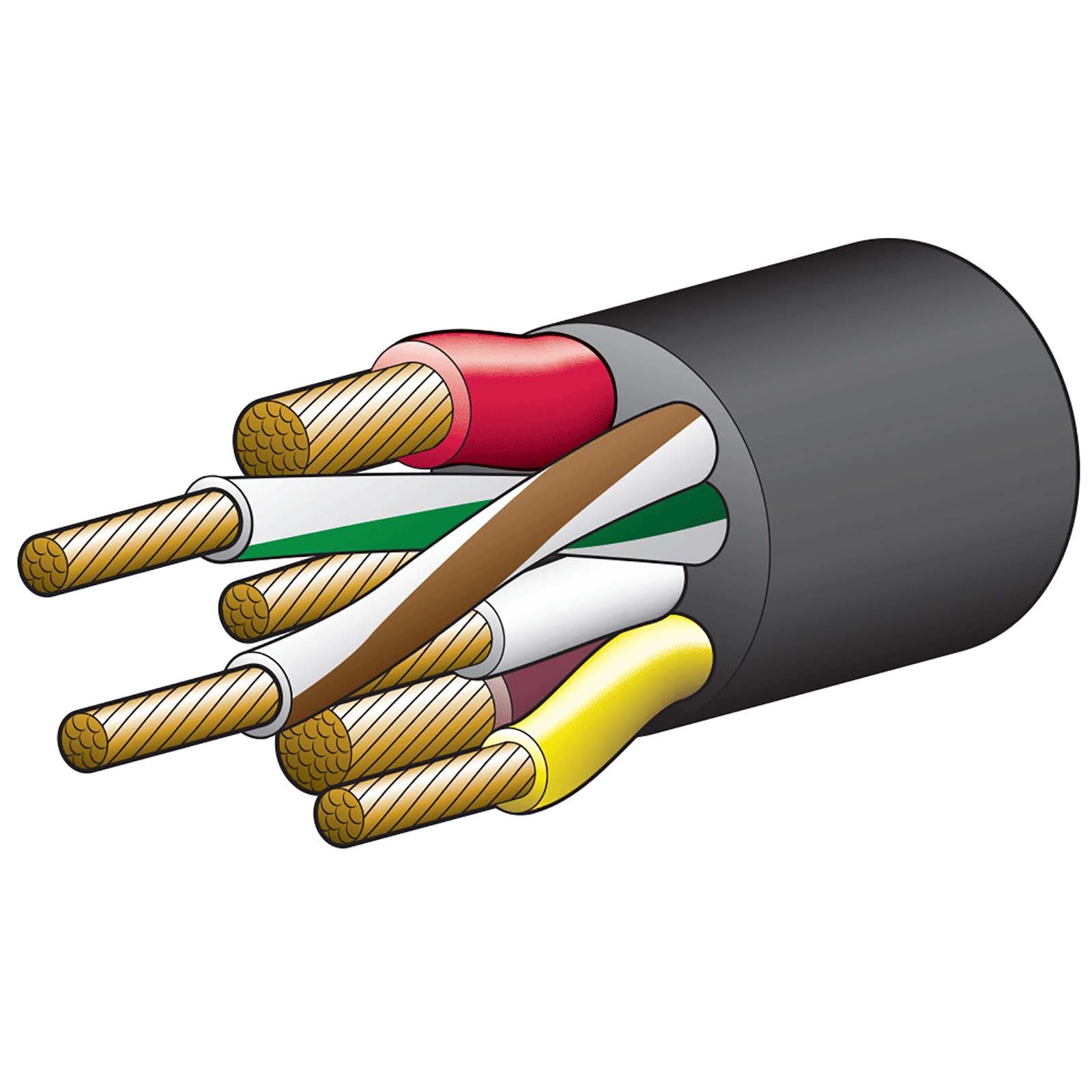

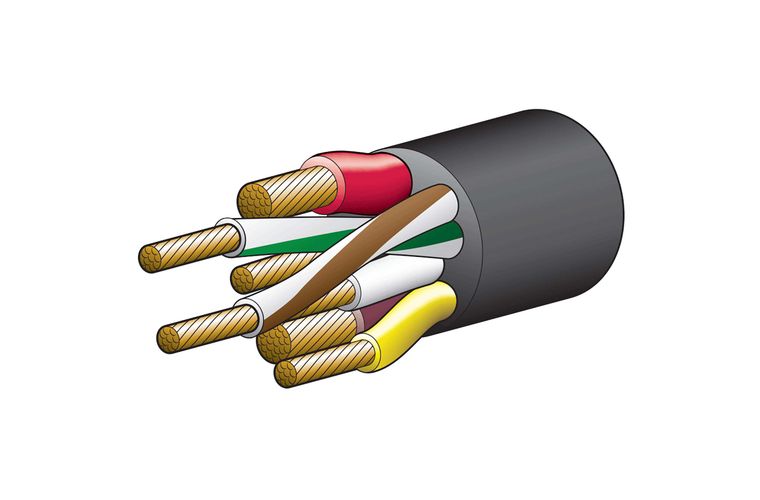

7 CORE EBS MULTICORE CABLE (100M) Red, Black, Yellow, Brown, White, White/Green, White/Bro
Part No. 5874-100EBS
Effective in early 2015 ADR38/04 specifies that all new trailers have either Anti-Lock
Brakes(ABS) or an Electronic Brake System(EBS) to automatically adjust the brakes.
EBS trailer cable is manufactured to the international standard ISO4141. In keeping
with the ISO standard the outer sheath is 1mm thick with a polyvinyl-chloride(V90PVC)
insulation. The 7 core cable includes two white twisted data cables with a green or brown trace.
Effective in early 2015 ADR38/04 specifies that all new trailers have either Anti-Lock
Brakes(ABS) or an Electronic Brake System(EBS) to automatically adjust the brakes.
EBS trailer cable is manufactured to the international standard ISO4141. In keeping
with the ISO standard the outer sheath is 1mm thick with a polyvinyl-chloride(V90PVC)
insulation. The 7 core cable includes two white twisted data cables with a green or brown trace.
Specifications
Technical Information
| OTHER | Conductor cross section: 5 x 1.50mm2, 2 x 4.0mm2 |
|---|---|
| OTHER | Strand No./Dia.: 30/0.25, 56/0 |
