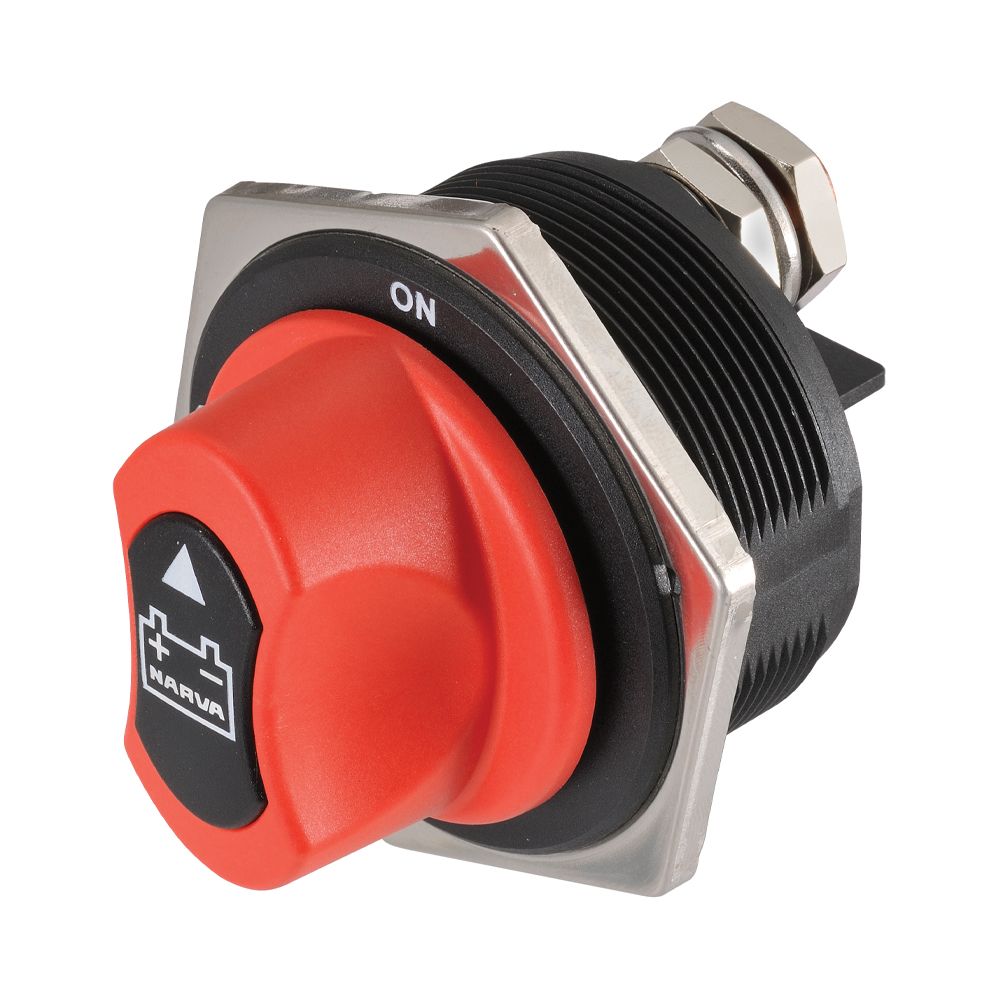

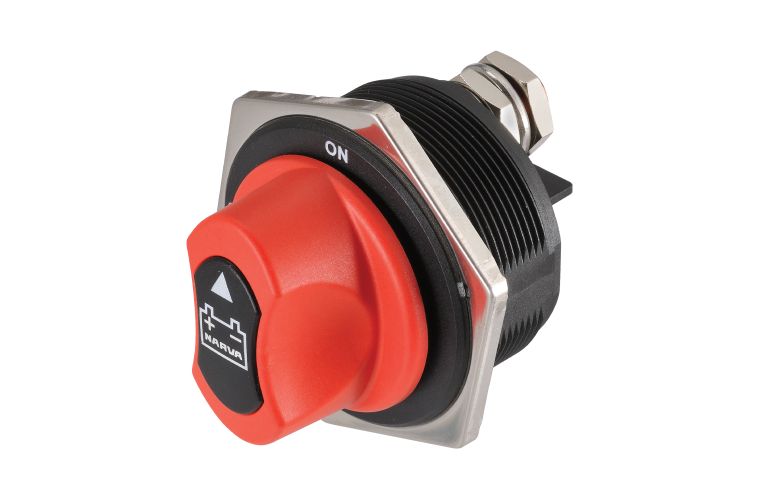

300A 'ROTARY' BATTERY MASTER SWITCH WITH REMOVABLE KEYED KNOB (Blister pack of 1)
Part No. 61045BL
A compact switch at just 55mm round, requiring a mounting opening of just 49.5mm diameter.
Featuresan easy turn knob, ideally suited for use with passenger cars, light trucks
and stationary engines.IP56 rated
A compact switch at just 55mm round, requiring a mounting opening of just 49.5mm diameter.
Featuresan easy turn knob, ideally suited for use with passenger cars, light trucks
and stationary engines.IP56 rated
Specifications
Technical Information
| CURRENT DRAW | 1000A at 12V for 30 seconds, 500A at 24V for 5 seconds, 300A at 12V for continuous load maximum, 150A at 24V for continuous load maximum |
|---|---|
| IP RATING | IP56 |
| SIZE | 55 x 74mm |
