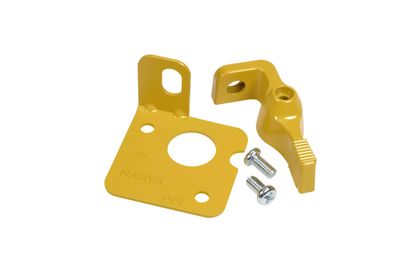

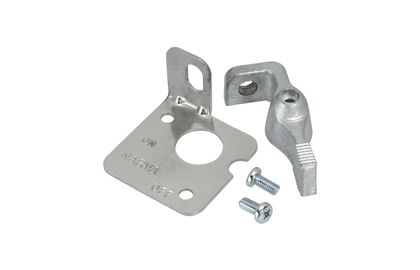

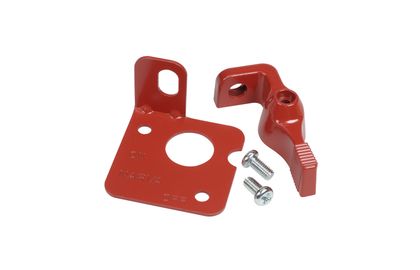

Battery Master Switch Lever Type
Part No. 61070

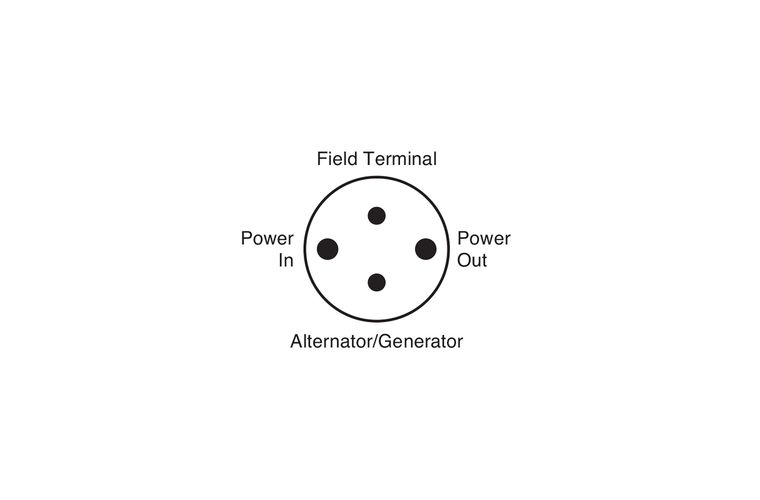

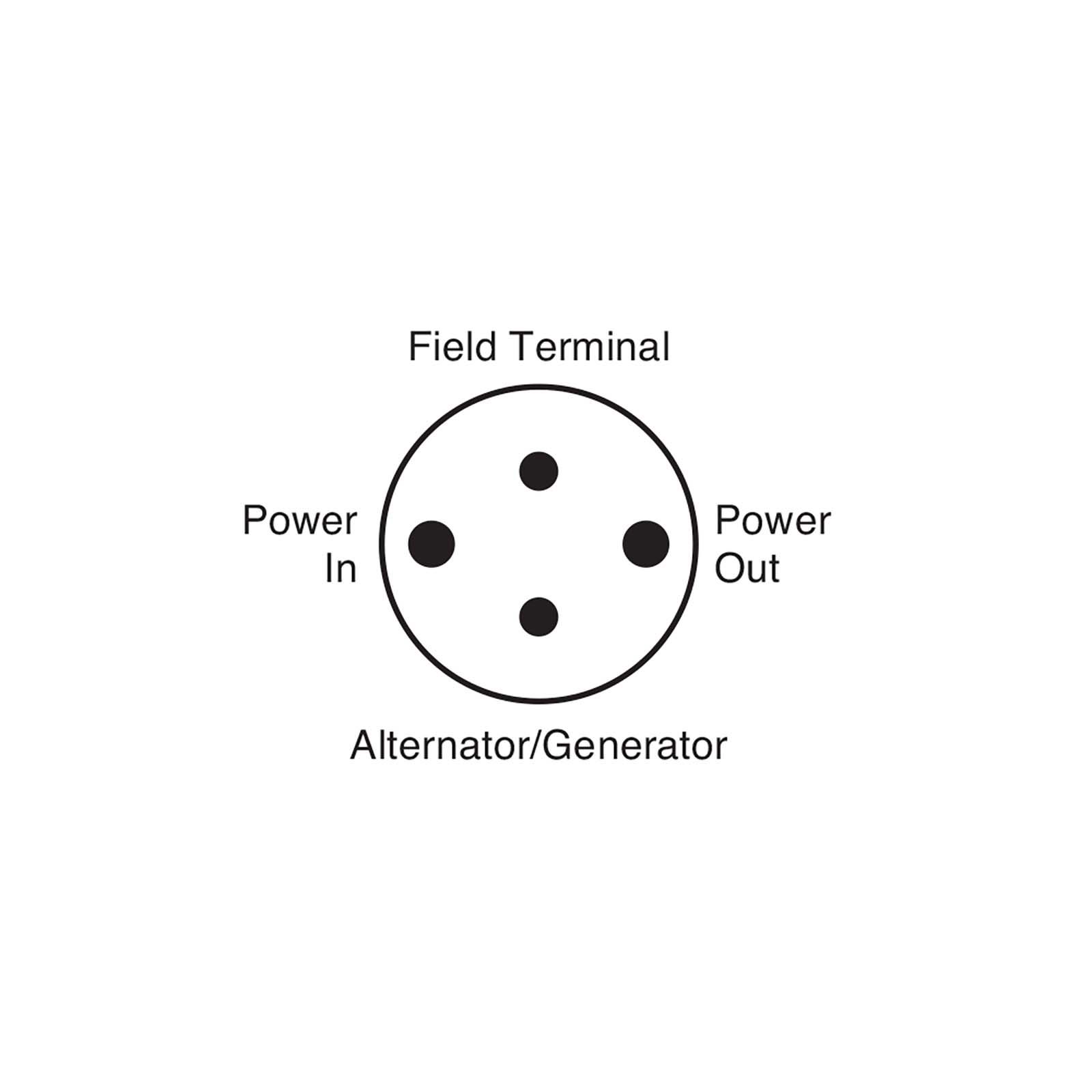

Master disconnect switch with provision for use with alternator/generator field circuit.
Mounting opening 19mm dia. Large Terminals: 1000A at 12V for 20 seconds 500A at 24V
for 20 seconds 180A at 12V continuous load max. 90A at 24V continuous load max. Small
Terminals: 20A at 12V continuous load max. 10A at 24V continuous load max.
Master disconnect switch with provision for use with alternator/generator field circuit.
Mounting opening 19mm dia. Large Terminals: 1000A at 12V for 20 seconds 500A at 24V
for 20 seconds 180A at 12V continuous load max. 90A at 24V continuous load max. Small
Terminals: 20A at 12V continuous load max. 10A at 24V continuous load max.
Specifications
Technical Information
| CURRENT DRAW | Large Terminals 1000A @ 12V for 20 secs 500A @ 24V for 20 secs 180A @ 12V continuous load max 90A @ 24V continuous load max Small Terminals 20A @ 12V continuous load max 10A @ 24V continuous load max |
|---|
Dimensions
