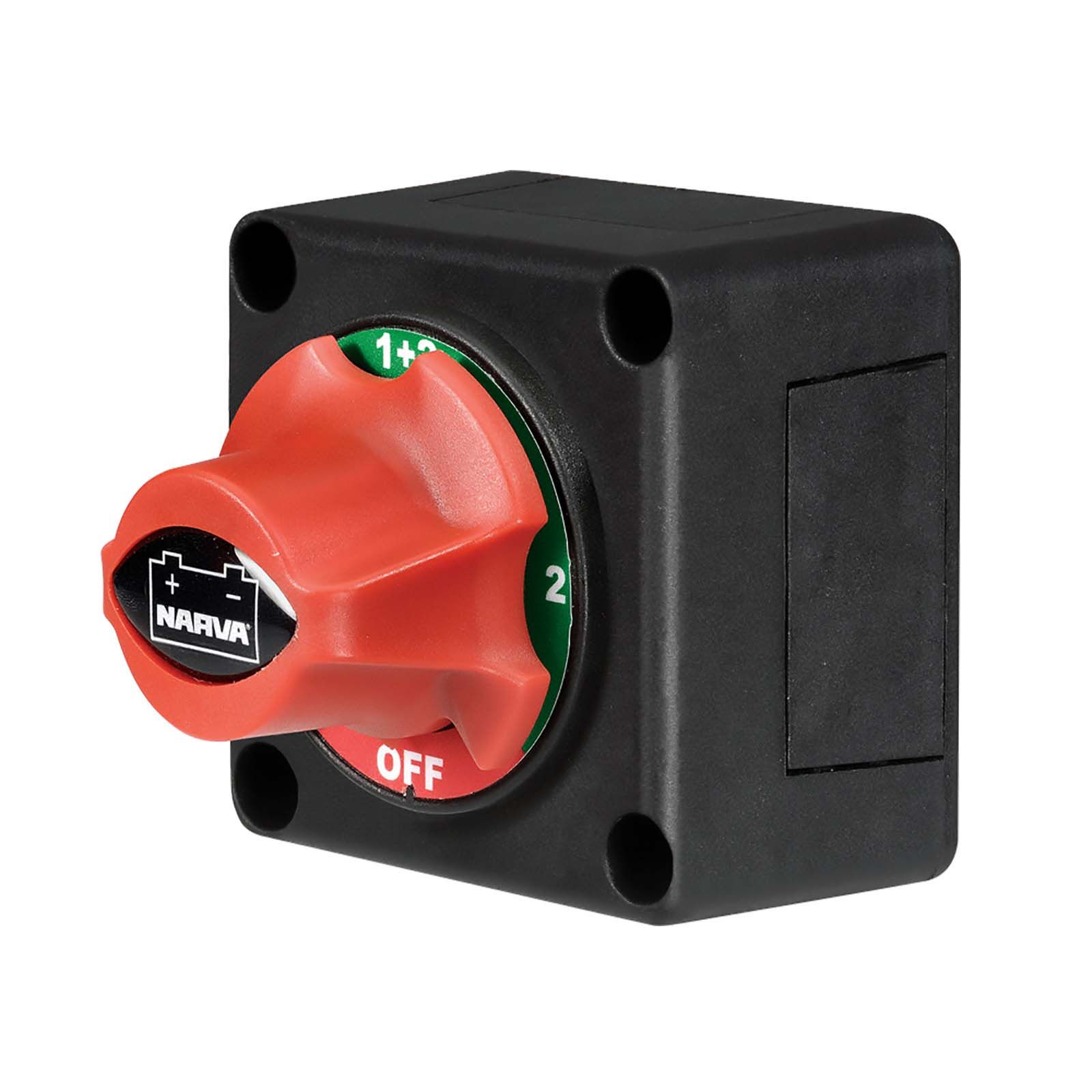

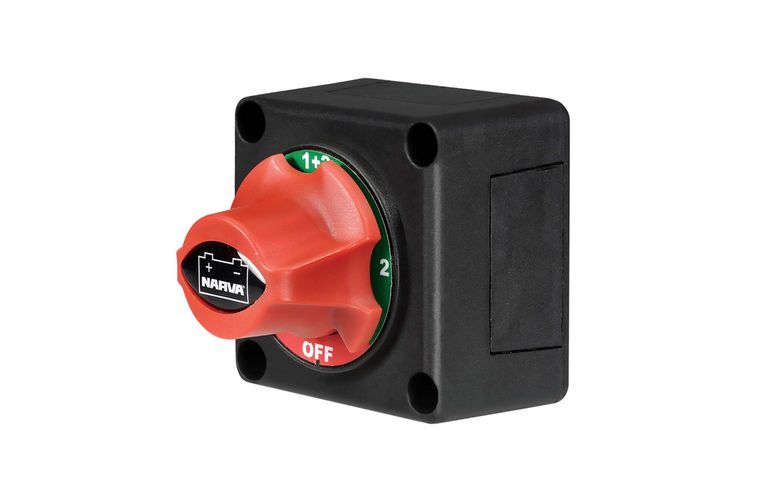

Battery Master Switch Rotary Style with 4 Positions
Part No. 61084BL
Features brass terminals and heavy-duty plastic construction making it ideal for marine
applications. Suitable for applications up to 48VDC 4 Position feature – Battery 1
and 2, Battery 1, Battery 2, Off. 1500A at 12V for 10 seconds 750A at 24V
for 10 seconds 300A at 12V continuous load maximum 150A at 24V continuous load maximum
Features brass terminals and heavy-duty plastic construction making it ideal for marine
applications. Suitable for applications up to 48VDC 4 Position feature – Battery 1
and 2, Battery 1, Battery 2, Off. 1500A at 12V for 10 seconds 750A at 24V
for 10 seconds 300A at 12V continuous load maximum 150A at 24V continuous load maximum
Specifications
Technical Information
| CURRENT DRAW | 1500A at 12V for 10 seconds. 750A at 24V for 10 seconds. 300A at 12V continuous load maximum. 150A at 24V continuous load maximum |
|---|---|
| LEDs | 129 |
