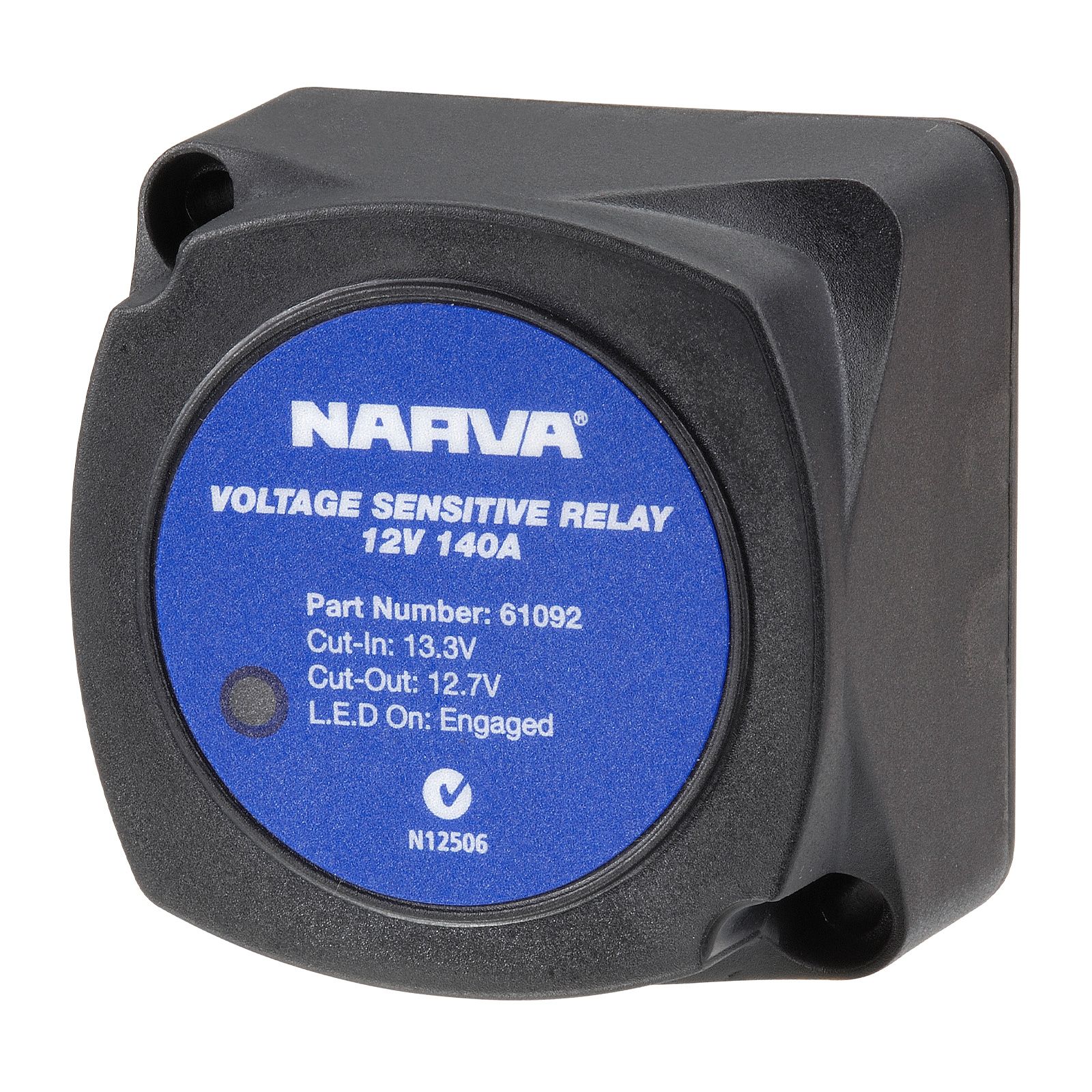

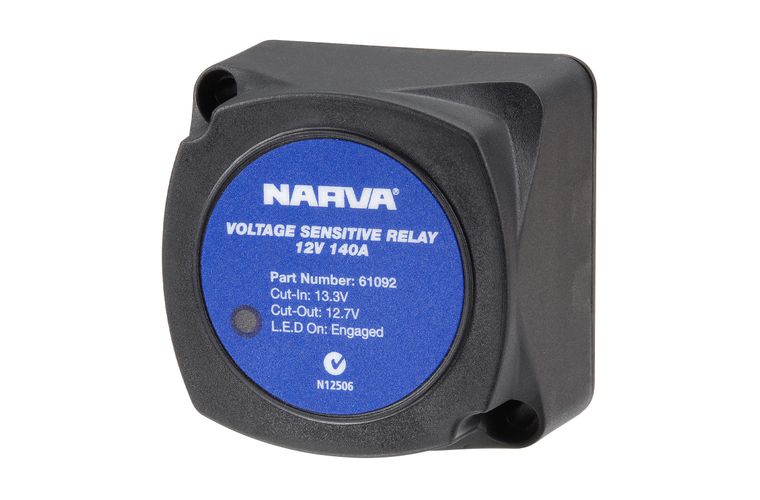

12 Volt 140 Amp Voltage Sensitive Relay
Part No. 61092BL
Automatically connects and disconnects an appliance or circuit at the preset input
voltage. Ideal for dual battery systems or to switch high current appliances. Features
surge protection, L.E.D indicator, silver tipped contacts for durability and
efficiency, with a weatherproof body (IP65). Cut-in: 13.3V Cut-out: 12.7V (5 second
delay) 160A at 12V for 60 seconds 140A at 12V continuous load maximum
Automatically connects and disconnects an appliance or circuit at the preset input
voltage. Ideal for dual battery systems or to switch high current appliances. Features
surge protection, L.E.D indicator, silver tipped contacts for durability and
efficiency, with a weatherproof body (IP65). Cut-in: 13.3V Cut-out: 12.7V (5 second
delay) 160A at 12V for 60 seconds 140A at 12V continuous load maximum
Specifications
Technical Information
| CURRENT DRAW | Cut-in: 13.3V Cut-out: 12.7V (5 second delay) 160A at 12V for 60 seconds 140A at 12V continuous load maximum |
|---|---|
| IP RATING | IP65 |
Dimensions
