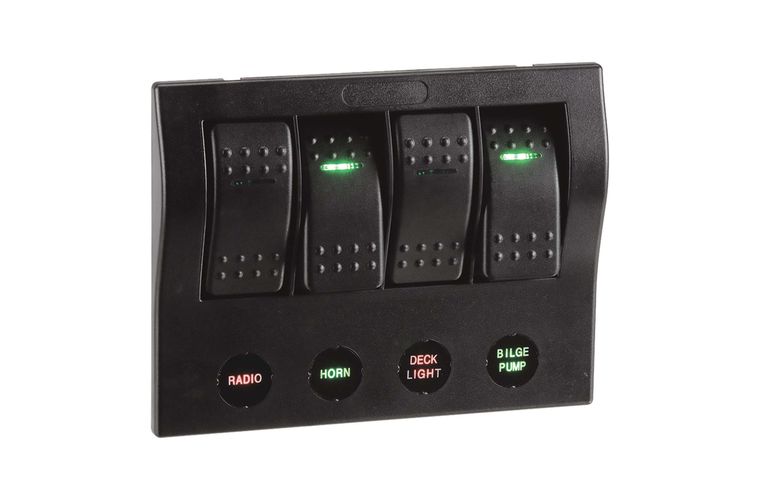

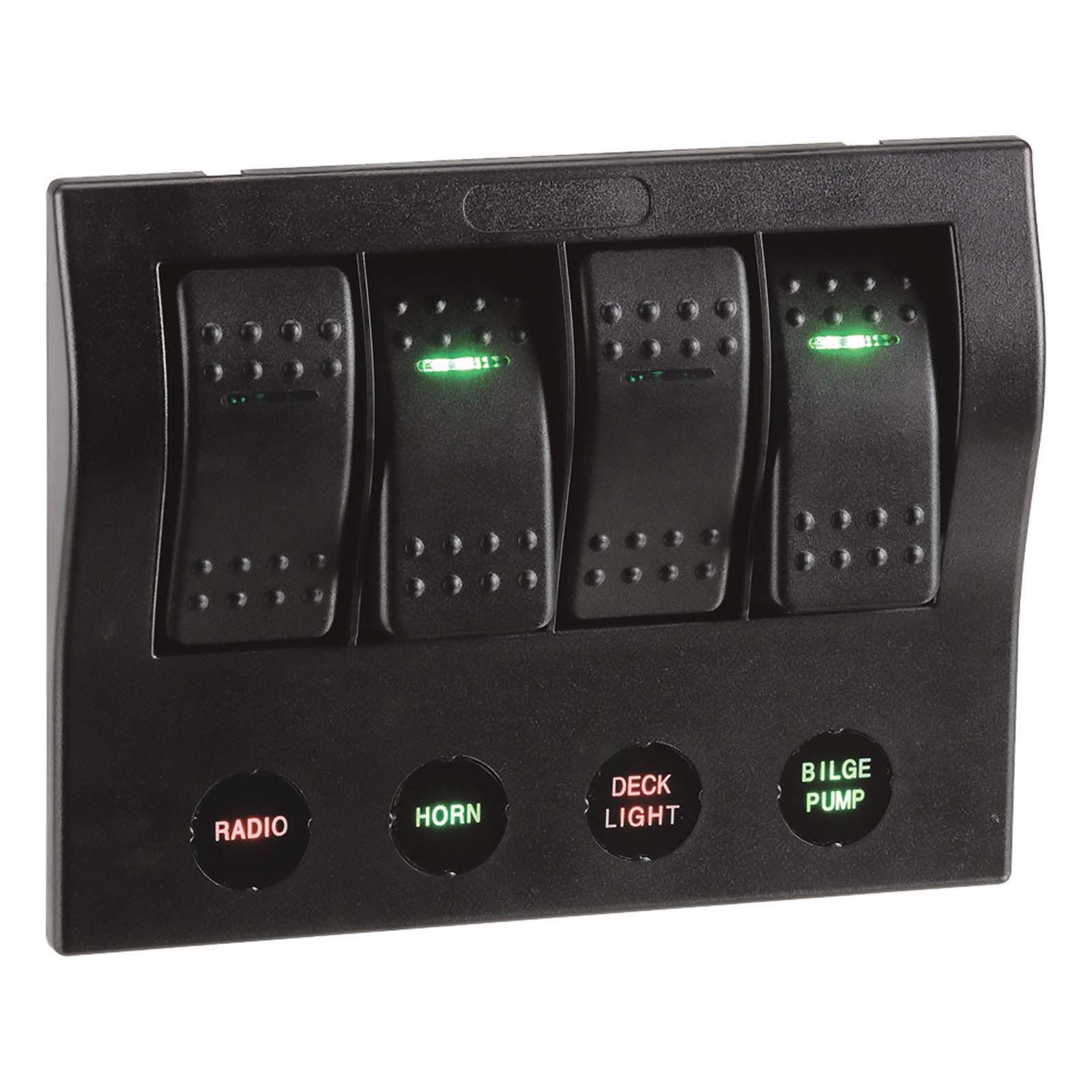

4-Way LED Switch Panel with Circuit Breaker Protection
Part No. 63191
SPST, ‘On’ illumination Amperage rating 20A at 12V, 10A at 24V Mounting openings:
108 x 83mm Overall Panel Dimensions: 130 x 100mm Circuit Breakers: 2 x 10A (P/No.
55310) 2 x 15A (P/No. 55315)
SPST, ‘On’ illumination Amperage rating 20A at 12V, 10A at 24V Mounting openings:
108 x 83mm Overall Panel Dimensions: 130 x 100mm Circuit Breakers: 2 x 10A (P/No.
55310) 2 x 15A (P/No. 55315)
Specifications
Technical Information
| CURRENT DRAW | Amperage rating 20A at 12V, 10A at 24V |
|---|---|
| LEDs | 38 |
| COMPRISES | 3 Off/On switches and 1 Momentary (On) switch.; Symbol and switch illuminate green when ‘On’ and symbol illuminates red when ‘Off’.; 60 piece symbol set for RV and Marine applications; |
