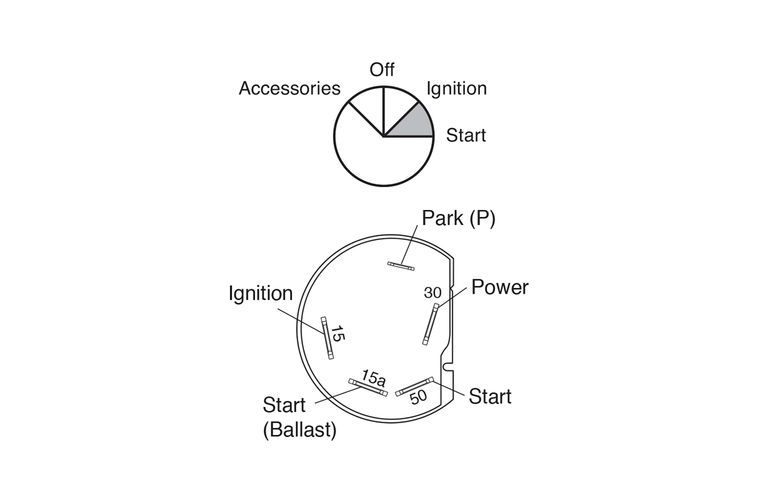

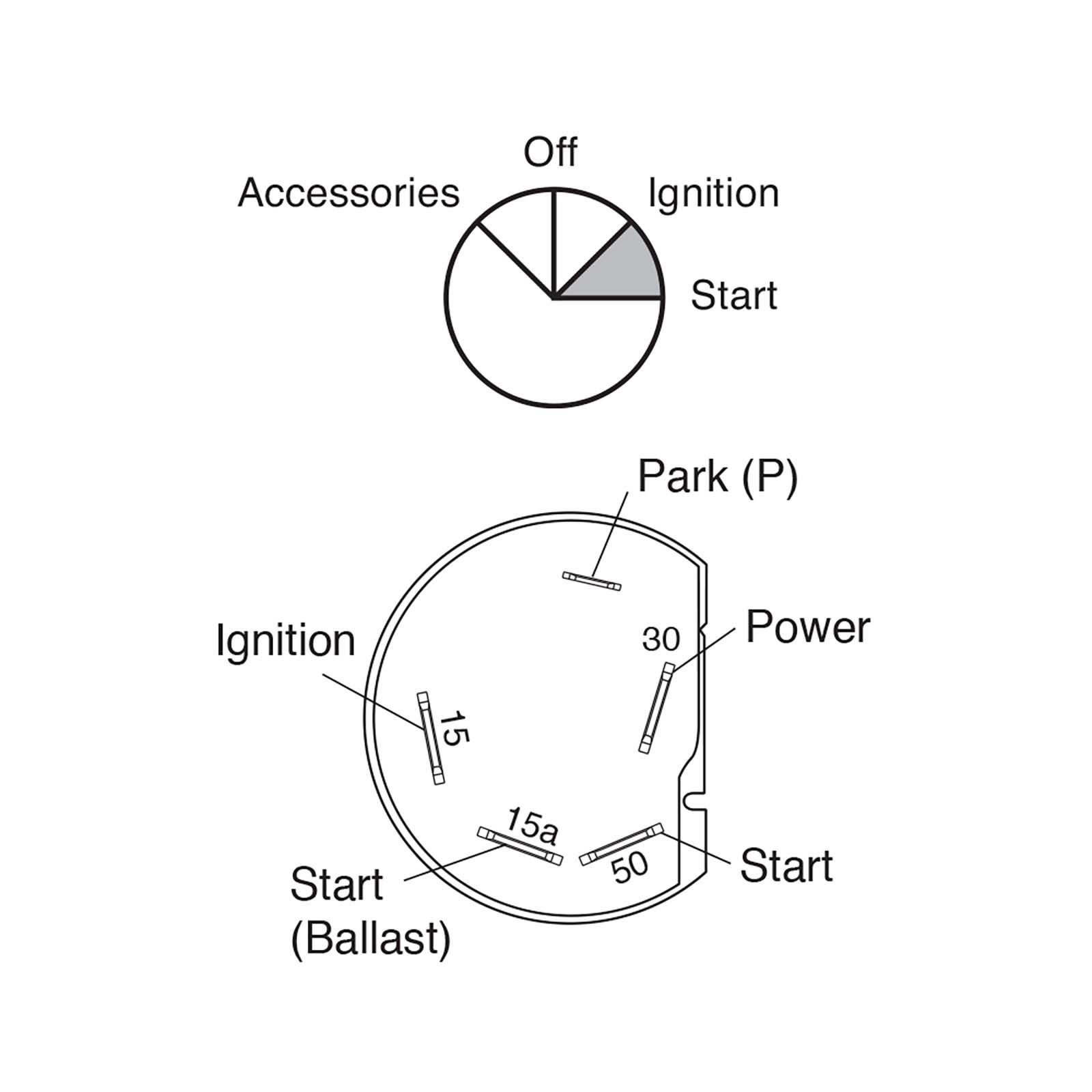

4 Position Ignition Switch
Part No. 64020
Plastic construction with push on terminals Spring return action for start. Supplied
with two encapsulated keys Mounting opening: 20mm dia. Amperage ratings at 12V,
20A Accessories, 30A Ignition, 25A Start
Plastic construction with push on terminals Spring return action for start. Supplied
with two encapsulated keys Mounting opening: 20mm dia. Amperage ratings at 12V,
20A Accessories, 30A Ignition, 25A Start
Specifications
Technical Information
| CURRENT DRAW | Amperage ratings at 12V, 20A Accessories, 30A Ignition, 25A Start |
|---|---|
| LEDs | 65 |
Dimensions
