UltraFlash Heavy-Duty Solid State Electronic Flasher with Audible Signal
Part No. 68280
This heavy-duty flasher operates at 12 or 24V and provides continuous service rated for 35A load or
16x21 watt globes. The no-load circuitry makes UltraFlash ideal for use with LED. Solid state
electronics are sealed in a compound which readily dissipates heat from the rugged die-cast
aluminium housing. A unique folding plug adapts to existing connections and the plug is bi-polar for
reverse polarity operations.
This heavy-duty flasher operates at 12 or 24V and provides continuous service rated for 35A load or
16x21 watt globes. The no-load circuitry makes UltraFlash ideal for use with LED. Solid state
electronics are sealed in a compound which readily dissipates heat from the rugged die-cast
aluminium housing. A unique folding plug adapts to existing connections and the plug is bi-polar for
reverse polarity operations.
Specifications
Technical Information
| LEDs | 0 |
|---|---|
| OPERATING TEMPERATURE | -40° to +82° Celsius |
| OTHER | Rated for a 35A load at 12 and 24 volts |
| COMPRISES | Rated for a 35A load at 12 and 24 volts; Ideal for use with incandescent or L.E.D Lighting; No frequency or electro magnetic interference; Built in short circuit/overload protection; Rugged compact die-cast housing; |

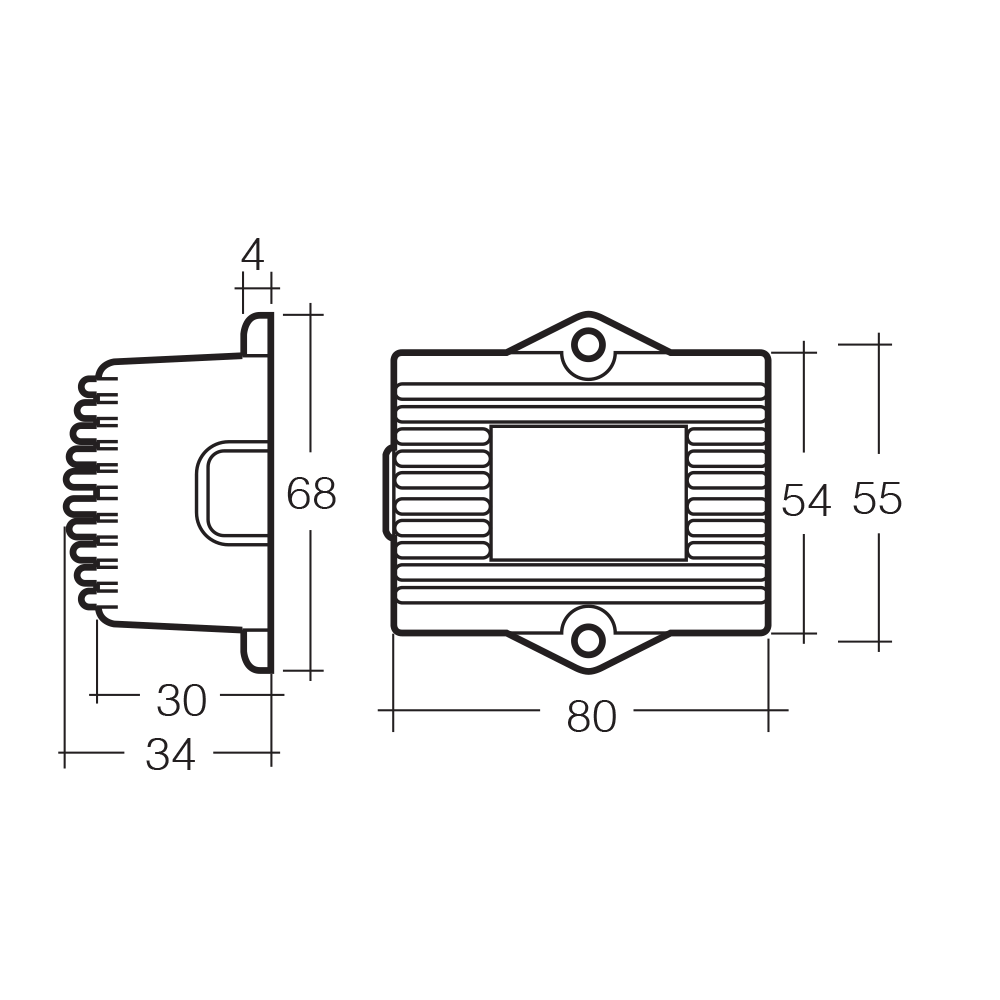

Dimensions
