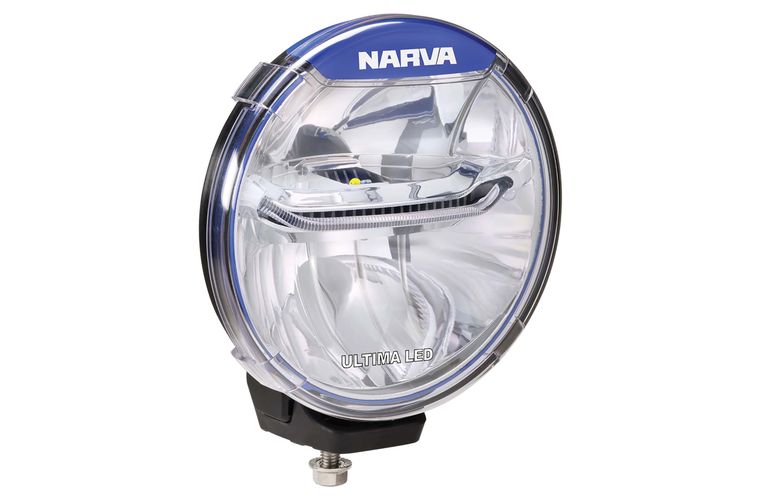

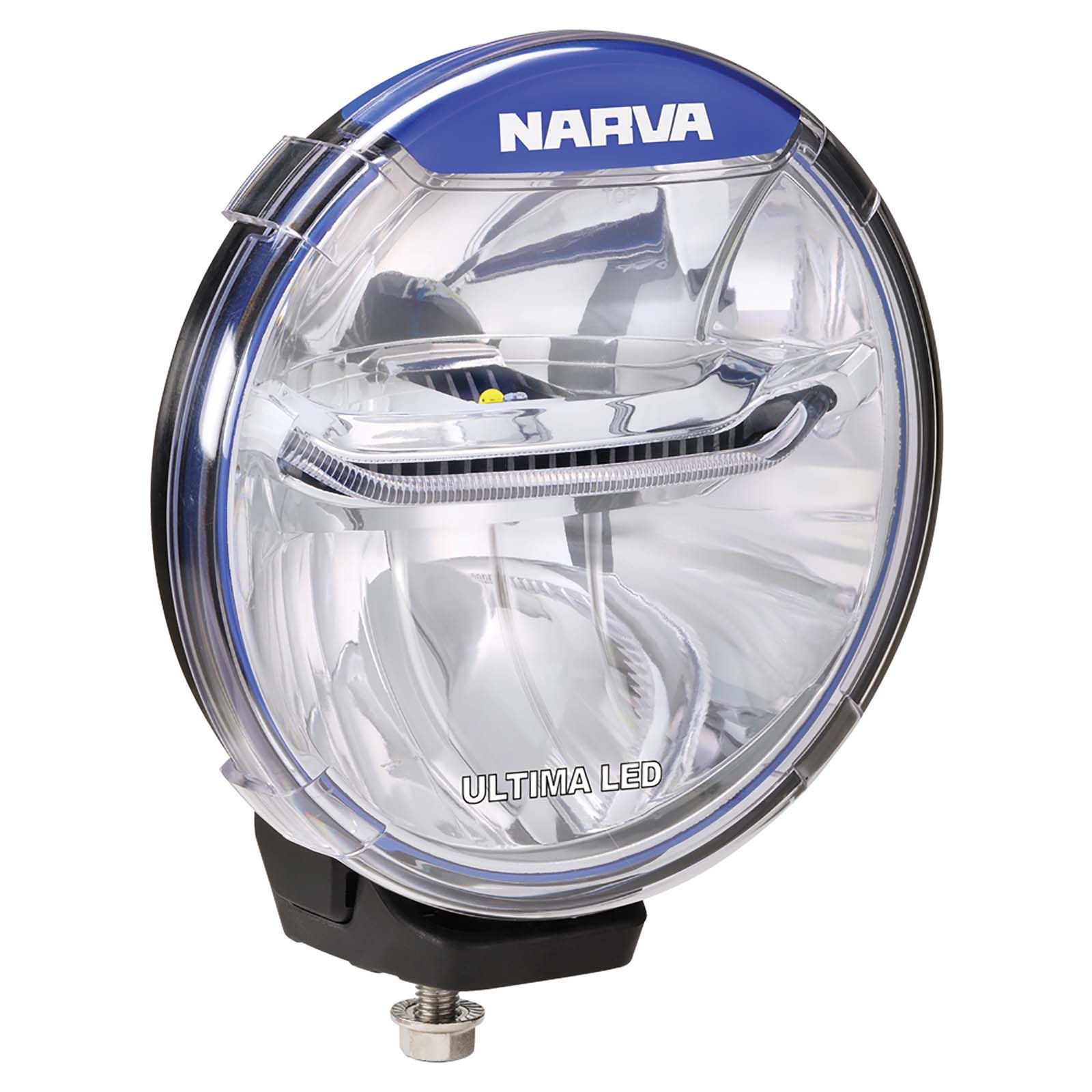

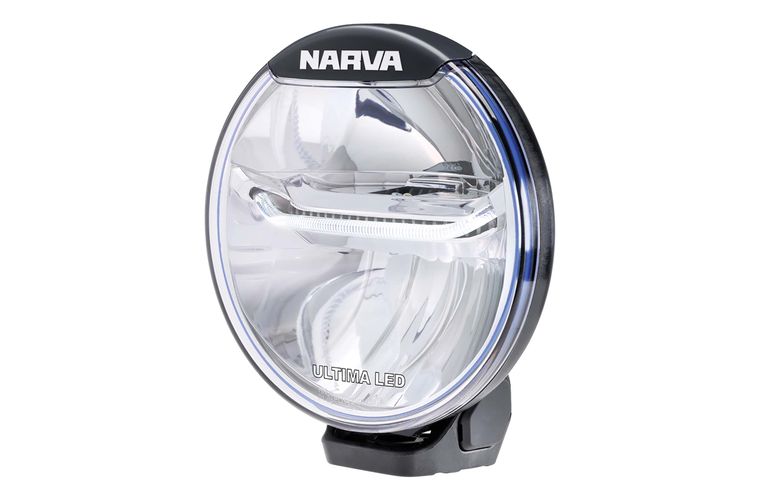

Ultima 175 LED Broad Beam Driving Light
Part No. 71638
9-33V Enhanced Optic Driving Light - 3800 Lumens. Premium styled driving lights utilising the latest
in enhanced free form 'Optic Drive™' LED technology to capture and harness the light output for
maximum performance. Specifically designed to endure the harshest Australian conditions, they
produce a H.I.D like output with all the benefits of LED. The Enhanced Optic range transform
everyday 4x4s and SUVs into luxurious escape vehicles
9-33V Enhanced Optic Driving Light - 3800 Lumens. Premium styled driving lights utilising the latest
in enhanced free form 'Optic Drive™' LED technology to capture and harness the light output for
maximum performance. Specifically designed to endure the harshest Australian conditions, they
produce a H.I.D like output with all the benefits of LED. The Enhanced Optic range transform
everyday 4x4s and SUVs into luxurious escape vehicles
Specifications
Technical Information
| INPUT VOLTAGE RANGE | 9-33V |
|---|---|
| CURRENT DRAW | 3A at 12V |
| POWER | 30 Watts |
| LEDs | 2x 15W XHP50.2 Cree® LEDs |
| LUMENS | 3,800 Raw / 1,663 Effective |
| IP RATING | IP67 |
| OPERATING TEMPERATURE | -10°C to 65°C |
| COLOUR TEMPERATURE | 5000°K |
| SIZE | 175mm dia. |
| WEIGHT | 1.1kg |
| ECE | ECE R10 |
| OTHER | Active Thermal Management System (ATMS) |
| OTHER | 1 Lux at 620m |

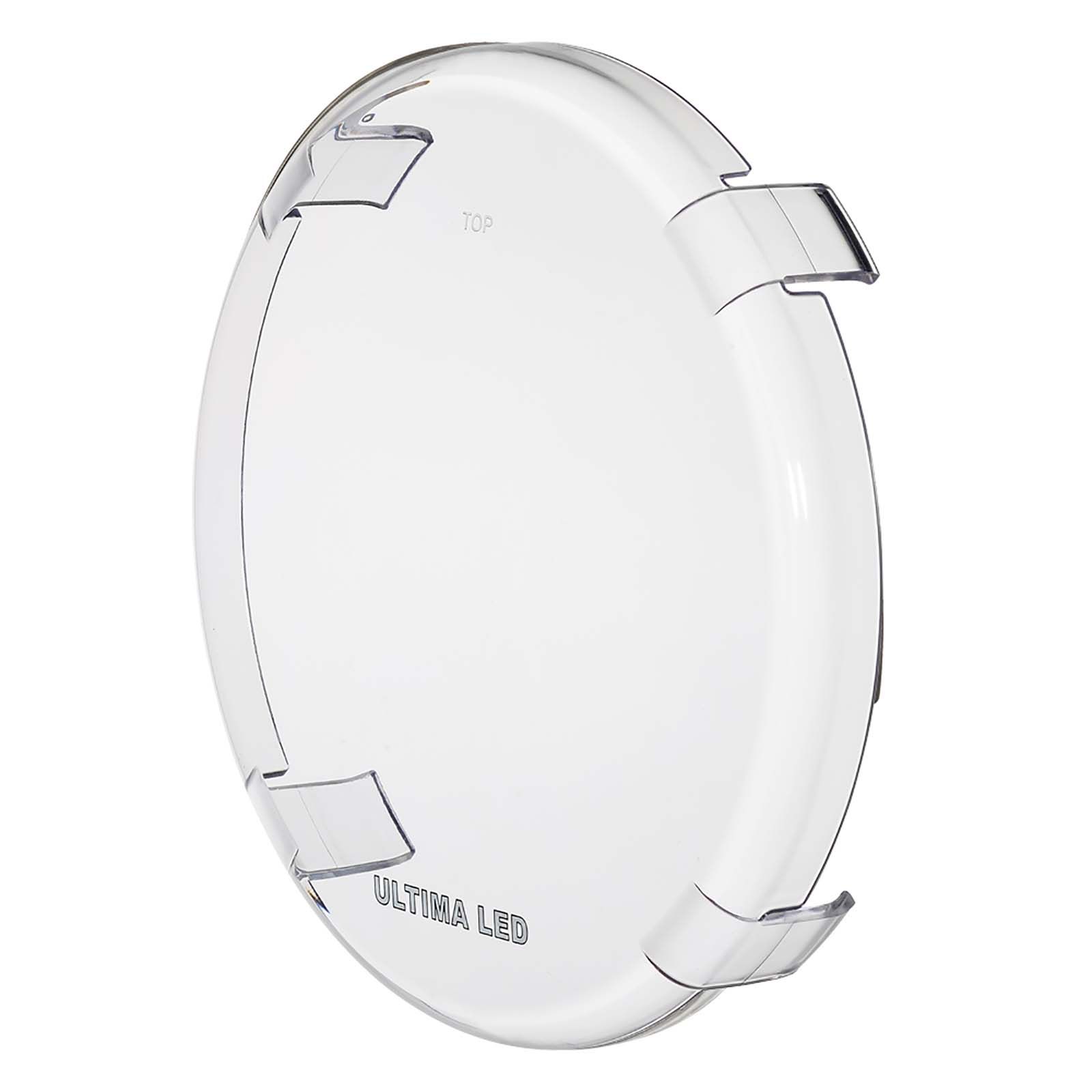

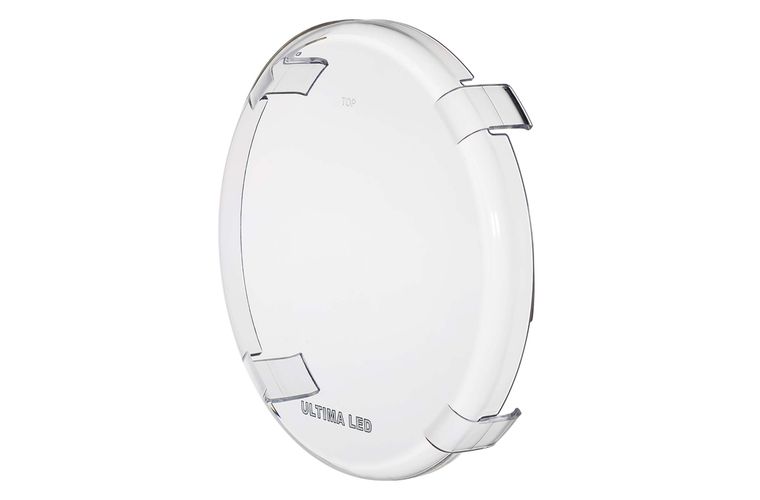

| COMPRISES | 1x Broad Beam L.E.D Driving Light; 1x Hard Coated Polycarbonate Lens Protector; 1x Stainless Steel Mounting Hardware Kit; 1x Cable with Pre-wired DT Connector; 1x Additional Interchangeable Black Glare Shield Cap; 1x Instructional Booklet; |
