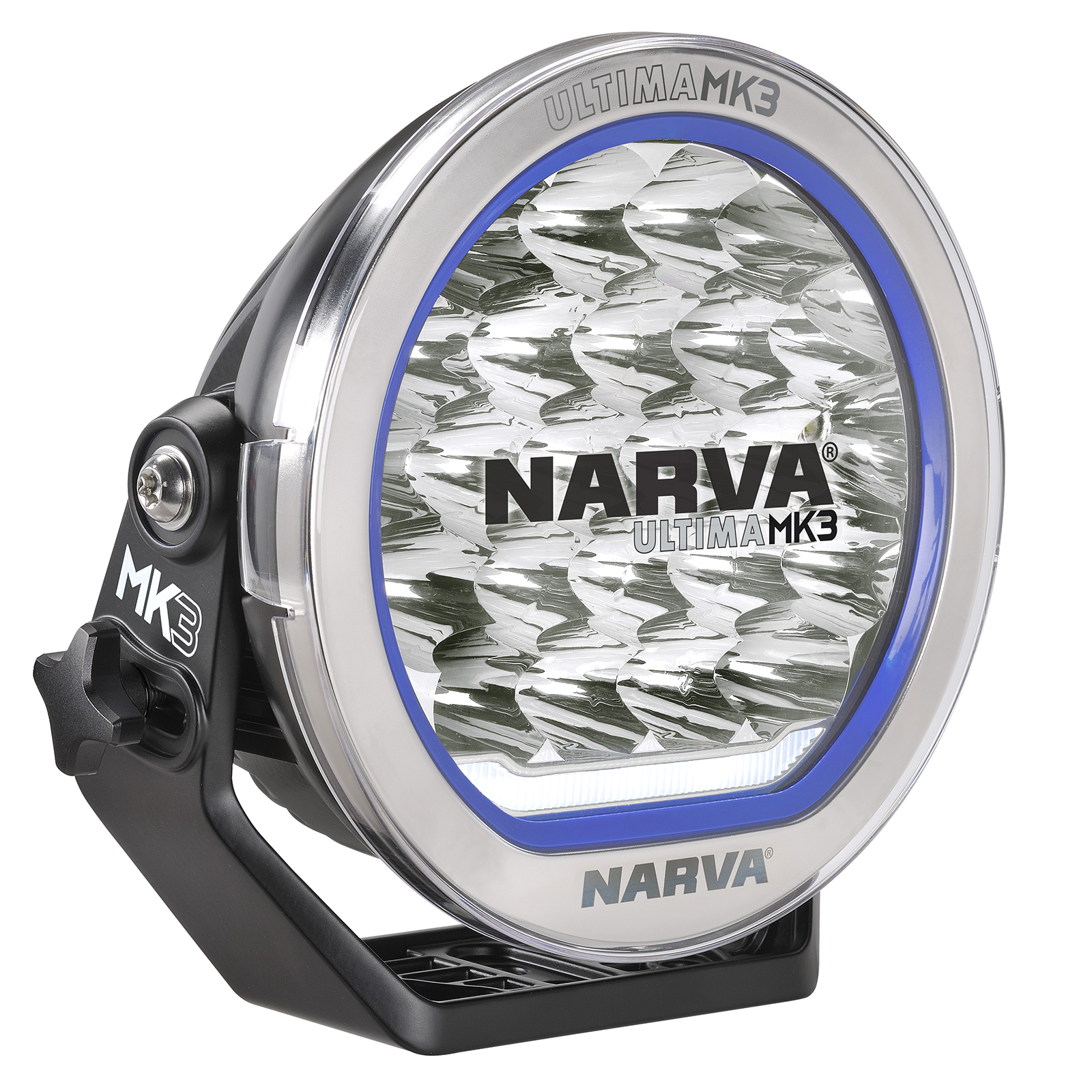

ULTIMA MK3 180 LED DRIVING LIGHT - HYBRID BEAM

Part No. 71732
Ideal for vehicles with limited bullbar space. Provides as much output as most 9" driving lights. Up to 20% more output than the MK2. Compatible with Ultima Connect+ Controller. 500mm Flying lead with pre-wired 6 pin Deutsch® connector. Redeem black bezel if required.
Where to Buy
Ideal for vehicles with limited bullbar space. Provides as much output as most 9" driving lights. Up to 20% more output than the MK2. Compatible with Ultima Connect+ Controller. 500mm Flying lead with pre-wired 6 pin Deutsch® connector. Redeem black bezel if required.

Features

The Future of Vision

Up to 20% brighter with 100% more control, the NEW 215 Spot Beam offers increased distance, while the upgraded Hybrid Beam pattern delivers enhanced width.

Engineered for durability

The pressure die-cast housing is engineered to last no matter the conditions. It is fully sealed with an IP68 + IP69K rating and features an overmolded Deutsch® connector on a flying lead. The UV-resistant hard-coating and virtually unbreakable polycarbonate lenses and lens protectors ensure that the lights maintain their appearance over time, preventing yellowing and resisting damage from stones and other debris.

Engineered for control

The use of the Ultima Connect+ Controller allows total control over beam shape. Users can select between more distance, more spread, or both, depending on their driving conditions. It also enables independent control of the Hybrid and Spot beams, as well as Ultima Light bars, to avoid road sign flare.

Engineered for
you

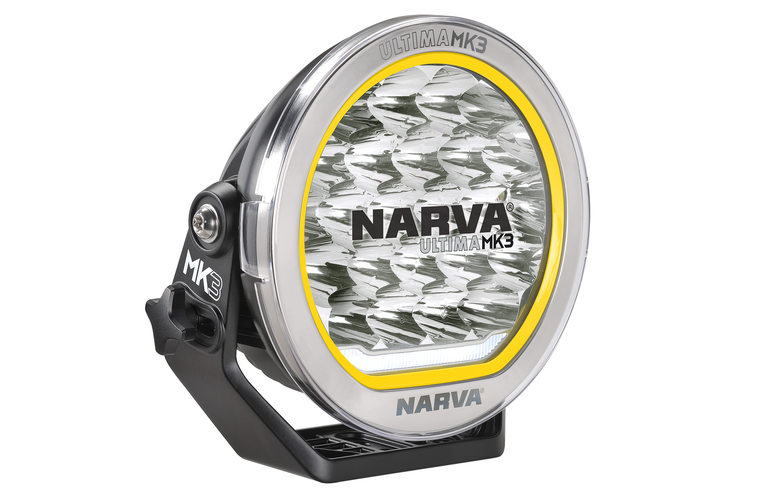

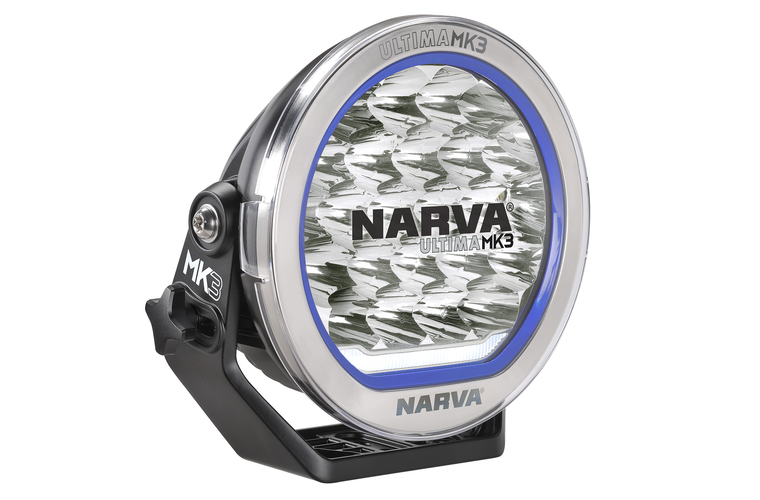

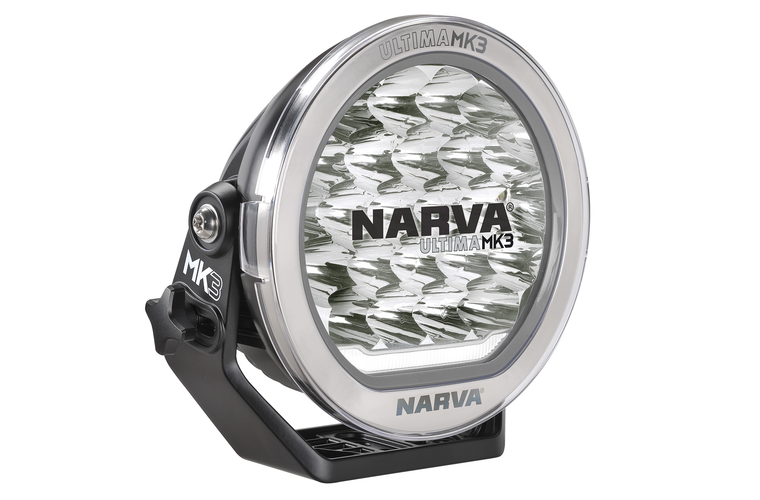

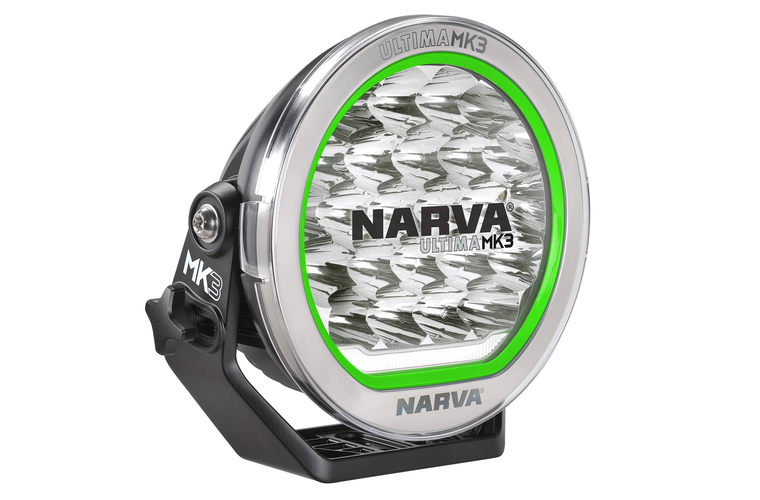

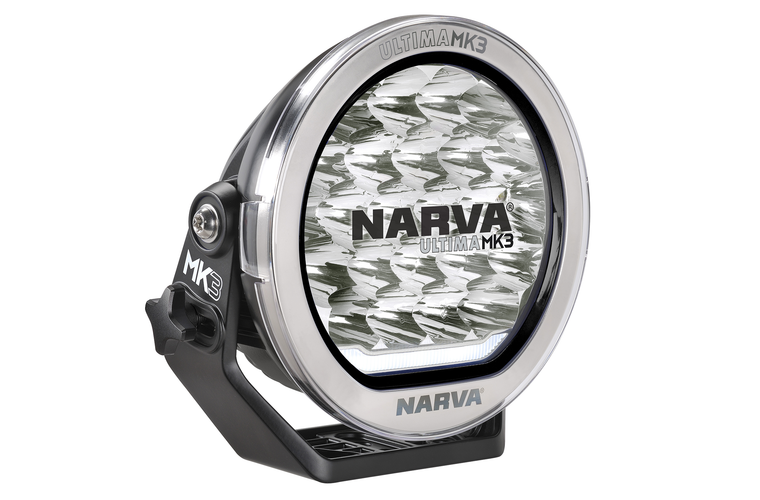

Customize the lamps to suit any vehicle by choosing from Satin or Black bezels and any one of seven color trims—Narva Blue, Yellow, Red, Black, Electric Blue, Hyper Green, and Slate Grey—all at no extra charge via redemption. Additionally, select either Stealth or Selective Yellow lens covers.

NO Fault Warranty

This warranty covers not only product defects, but also impact damage, meaning even if the vehicle is in an accident, the lights are covered by a replacement warranty. This also covers chemical and UV-related damage.

Specifications

Technical Information
INPUT VOLTAGE RANGE9-33V
CURRENT DRAW9.45A at 13.5V
LEDs 5W Osram
LUMENS11,261Lm/ 12,463Lm (Boost)
IP RATINGIP68 + IP69K
OPERATING TEMPERATURE-40°C to +65°C
COLOUR TEMPERATURE5700°K
Beam Pattern
Dimensions

Downloads

Get the latest information

ULTIMA MK3 180 LED DRIVING LIGHT - HYBRID BEAM

Download Instructions
