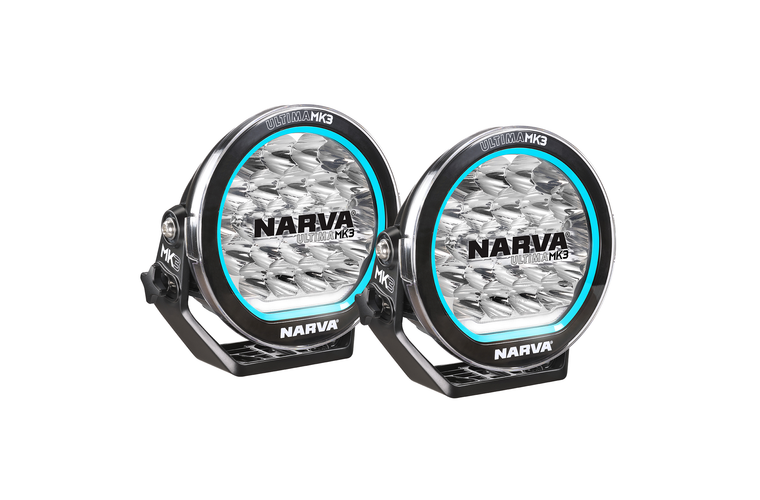

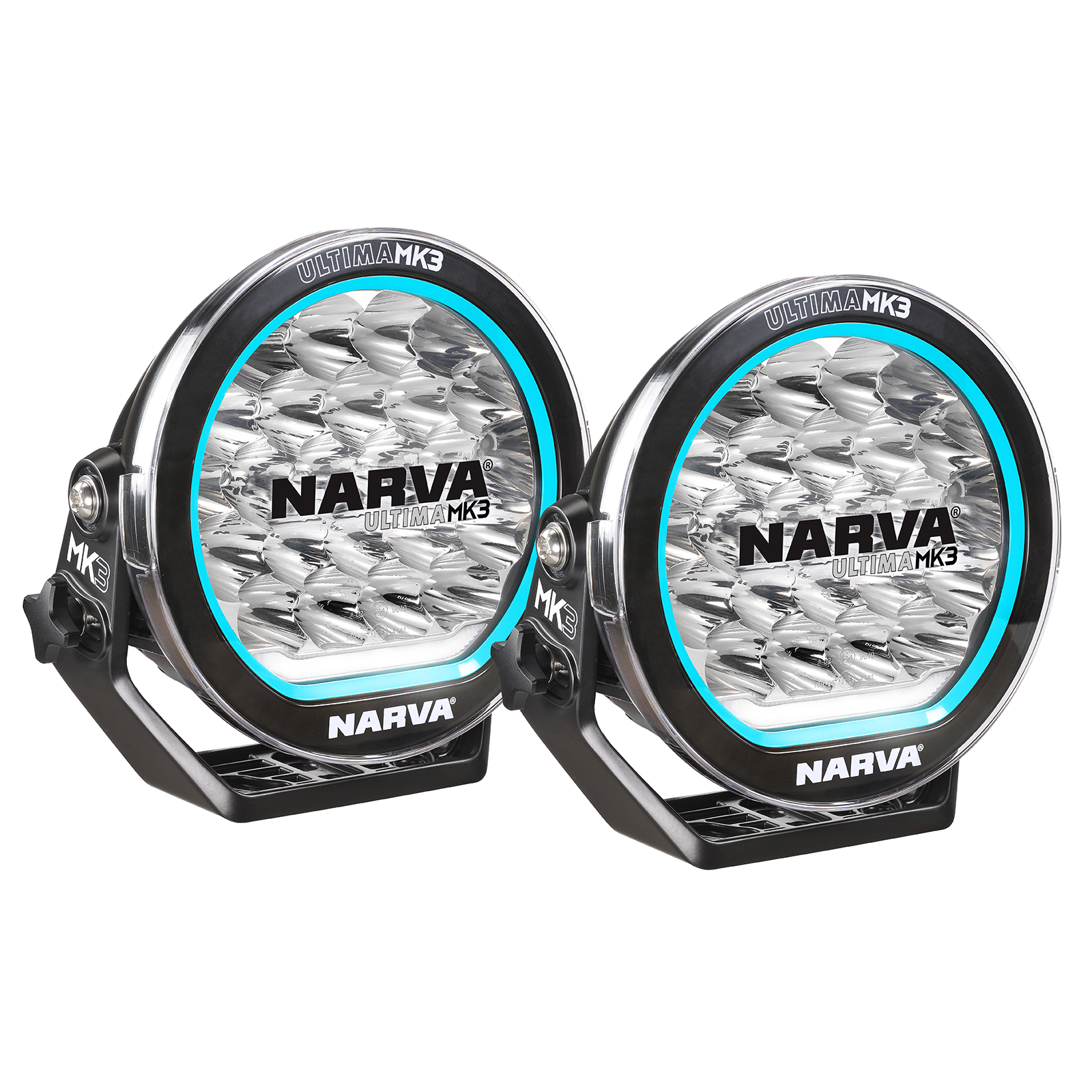

ULTIMA MK3 180 LED DRIVING LIGHTS KIT - HYBRID BEAM
Part No. 71734
RRP $1,299.00 AUD Inc GST
RRP $1,299.00 AUD Inc GST
Ideal for vehicles with limited bullbar space. Provides as much output as most 9" driving lights. Up
to 20% more output than the MK2. Compatible with Ultima Connect+ Controller. 500mm Flying lead with
pre-wired 6 pin Deutsch® connector. Redeem black bezel if required.
Ideal for vehicles with limited bullbar space. Provides as much output as most 9" driving lights. Up
to 20% more output than the MK2. Compatible with Ultima Connect+ Controller. 500mm Flying lead with
pre-wired 6 pin Deutsch® connector. Redeem black bezel if required.
Features
The Future of Vision
Up to 20% brighter with 100% more control, the NEW 180 Spot Beam offers increased distance, while the upgraded Hybrid Beam pattern delivers enhanced width.
Engineered for durability

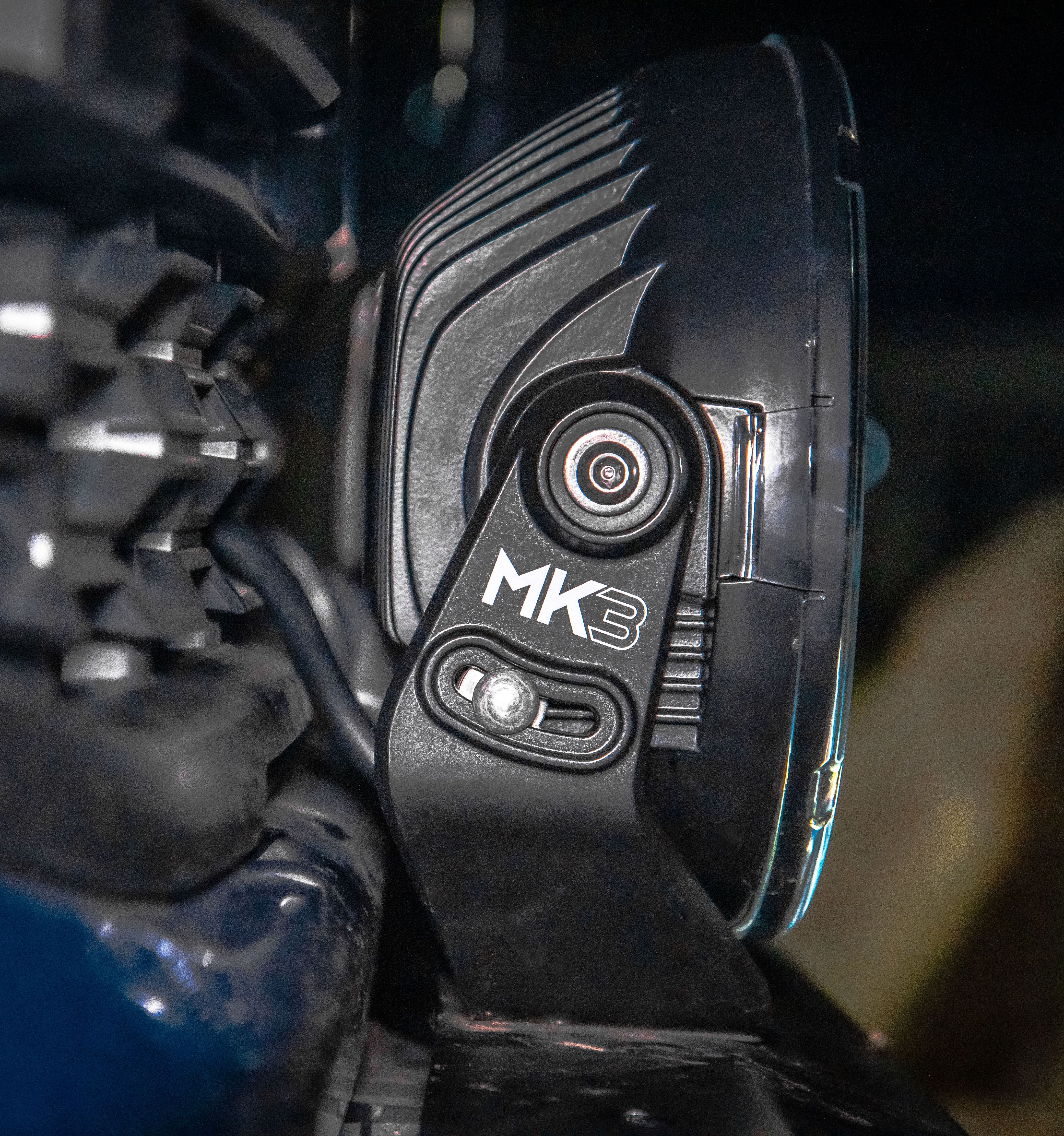

The pressure die-cast housing is engineered to last no matter the conditions. It is fully sealed with an IP68 + IP69K rating and features an overmolded Deutsch® connector on a flying lead. The UV-resistant hard-coating and virtually unbreakable polycarbonate lenses and lens protectors ensure that the lights maintain their appearance over time, preventing yellowing and resisting damage from stones and other debris.
Engineered for control

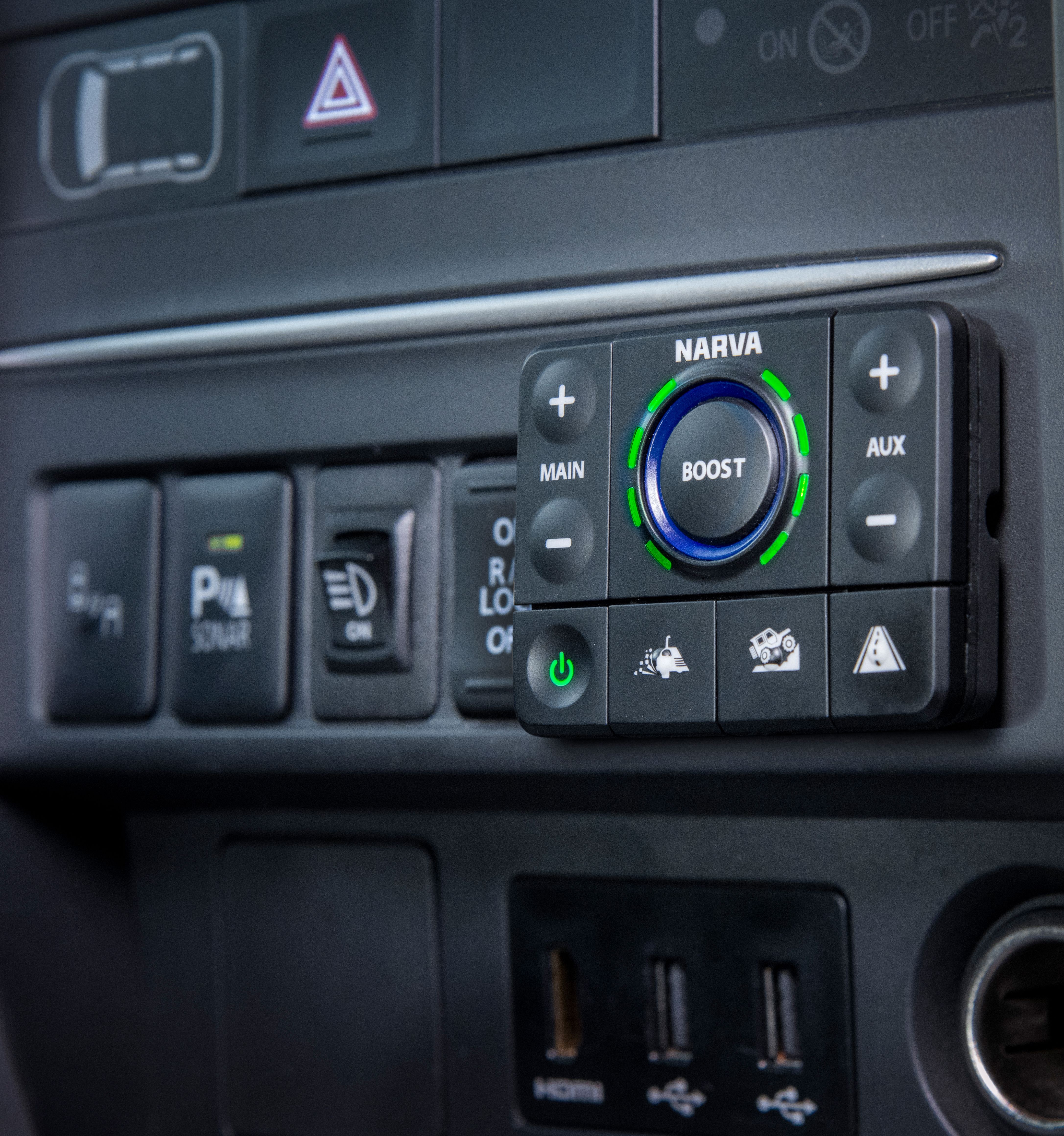

The use of the Ultima Connect+ Controller allows total control over beam shape. Users can select between more distance, more spread, or both, depending on their driving conditions. It also enables independent control of the Hybrid and Spot beams, as well as Ultima Light bars, to avoid road sign flare.
Engineered for
you

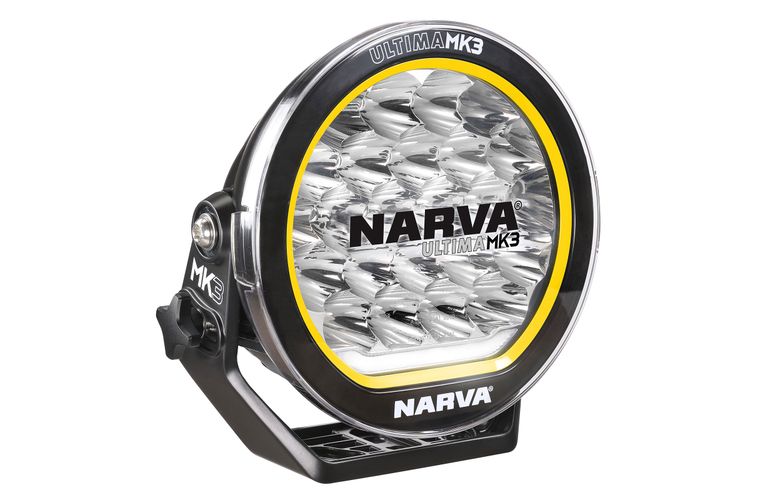

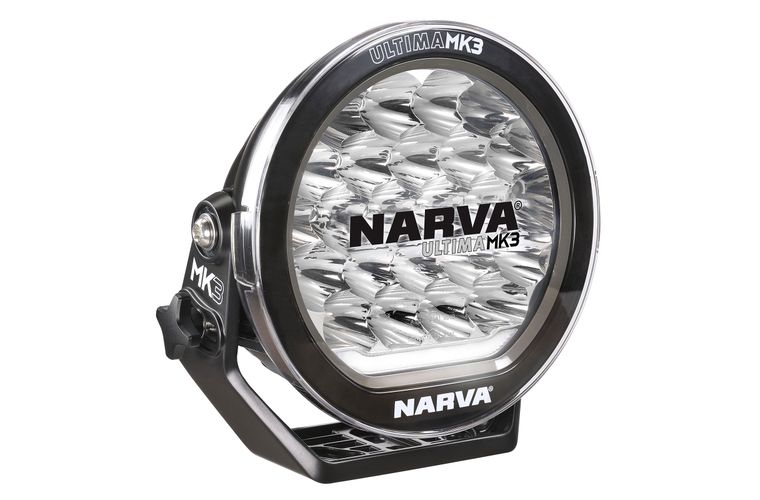

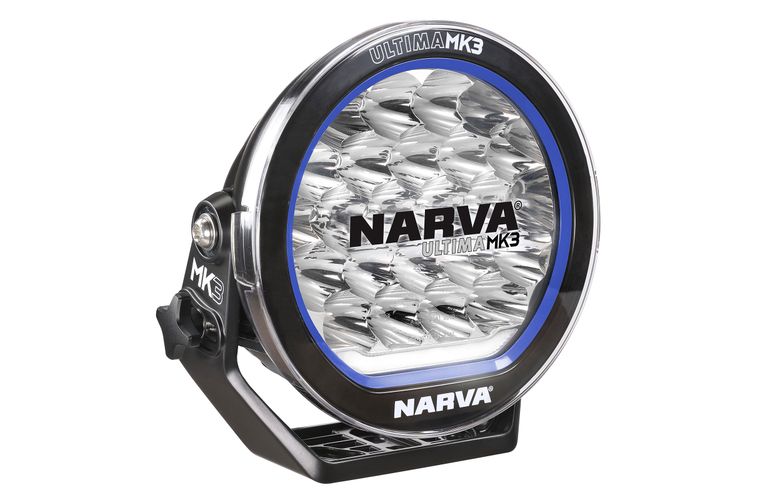

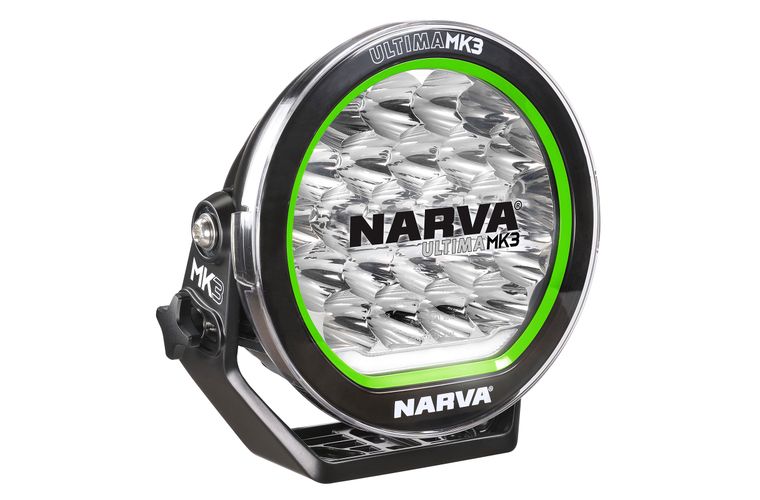

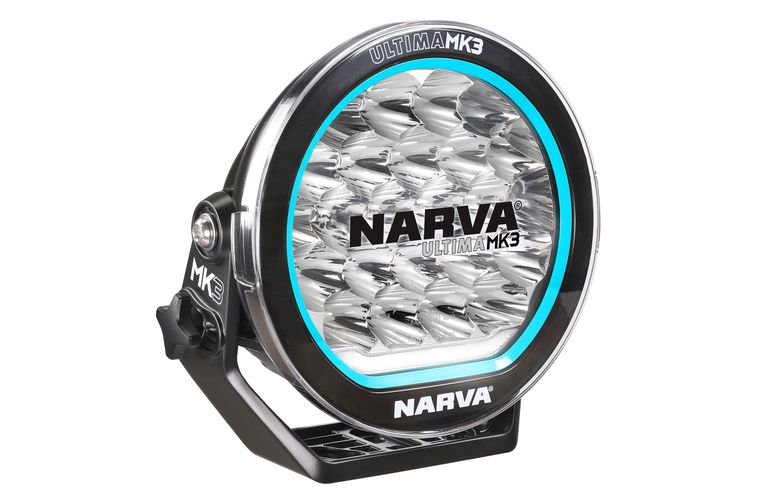

Customize the lamps to suit any vehicle by choosing from Satin or Black bezels and any one of seven color trims—Narva Blue, Yellow, Red, Black, Electric Blue, Hyper Green, and Slate Grey—all at no extra charge via redemption. Additionally, select either Stealth or Selective Yellow lens covers.
NO Fault Warranty
This warranty covers not only product defects, but also impact damage, meaning even if the vehicle is in an accident, the lights are covered by a replacement warranty. This also covers chemical and UV-related damage.Specifications
Technical Information
| INPUT VOLTAGE RANGE | 9-33V |
|---|---|
| CURRENT DRAW | 18.9A at 13.5V |
| LEDs | 5W Osram |
| LUMENS | 11,261Lm/12,463Lm (Boost) |
| IP RATING | IP68 + IP69K |
| OPERATING TEMPERATURE | -40°C to +65°C |
| COLOUR TEMPERATURE | 5700°K |
Beam Pattern
Dimensions
Downloads
Get the latest information
ULTIMA MK3 180 LED DRIVING LIGHTS KIT - HYBRID BEAM
Download InstructionsMultimedia
