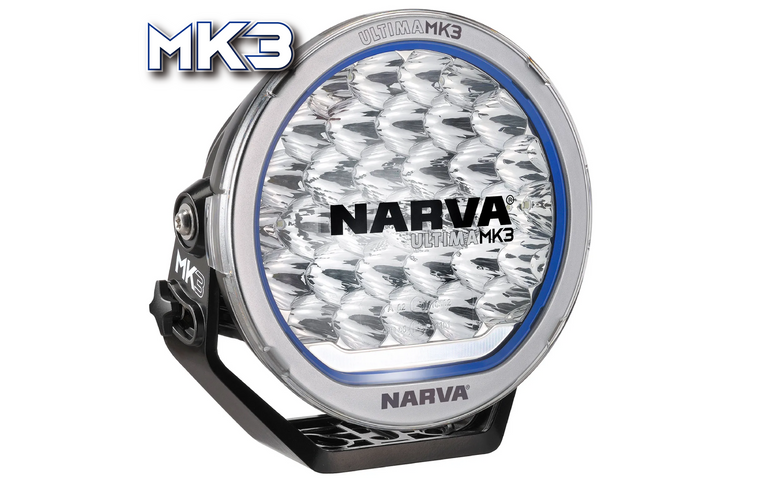

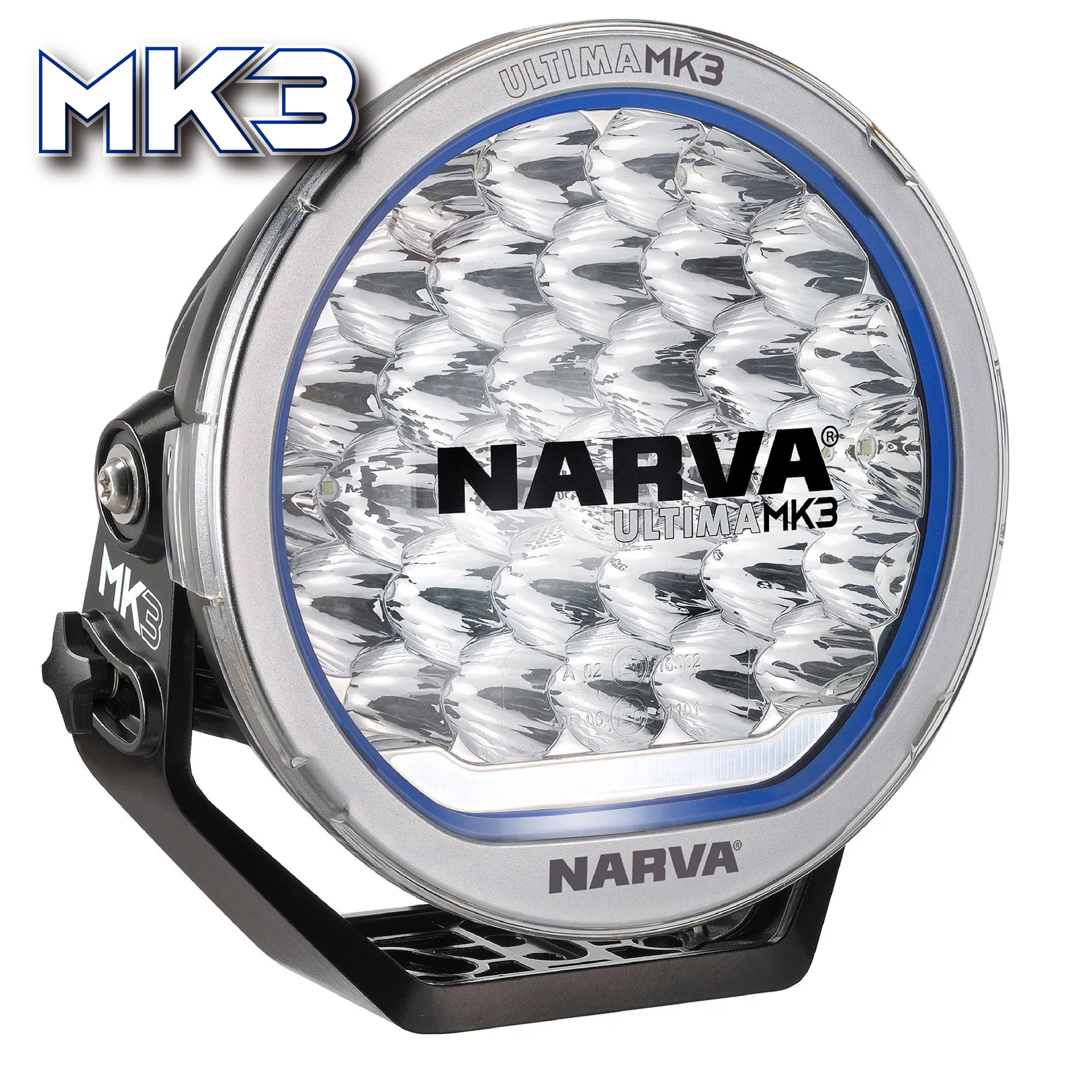

ULTIMA MK3 215 LED DRIVING LIGHT– HYBRID BEAM
Part No. 71742
Welcome to the future of vision with the ULTIMA 215 LED Hybrid Driving Lights (Black). These lights
are 20% brighter, projecting a powerful beam up to 1213 metres ahead. Built to withstand the
toughest conditions, they’re fully sealed and perfect for any adventure. Customise your look with
included bezels and covers, all backed by a Lifetime No Fault Warranty.
Welcome to the future of vision with the ULTIMA 215 LED Hybrid Driving Lights (Black). These lights
are 20% brighter, projecting a powerful beam up to 1213 metres ahead. Built to withstand the
toughest conditions, they’re fully sealed and perfect for any adventure. Customise your look with
included bezels and covers, all backed by a Lifetime No Fault Warranty.
Features
The Future of Vision
Up to 20% brighter with 100% more control, the NEW 215 Spot Beam offers increased distance, while the upgraded Hybrid Beam pattern delivers enhanced width.
Engineered for durability

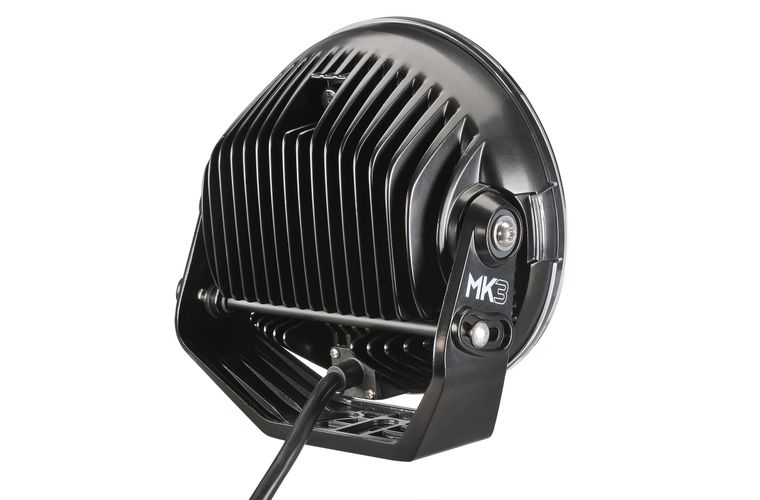

The pressure die-cast housing is engineered to last no matter the conditions. It is fully sealed with an IP68 + IP69K rating and features an overmolded Deutsch® connector on a flying lead. The UV-resistant hard-coating and virtually unbreakable polycarbonate lenses and lens protectors ensure that the lights maintain their appearance over time, preventing yellowing and resisting damage from stones and other debris.
Engineered for control
The use of the Ultima Connect+ Controller allows total control over beam shape. Users can select between more distance, more spread, or both, depending on their driving conditions. It also enables independent control of the Hybrid and Spot beams, as well as Ultima Light bars, to avoid road sign flare.
Engineered for
you
Customize the lamps to suit any vehicle by choosing from Satin or Black bezels and any one of seven color trims—Narva Blue, Yellow, Red, Black, Electric Blue, Hyper Green, and Slate Grey—all at no extra charge via redemption. Additionally, select either Stealth or Selective Yellow lens covers.
NO Fault Warranty
This warranty covers not only product defects, but also impact damage, meaning even if the vehicle is in an accident, the lights are covered by a replacement warranty. This also covers chemical and UV-related damage.Specifications
Technical Information
| INPUT VOLTAGE RANGE | 9–33 VOLT |
|---|---|
| CURRENT DRAW | 14.9A at 13.5V |
| LEDs | 5W Osram |
| LUMENS | 18,092Lm/19,012Lm (Boost) |
| IP RATING | IP68 + IP69K |
| OPERATING TEMPERATURE | -40°C to +65°C |
| COLOUR TEMPERATURE | 5700°K |
Beam Pattern
Dimensions
