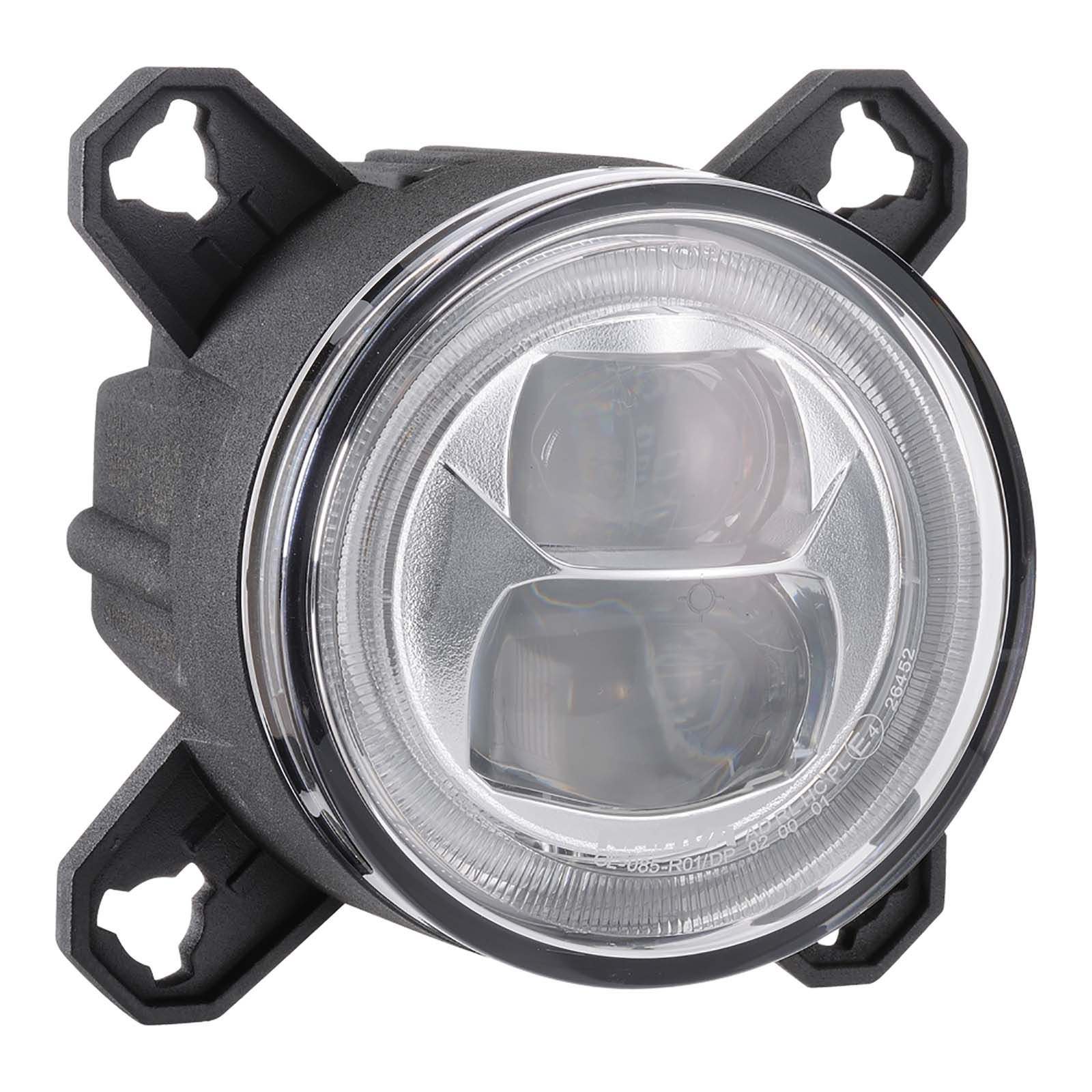

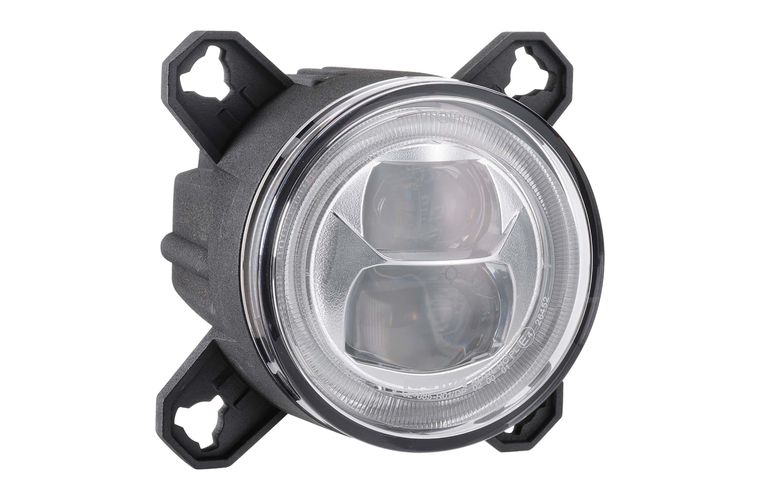

9-33V LED LOW BEAM HEADLAMP ASSEMBLY WITH DRL AND POSITION LIGHT 90MM DIAMETER
Part No. 71989
Delivering superior performance and visibility, this premium low beam headlamp is ideal
for OE fitment to modern trucks and buses. Including a built-in daytime running/position
light for unique styling and convenience in one lamp
Delivering superior performance and visibility, this premium low beam headlamp is ideal
for OE fitment to modern trucks and buses. Including a built-in daytime running/position
light for unique styling and convenience in one lamp
Specifications
Technical Information
| INPUT VOLTAGE RANGE | 9-33V |
|---|---|
| CURRENT DRAW | Low Beam: 1.8A at 12V, 0.9A at 24V. DRL: 1.0A at 12V, 0.5A at 24V. Position: 0.1A at 12V, 0.1A at 24V. |
| IP RATING | IP66 |
| SIZE | Diameter: 90mm |
