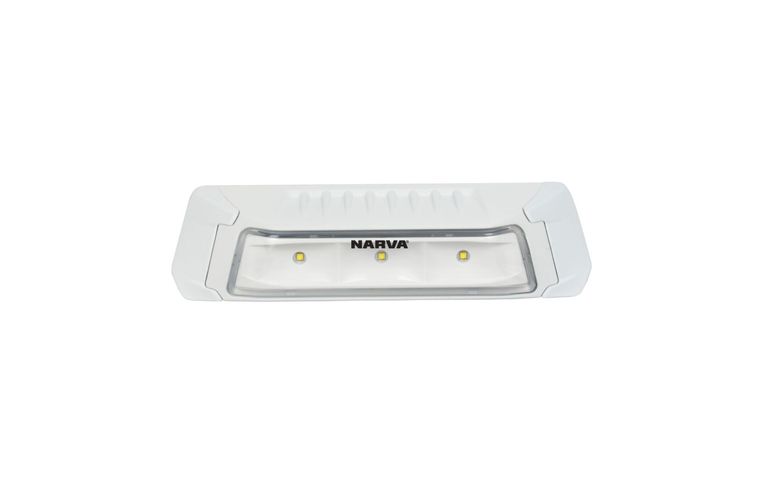

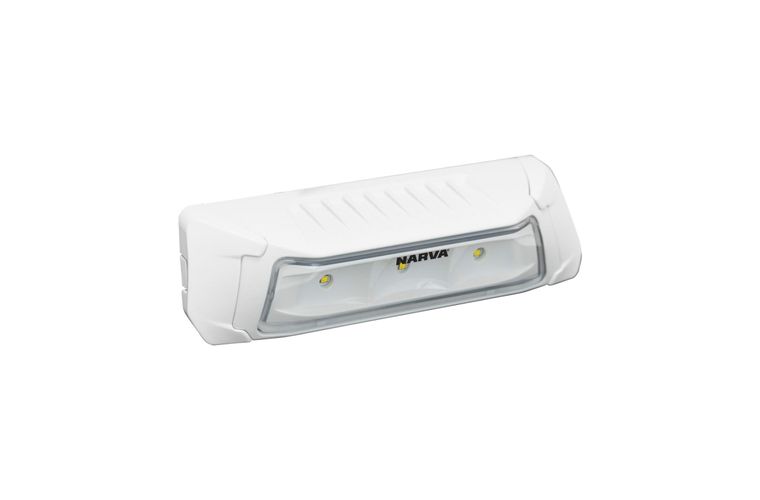

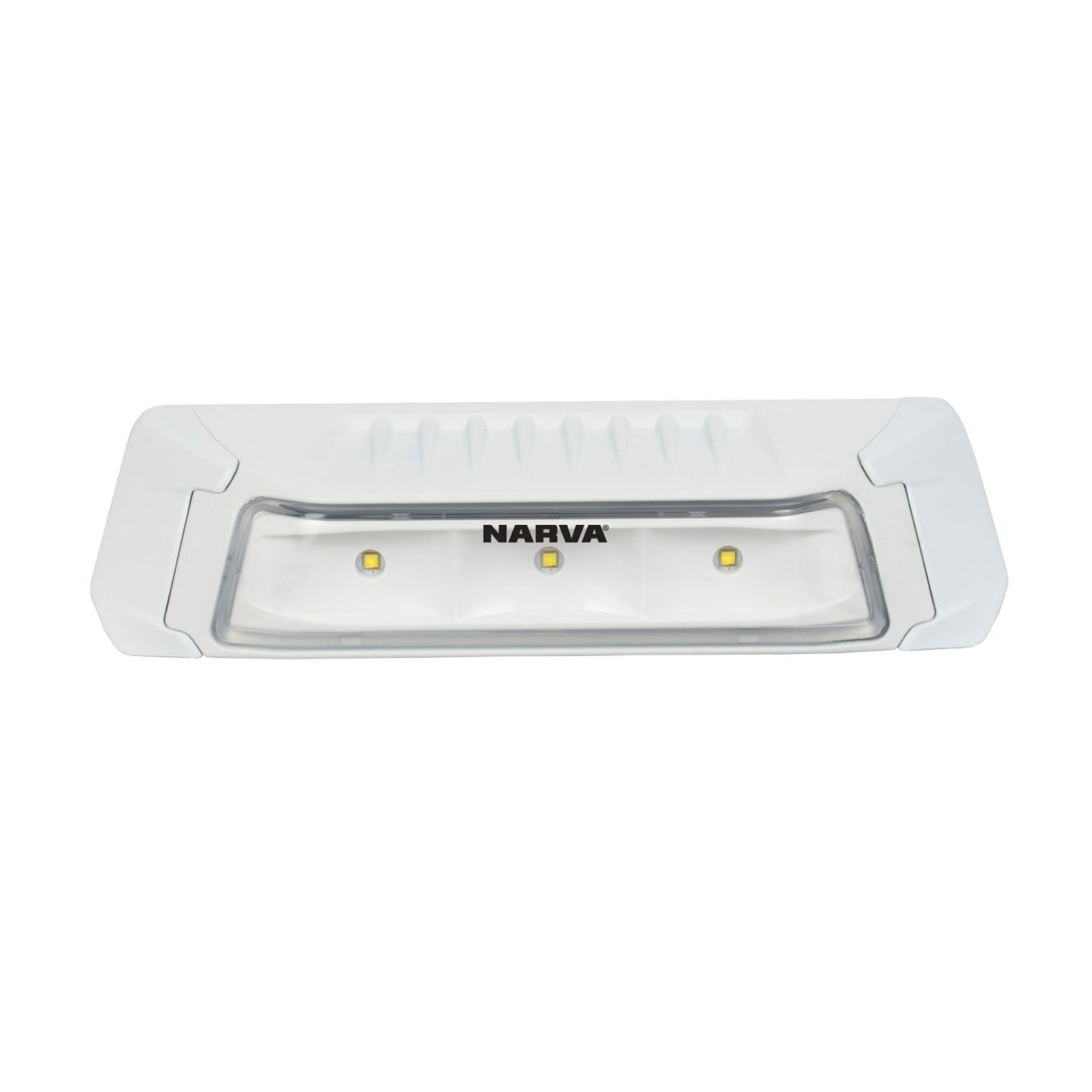

9–33 VOLT LED SCENE LAMP FLOOD BEAM - DUAL COLOUR (AMBER/WHITE) WITH WHITE HOUSING
Part No. 72477WAW
- Engineered for emergency servicesvehicles and also suitable for caravan/RV and marine
applications- 40° light angle for an optimum lightpattern when the lamp is mounted
on avertical surface- Snap-on endcaps to conceal mountingscrews for O.E finish
- Engineered for emergency servicesvehicles and also suitable for caravan/RV and marine
applications- 40° light angle for an optimum lightpattern when the lamp is mounted
on avertical surface- Snap-on endcaps to conceal mountingscrews for O.E finish
Specifications
Technical Information
| INPUT VOLTAGE RANGE | 9-33 VOLT |
|---|---|
| CURRENT DRAW | 0.8A at 12V, 0.46A at 24V |
| LEDs | 3 x 3W |
| IP RATING | IP67 + IP69 |
| OPERATING TEMPERATURE | -30°C to +65°C |
| COLOUR TEMPERATURE | 5700°K |
Downloads
Get the latest information
9–33 VOLT LED SCENE LAMP FLOOD BEAM - DUAL COLOUR (AMBER/WHITE) WITH WHITE HOUSING
Download Instructions
