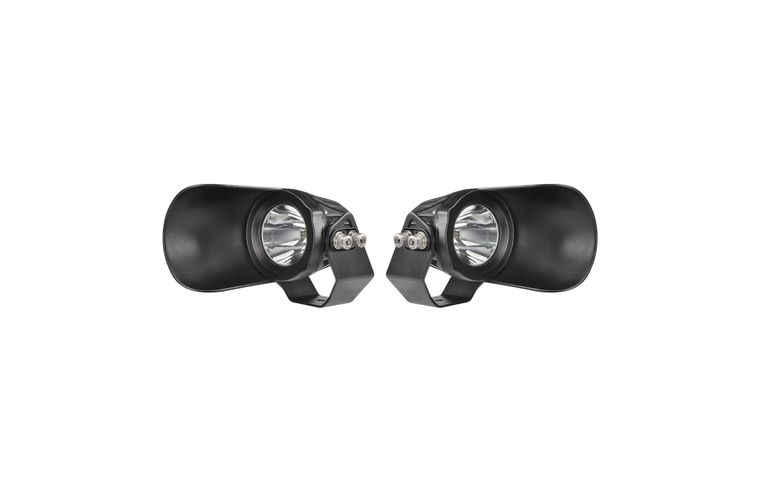

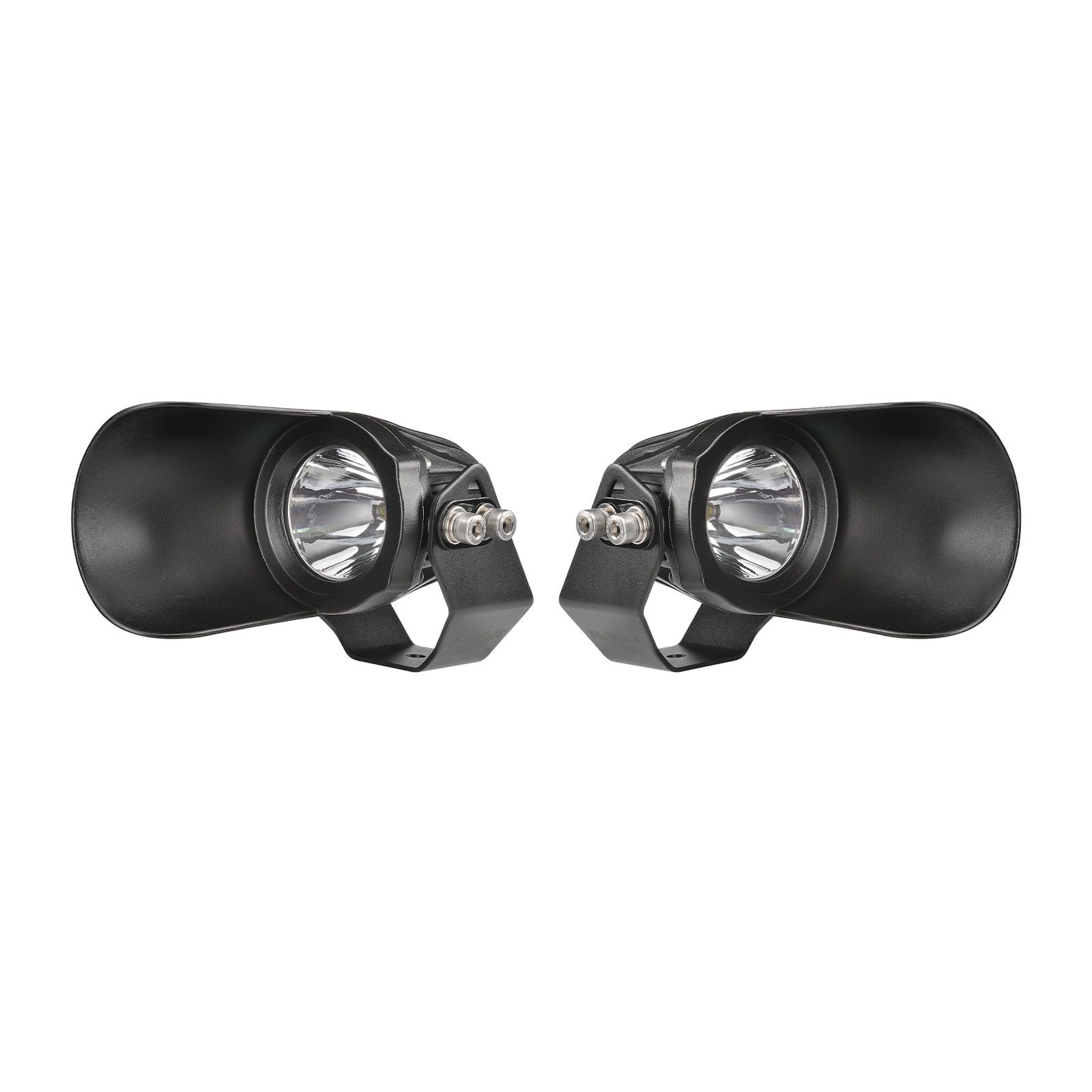

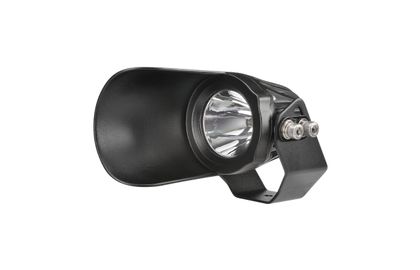

9-36V LED Load Lamp Kit with Glare Shields (LH and RH lamps)
Part No. 72700K
Designed to be mounted on the mirror of a truck to illuminate the side and load of the trailer. The
Narva load lamps produce a powerful 2500 Lumen output with 1 LUX at 160m to ensure visibility of
even the longest trailer loads. The addition of the glare shield is a key safety feature to ensure
the driver does not get distracted by glare from the lamp as they are fitted facing towards the
driver. The glare shield protects the drivers eyes, allowing perfect visibility when reversing.
Designed to be mounted on the mirror of a truck to illuminate the side and load of the trailer. The
Narva load lamps produce a powerful 2500 Lumen output with 1 LUX at 160m to ensure visibility of
even the longest trailer loads. The addition of the glare shield is a key safety feature to ensure
the driver does not get distracted by glare from the lamp as they are fitted facing towards the
driver. The glare shield protects the drivers eyes, allowing perfect visibility when reversing.
Specifications
Technical Information
| INPUT VOLTAGE RANGE | 9-36V |
|---|---|
| CURRENT DRAW | 1.2A at 12V |
| LEDs | 25W Cree LEDs |
| LUMENS | 2500lm per side |
| IP RATING | IP68 |
