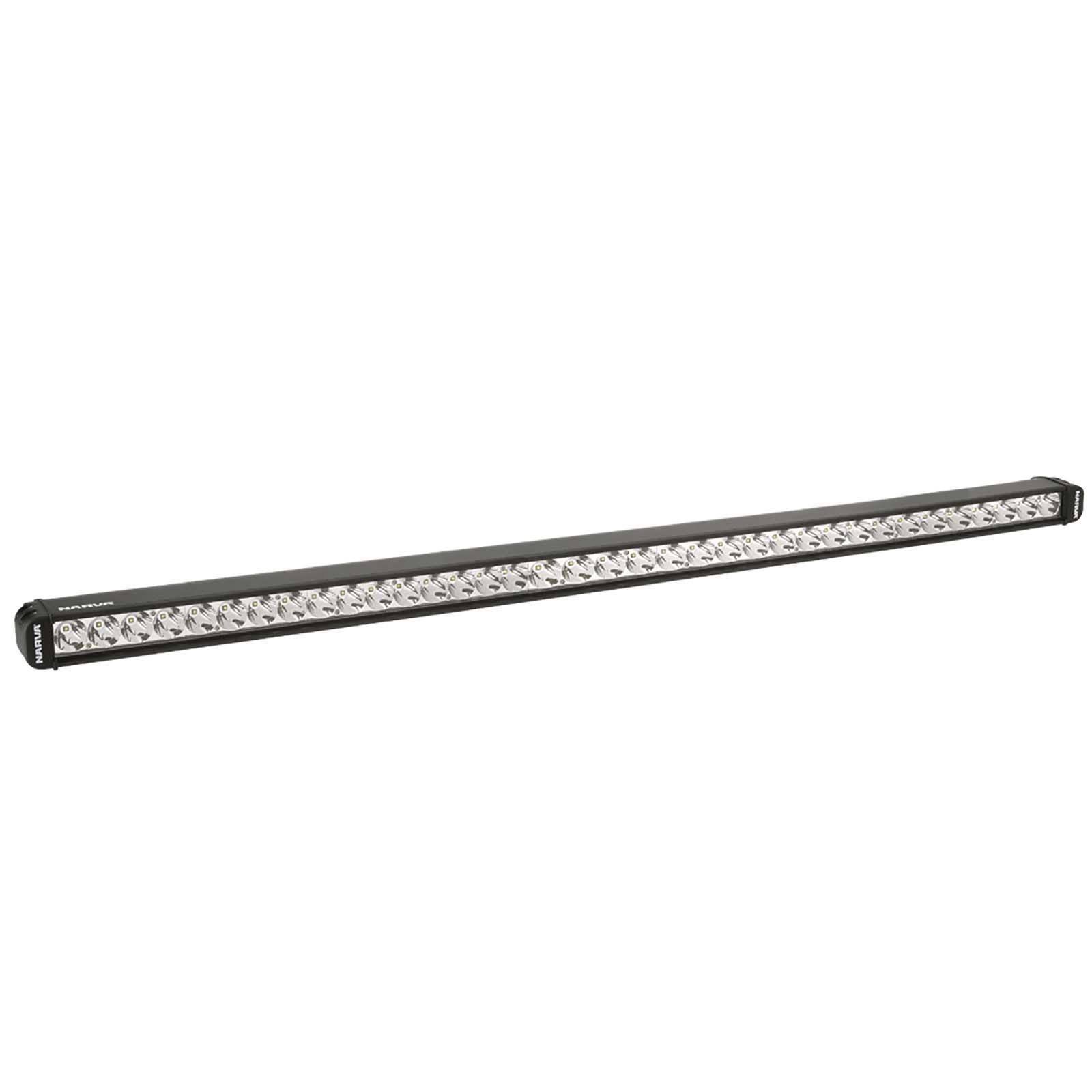

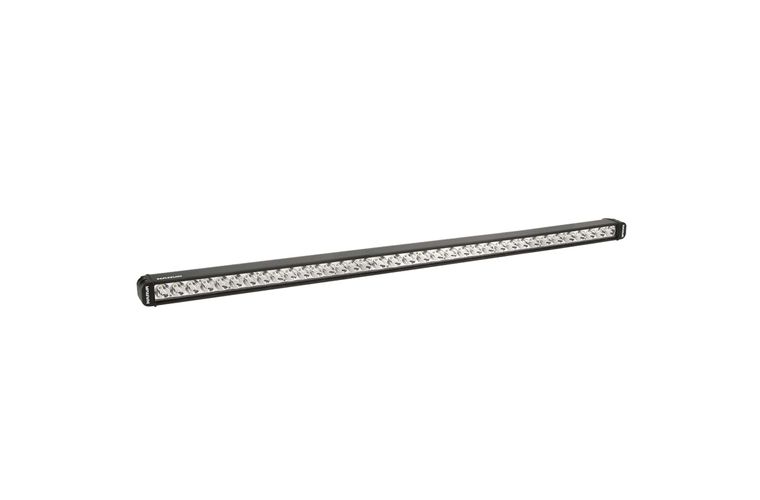

LED Driving Light Bar Spot Beam - 17600 Lumens
Part No. 72766
9-32 Volt Built from extremely tough extruded aluminium with virtually unbreakable
polycarbonate lenses industrial strength multi-angle bracketry and stainless steel
fittings. The bars are assembled within an E.S.D protected environment to maximise
the life of the LED resulting in life expectancy in excess of 50 000 hours. Fully
sealed and submersible the lamps have an IP66 and IP68 rating.
9-32 Volt Built from extremely tough extruded aluminium with virtually unbreakable
polycarbonate lenses industrial strength multi-angle bracketry and stainless steel
fittings. The bars are assembled within an E.S.D protected environment to maximise
the life of the LED resulting in life expectancy in excess of 50 000 hours. Fully
sealed and submersible the lamps have an IP66 and IP68 rating.
Specifications
Technical Information
| INPUT VOLTAGE RANGE | 9-32V |
|---|---|
| CURRENT DRAW | 7.6A at 9–32V |
| LEDs | 36 x 5 Watt LEDs |
| LUMENS | 17600 |
| IP RATING | IP66 & IP68 |
| SIZE | 967mm |

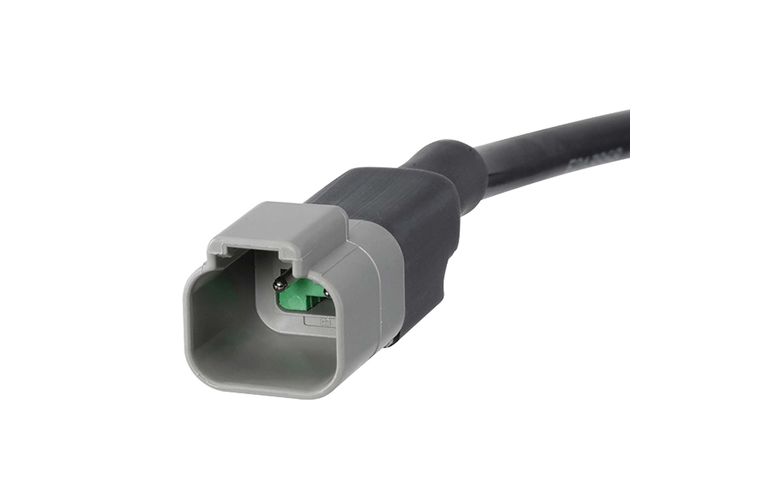

| COMPRISES | 36 x 5 watt high powered L.E.Ds; Extruded aluminium bar; 250mm pre-wired lead and Deutsch® connector; |
Beam Pattern
Dimensions
