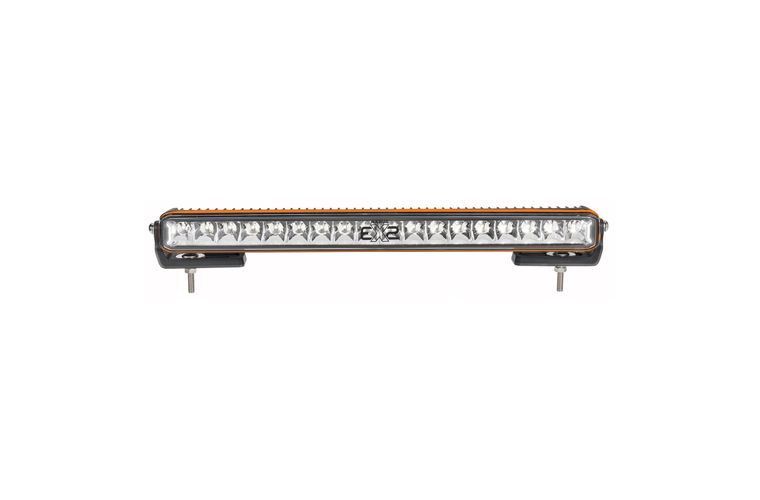

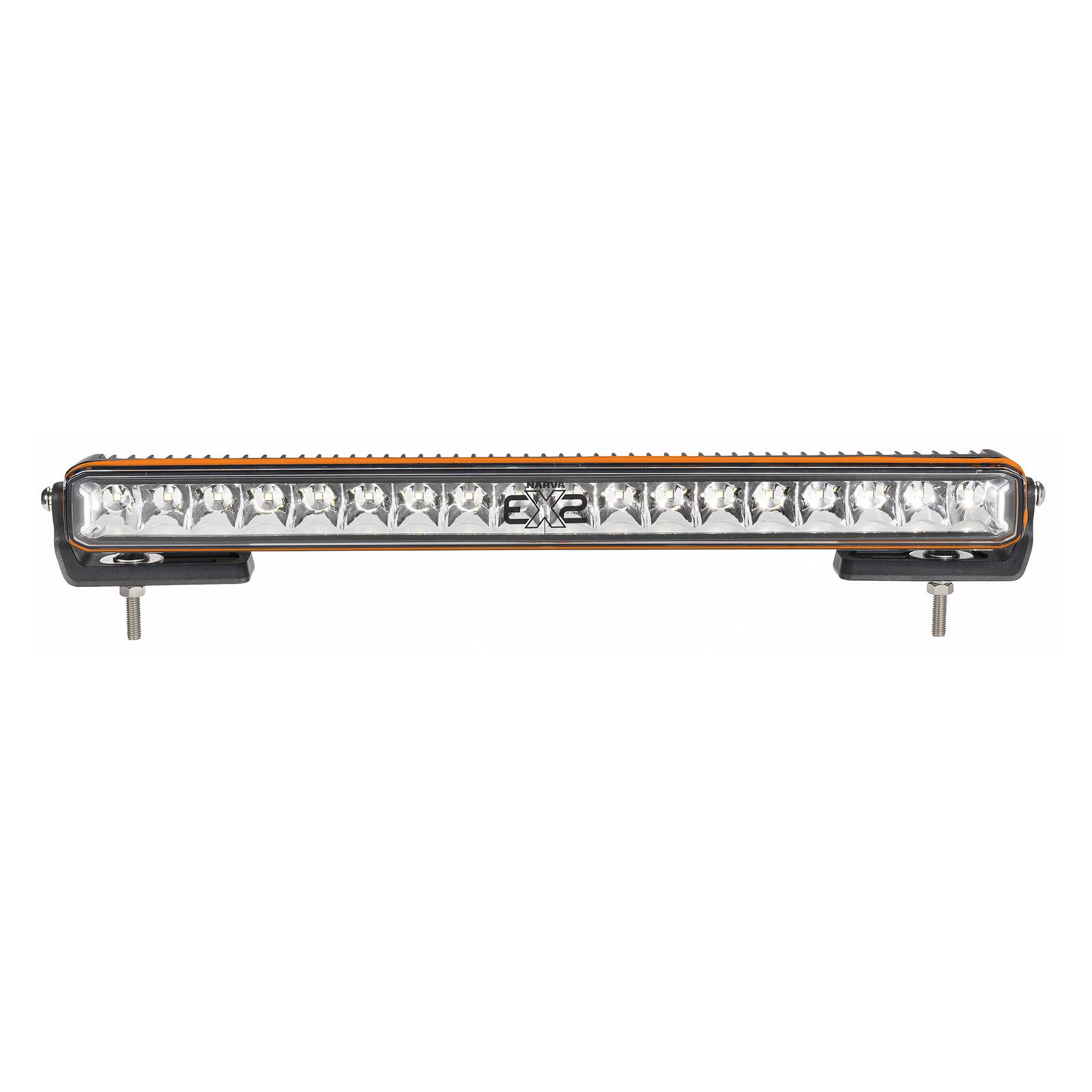

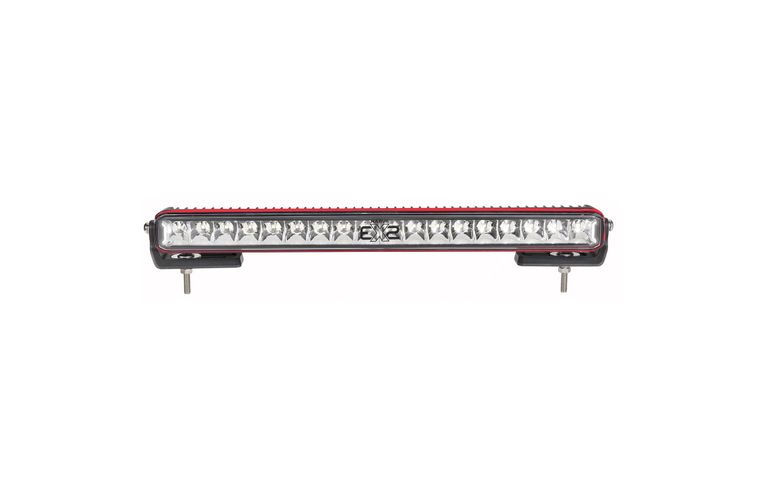

20" EX2-R Light Bar Single Row
Part No. 72839
RRP $425.00 AUD Inc GST
RRP $425.00 AUD Inc GST
The EX2R range retains the output and build quality of the EX2 series with the addition of ADR/ECE
approved front position lights offering visibility, and a distinctive appearance.
These position lights are RGB enabled, allowing them to be changed to various colours when paired
with the 12V RGB Bluetooth® Controller - a never before seen feature on the market (For off-road use
only).
The EX2R range retains the output and build quality of the EX2 series with the addition of ADR/ECE
approved front position lights offering visibility, and a distinctive appearance.
These position lights are RGB enabled, allowing them to be changed to various colours when paired
with the 12V RGB Bluetooth® Controller - a never before seen feature on the market (For off-road use
only).
Features
RGB ENABLED POSITION LIGHTS
App controlled RGB technology allows you to customise the light pipes on your enabled EX2R driving lights or light bars to one of 48 different colours. Simply add the RGB module and scan the QR code on the box for more details. Position lights are ADR approved when in white mode only. RGB mode is for offroad use only.
CLEVER HARNESS-FREE INSTALLATION
EX2 eliminates the need for a harness, making it the easiest to wire on the market, with no components needing to be routed through the firewall.
WORLD-CLASS BUILD QUALITY
Featuring a virtually unbreakable UV Resistant Hard Coated polycarbonate lens which won't chip or yellow with age, diecast aluminium housing, and the highest possible ingress protection (IP68 & IP69K), EX2 lights provide exceptional durability and reliability.Just as strong as diecast or pressed metal brackets, EX2's composite glass-filled nylon brackets are much lighter, offering increased vibration resistance while eliminating the risk of corrosion or rust.
EXCEPTIONAL PERFORMANCE
EX2's hybrid beam provides outstanding width and distance, without dark spots or hot spots, ensuring exceptional clarity in the dark. 1 lux is available at 700m (Length) and 60m (Width) with a pair of 9” Driving Lights while the 30” double row light bar achieves an impressive 724m (Length) and 100m (Width).
8 INTERCHANGEABLE COLOUR TRIMS
EX2 allows for a tool-free custom look to your driving lights and light bars with 8 interchangeable trim colour options: Slate (Grey), Stealth (Black), Sunburst (Yellow), Volcano (Red), Electric (Blue), Hyper (Green), Juiced (Orange), and Bubblegum (Pink).
7 YEAR NO FAULT WARRANTY
What’s ‘no fault’? Well if you feel that it should be covered by warranty, so do we! So, if you have a collision with a roo and your EX2 lamp is severally damaged, we’ll happily replace it.*Specifications
Technical Information
| INPUT VOLTAGE RANGE | 9-33V DC |
|---|---|
| CURRENT DRAW | @13.5V/@28V: 4.4/2.2 |
| LEDs | 18 |
| LUMENS | Effective: 5890Lm |
| IP RATING | IP68 & IP69K |
| OPERATING TEMPERATURE | -40 - +60° |
| COLOUR TEMPERATURE | 5700K ±5% |
| ECE | R10 |
| OTHER | Raw Lumens: 6120Lm |
Downloads
Get the latest information
20" EX2-R Light Bar Single Row
Download Instructions Download Brochure Download Spec SheetMultimedia
