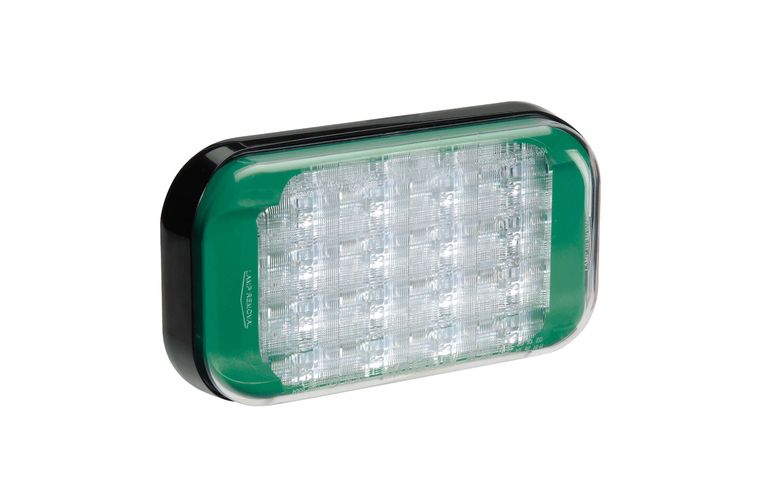

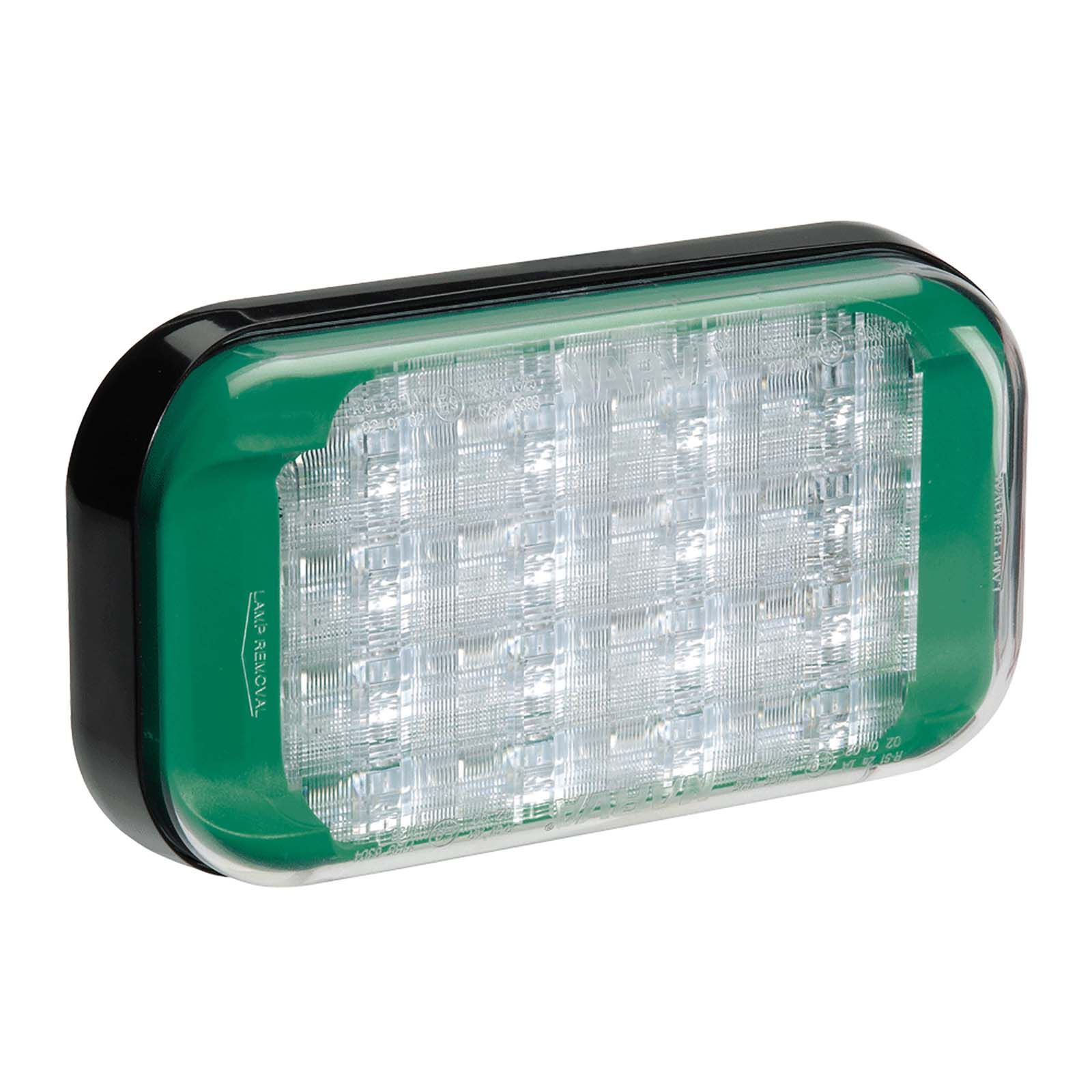

9-33 Volt High Powered LED Warning Lamp (Green)
Part No. 85222G
These low profile, surface mounted warning lamps are intended for emergency services and mining
applications. A special optic is combined with high powered L.E.Ds to deliver an intense flash with
5 selectable flash patterns. The lamps can be used independently or synchronised in uniform or
alternating flash patterns. The Model 41 warning lamps feature 9–33 multi-voltage circuitry and are
sonically sealed with virtually unbreakable polycarbonate lenses.
These low profile, surface mounted warning lamps are intended for emergency services and mining
applications. A special optic is combined with high powered L.E.Ds to deliver an intense flash with
5 selectable flash patterns. The lamps can be used independently or synchronised in uniform or
alternating flash patterns. The Model 41 warning lamps feature 9–33 multi-voltage circuitry and are
sonically sealed with virtually unbreakable polycarbonate lenses.
Specifications
Technical Information
| INPUT VOLTAGE RANGE | 9-33V |
|---|---|
| CURRENT DRAW | 0.52A at 9-33V |
| IP RATING | IP66 and IP68 |
| SIZE | 180 x 100 x 37mm |
Dimensions
