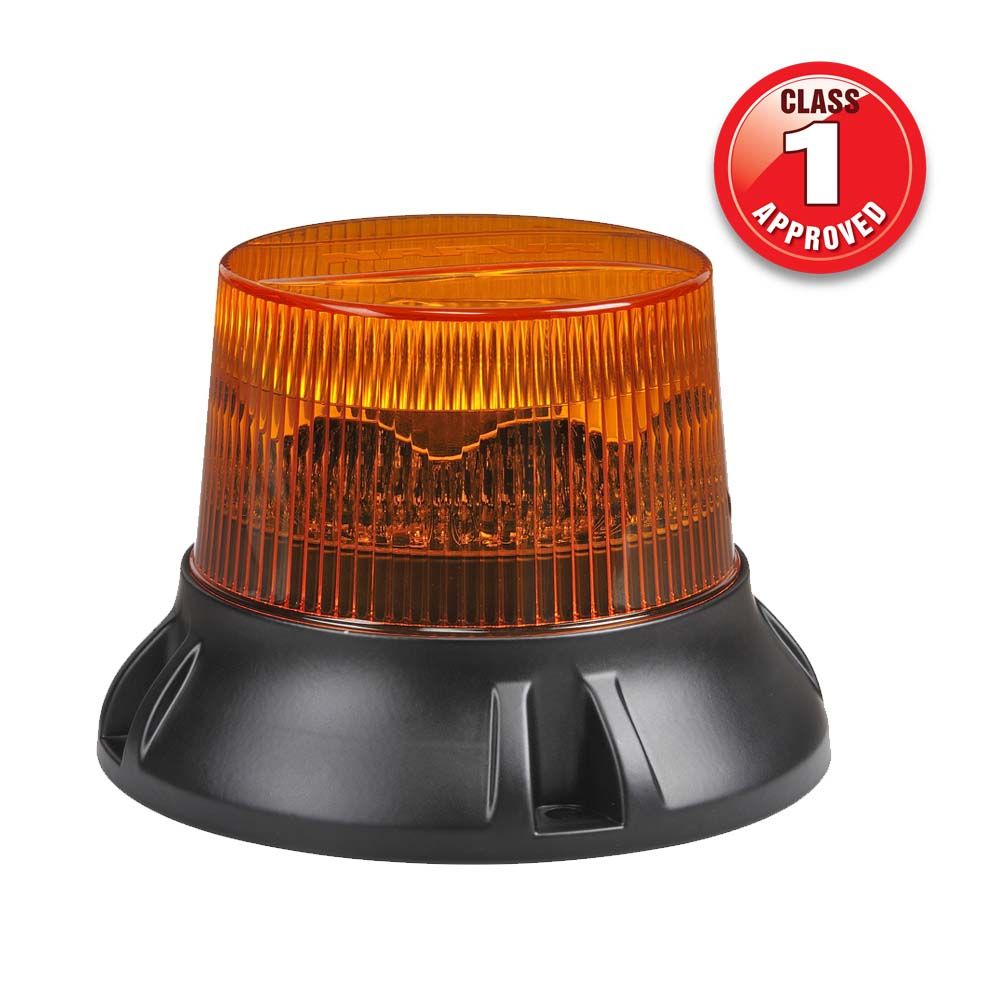

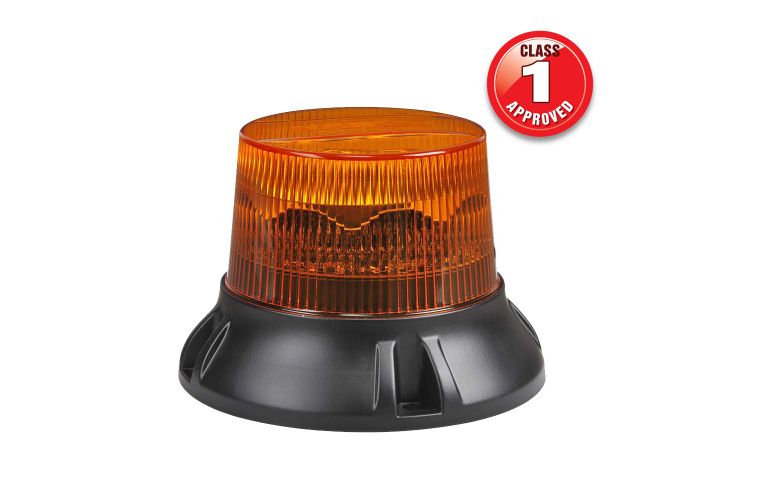

12-80V 'GEOMAX' CLASS 1 HEAVY DUTY LED STROBE (AMBER)
Part No. 85250A
Specifically designed to thrive in the super harsh environment of Australian mines, the Geomax
mining strobes are rated to IP69K and IP67. Featuring a die-cast aluminium base and virtually
unbreakable polycarbonate lens, these strobes are made to last. They can be washed with a pressure
washer and steam cleaned without compromising the product.
Specifically designed to thrive in the super harsh environment of Australian mines, the Geomax
mining strobes are rated to IP69K and IP67. Featuring a die-cast aluminium base and virtually
unbreakable polycarbonate lens, these strobes are made to last. They can be washed with a pressure
washer and steam cleaned without compromising the product.
Features
Ambient light sensor & override reduces power to 20% for work at night or underground
CISPR25 class 3 radio interference suppressed
IP69K + IP67 Fully sealed allowing cleaning with heated pressure washers (up to 800C)
6 selectable flash patterns including SAE Rotate
Tough diecast aluminium housing and polycarbonate lensSpecifications
Technical Information
| INPUT VOLTAGE RANGE | 12-80V |
|---|---|
| CURRENT DRAW | 2.0A @12V |
| IP RATING | IP69K & IP67 |
| SIZE | 125 x 91mm |
| BASE TYPE | Diecast Aluminium |
| FLASH RATE | 122 FPM Single Flash |
| OTHER | CISPR 25 Class 3 |
| OTHER | SAE Class 1 |
