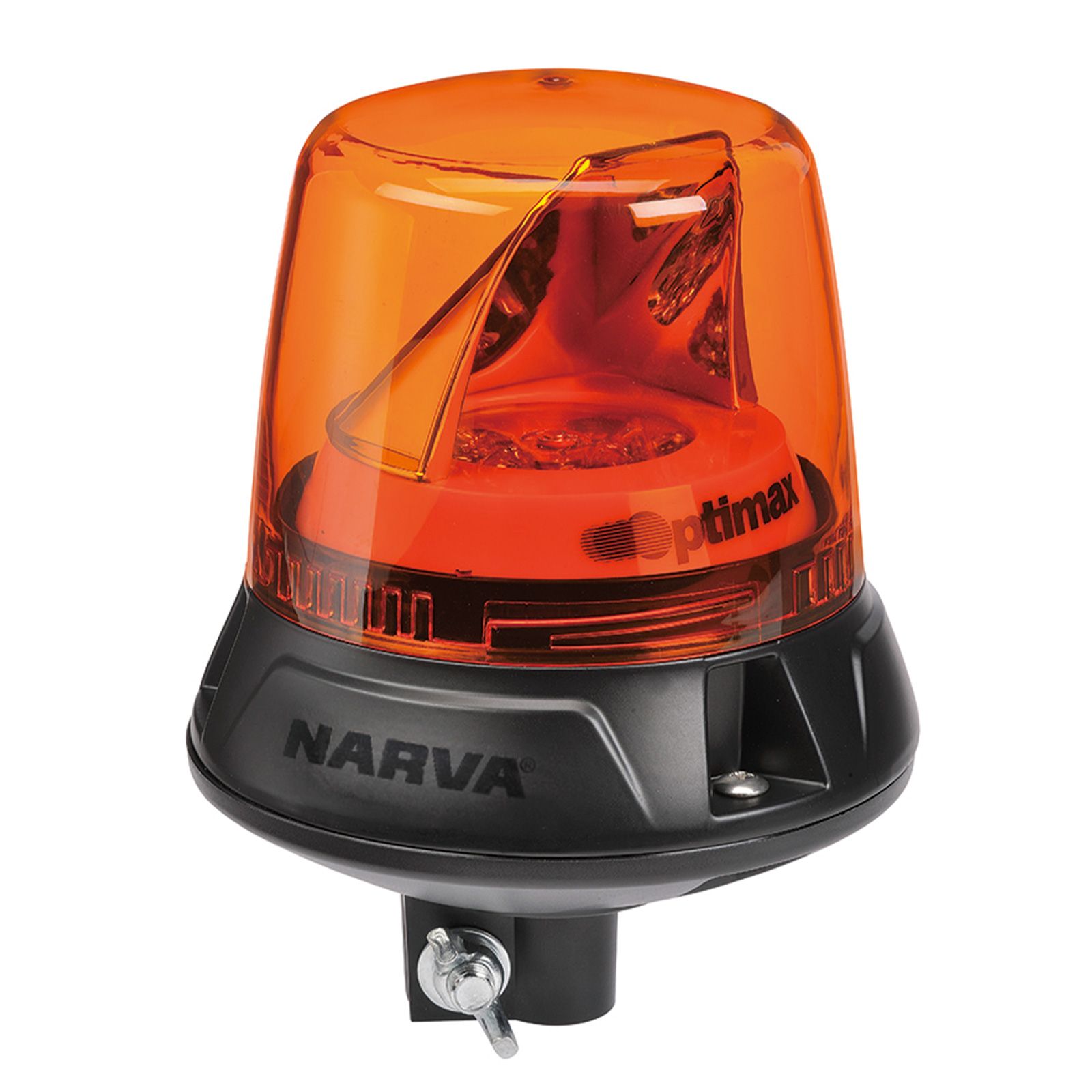

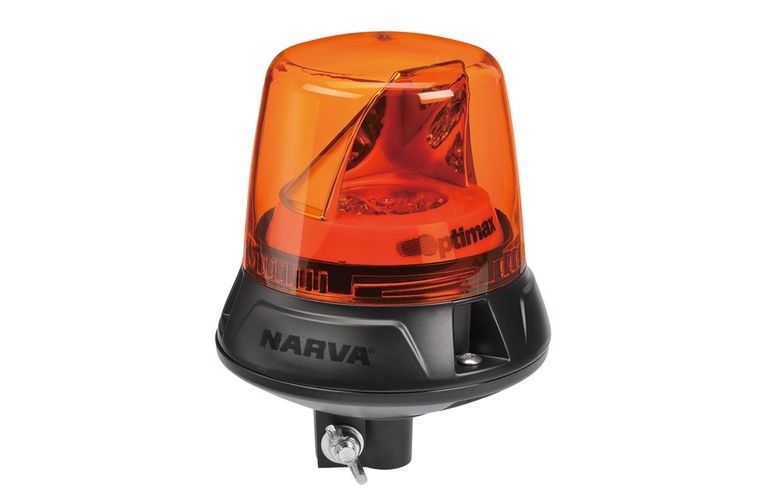

10-33V Optimax LED Rotating Beacon Pole Mount (Amber)
Part No. 85664A
Optimax LED beacons are engineered to produce smooth, highly visible rotating patterns suitable for
all civil applications. This has been achieved by a proprietary reflector optic to spread the light
combined with 6 x 5 watt high power LEDs. This output ensures Optimax LED Beacons meet Heavy Vehicle
Regulation 2013 No.77. This extreme output also makes the Optimax beacon range as visible even as
traditional halogen beacons with 55W (or 70W) globes with a fraction of the current draw.
Optimax LED beacons are engineered to produce smooth, highly visible rotating patterns suitable for
all civil applications. This has been achieved by a proprietary reflector optic to spread the light
combined with 6 x 5 watt high power LEDs. This output ensures Optimax LED Beacons meet Heavy Vehicle
Regulation 2013 No.77. This extreme output also makes the Optimax beacon range as visible even as
traditional halogen beacons with 55W (or 70W) globes with a fraction of the current draw.
Features
Longer lasting
LED technology ensures no blown globes due to continued use
More reliable
Vibration resistant stepper motor & over voltage protection
More durable
Diecast aluminium base, virtually unbreakable lens & rated to IP67.
More visible
6 x 5W (30W) LED Output
Multiple applications

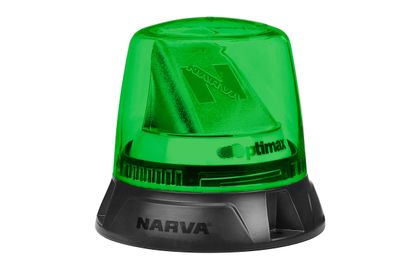

5 mounting options and Australia's first dual-colour LED beaconSpecifications
Technical Information
| INPUT VOLTAGE RANGE | 10-33V |
|---|---|
| CURRENT DRAW | 2A at 12V |
| LEDs | 6 x 5 watt high power LEDs |
| IP RATING | IP67 |
| OPERATING TEMPERATURE | -30° to 60° |
| SIZE | 201mm (height) x 154mm (diameter) |
| WEIGHT | 330g |
| BASE TYPE | Pole Mount |
| ECE | 10R-06.22895 (R10) |
| OTHER | SAE JJ845 Class 1, W3-1 |
| OTHER | CISPR Class 3 |

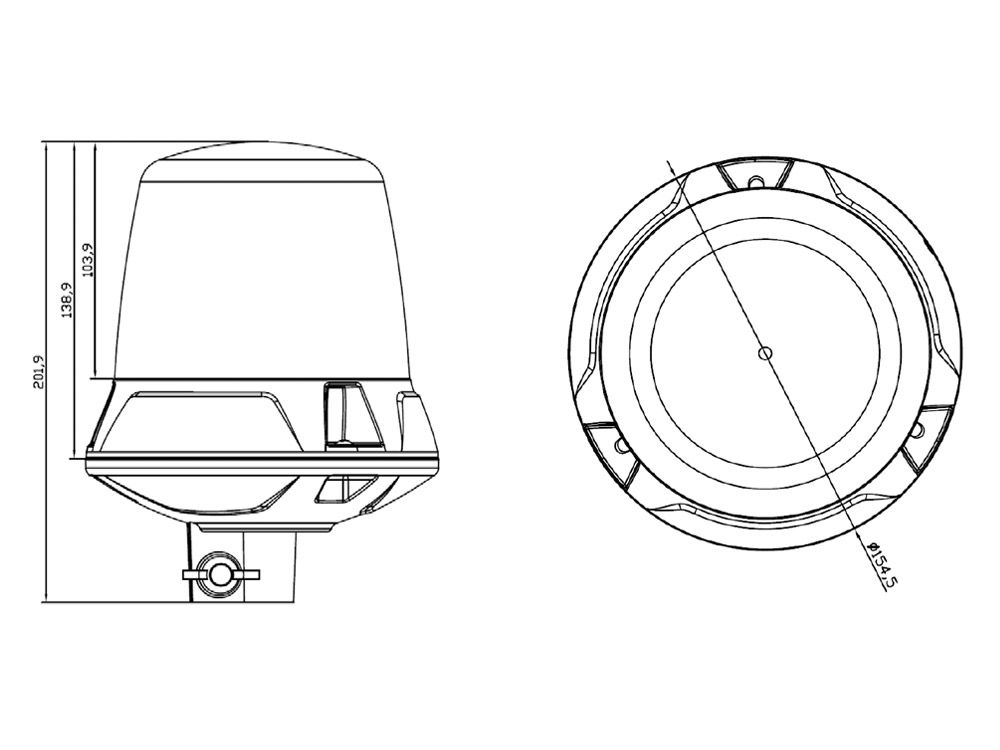

Dimensions
