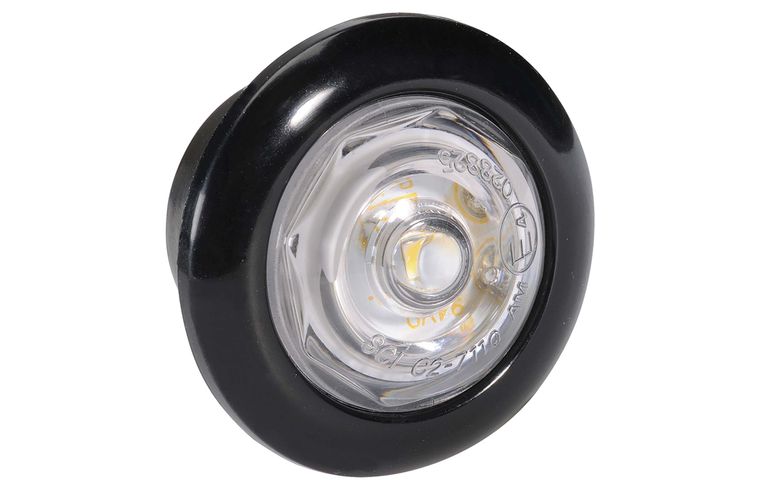

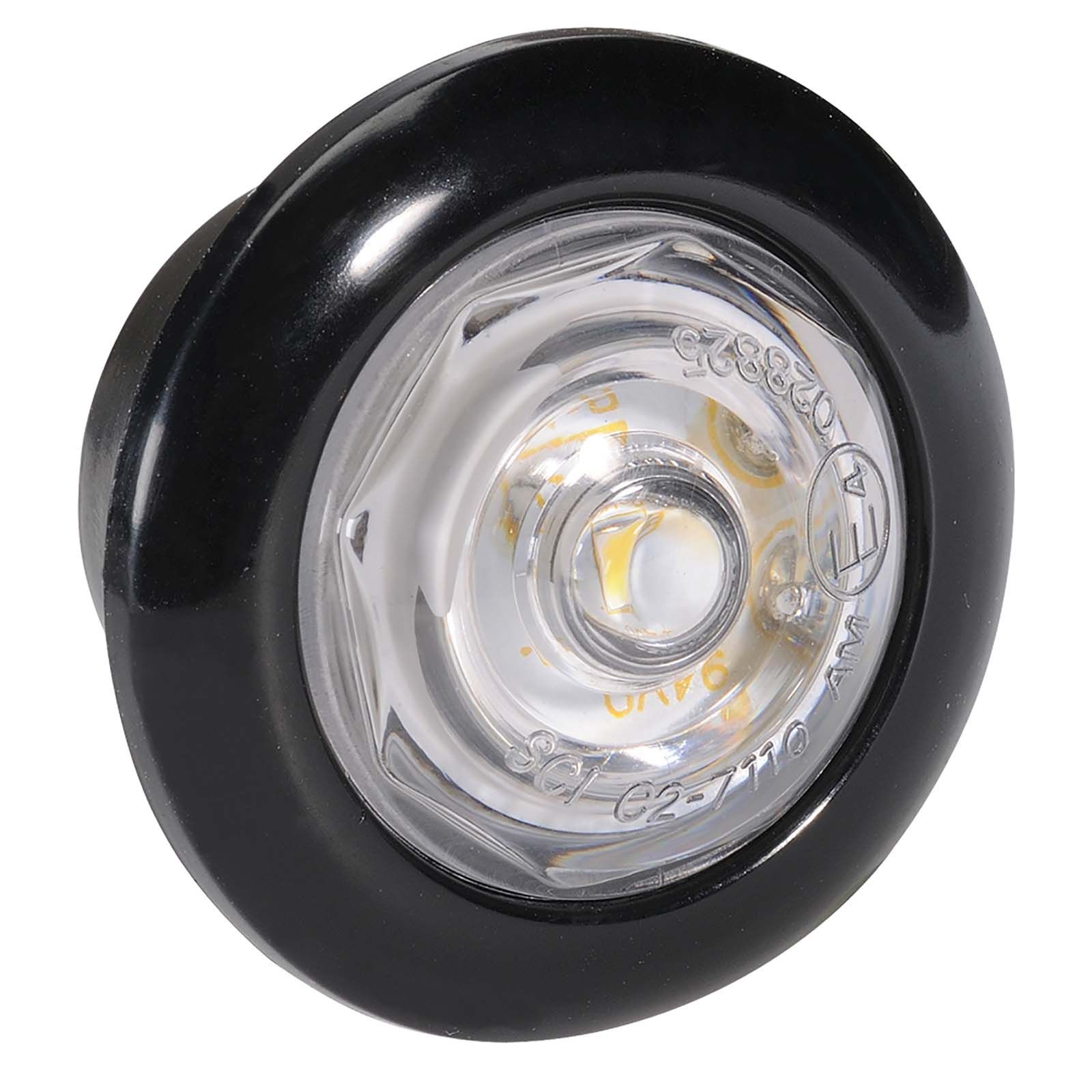

9-33V LED MODEL 2 FRONT END OUTLINE MARKER LAMP WITH BLACK GROMMET
Part No. 90222
RRP $24.15 AUD Inc GST
RRP $24.15 AUD Inc GST
The Model 2 marker lamps are some of the smallest ADR/ECE approved lamps in the world
measuring only 19mm in diameter (lens) and protruding no more than 7mm. No screws
are required for fitment, just laser cut or drill a 19mm hole, insert the grommet
and push in the lamp.
The Model 2 marker lamps are some of the smallest ADR/ECE approved lamps in the world
measuring only 19mm in diameter (lens) and protruding no more than 7mm. No screws
are required for fitment, just laser cut or drill a 19mm hole, insert the grommet
and push in the lamp.
Specifications
Technical Information
| INPUT VOLTAGE RANGE | 9-33V |
|---|---|
| CURRENT DRAW | 0.05A at 9-33V |
| IP RATING | IP66 & IP67 |
| SIZE | 27 x 19mm |
