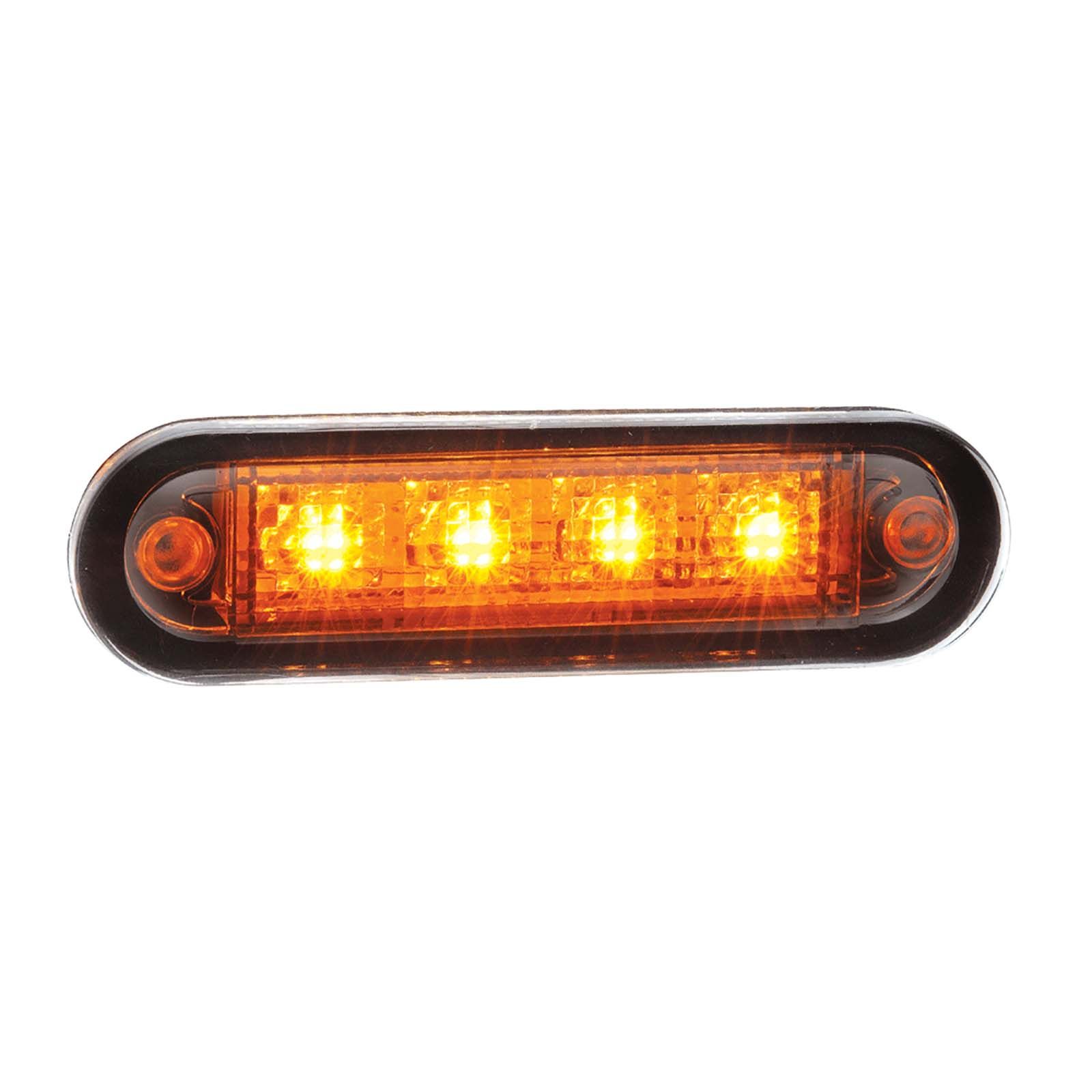

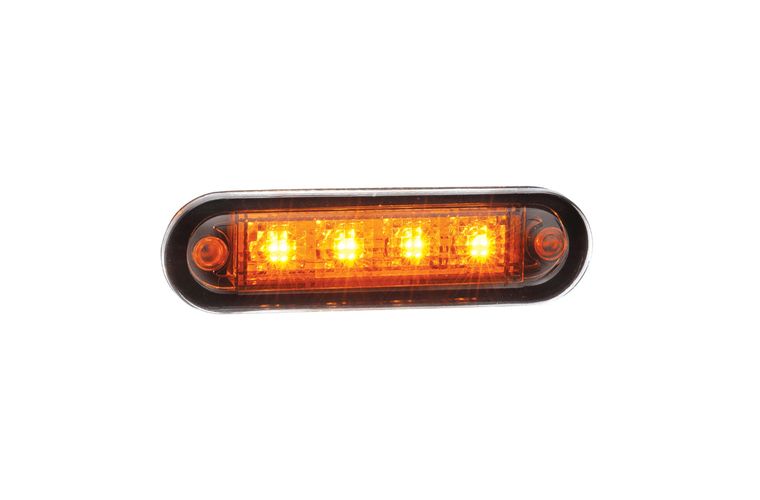

10-30 VOLT MODEL 8 LED FRONT END OUTLINE MARKER LAMP (AMBER)
Part No. 90820
RRP $36.75 AUD Inc GST
RRP $36.75 AUD Inc GST
88
Model 8 LED lamps comply with the ADR requirements for front & rear end outline marker
lamps. All lamps feature multi-voltage circuitry to suit 12 or 24 volt operation &
hard-wired cable. A gasket, mounting screws & screw caps are included. While the low
profile nature of these lamps protects them from damage, so too does the virtually
88
Model 8 LED lamps comply with the ADR requirements for front & rear end outline marker
lamps. All lamps feature multi-voltage circuitry to suit 12 or 24 volt operation &
hard-wired cable. A gasket, mounting screws & screw caps are included. While the low
profile nature of these lamps protects them from damage, so too does the virtually
Specifications
Technical Information
| INPUT VOLTAGE RANGE | 10-30 Volt |
|---|---|
| CURRENT DRAW | 0.03A |
| IP RATING | IP66 and IP68 |
| SIZE | 90 X 25mm |
| CANDELA RATING | 11 |
| ADR | 49/00 39860 |
Dimensions
