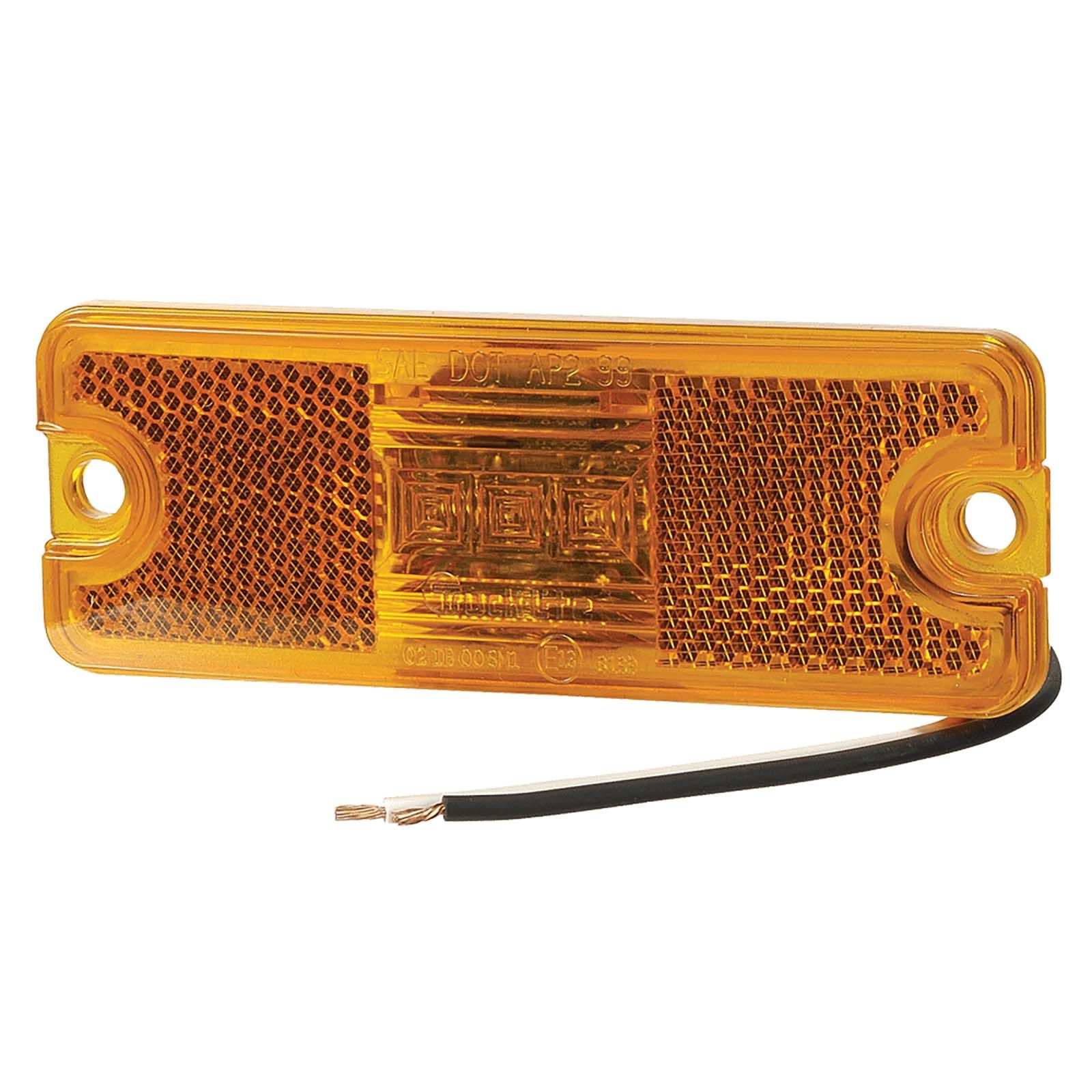

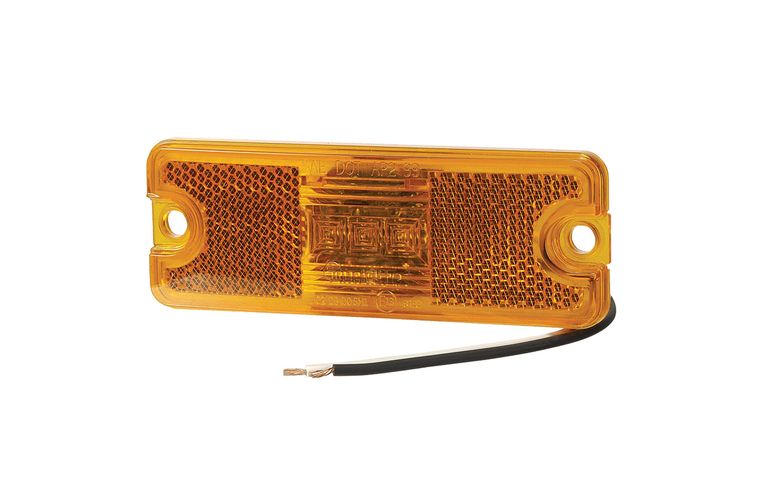

10-30 VOLT MODEL 18 LED SIDE MARKER EXTERNAL CABIN OR FRONT END OUTLINE MARKER LAMP
Part No. 91800
RRP $120.75 AUD Inc GST
RRP $120.75 AUD Inc GST
86
Model 18 lamps are approved to the side marker ADR 74/00 that allows a side marker
to be all amber and outward facing. This has allowed us to develop and offer lamps
that are ultra slim and incorporate in-built, ADR 47/00 approved retro reflectors.
This saves the additional cost and space required to fit a reflector and makes the
86
Model 18 lamps are approved to the side marker ADR 74/00 that allows a side marker
to be all amber and outward facing. This has allowed us to develop and offer lamps
that are ultra slim and incorporate in-built, ADR 47/00 approved retro reflectors.
This saves the additional cost and space required to fit a reflector and makes the
Specifications
Technical Information
| INPUT VOLTAGE RANGE | 10-30 Volt |
|---|---|
| CURRENT DRAW | 0.06A |
| IP RATING | IP66 and IP68 |
| SIZE | 114 x 41mm |
| CANDELA RATING | 50 |
| ADR | 45/00 29503, 47/00 29078, 49/00 29507, 74/00 29077 |
| COMPRISES | 87112; |
Dimensions
