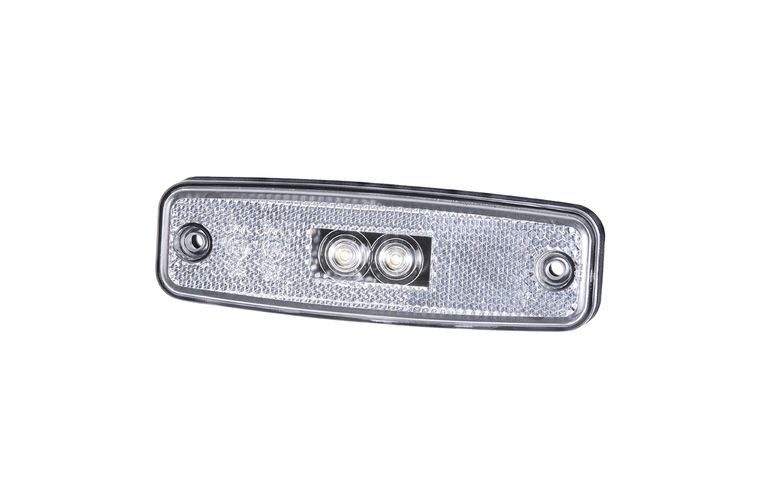

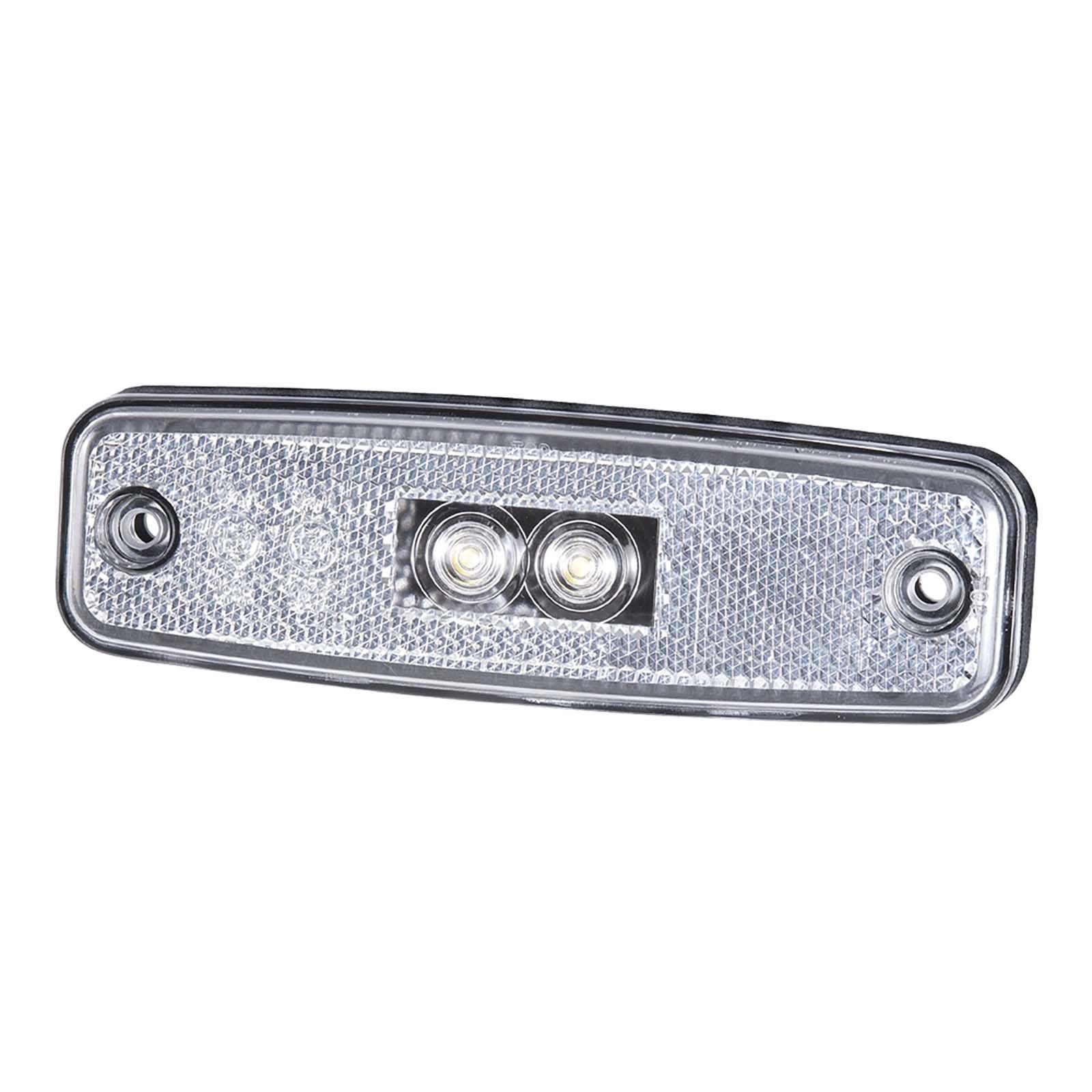

10-30 VOLT MODEL 20 LED FRONT END OUTLINE MARKER LAMP (WHITE)
Part No. 92006
RRP $86.10 AUD Inc GST
RRP $86.10 AUD Inc GST
87
Model 20 L.E.D lamps are sonically sealed acrylic lamps with a multi-voltage circuitry
of 10–30V and hard-wired leads. Less expensive than the flush mounted polycarbonate
18 series lamps, the 20 series are a low profile surface mounted alternative. These
lamps meet the requirements of ADR 74/00 as an amber side marker and are ideal for
87
Model 20 L.E.D lamps are sonically sealed acrylic lamps with a multi-voltage circuitry
of 10–30V and hard-wired leads. Less expensive than the flush mounted polycarbonate
18 series lamps, the 20 series are a low profile surface mounted alternative. These
lamps meet the requirements of ADR 74/00 as an amber side marker and are ideal for
Specifications
Technical Information
| INPUT VOLTAGE RANGE | 10-30 Volt |
|---|---|
| CURRENT DRAW | 0.04A |
| IP RATING | IP66 and IP68 |
| SIZE | 124 x 39mm |
| CANDELA RATING | 24 |
| ADR | 47/00 31154, 49/00 31153 |
Dimensions
