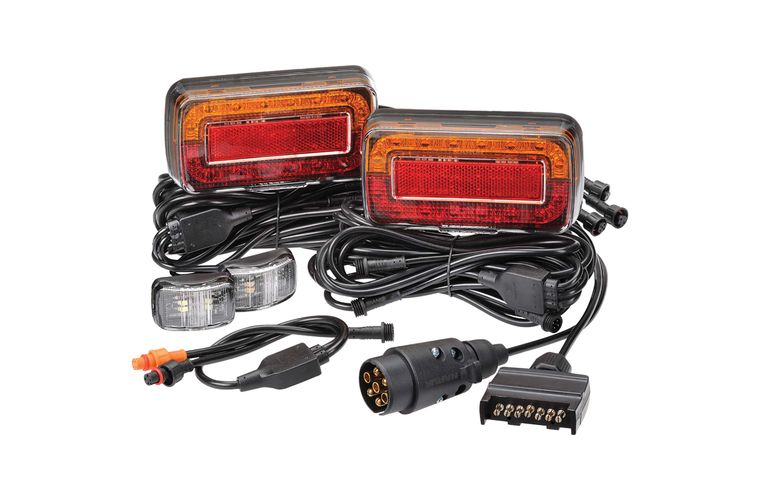

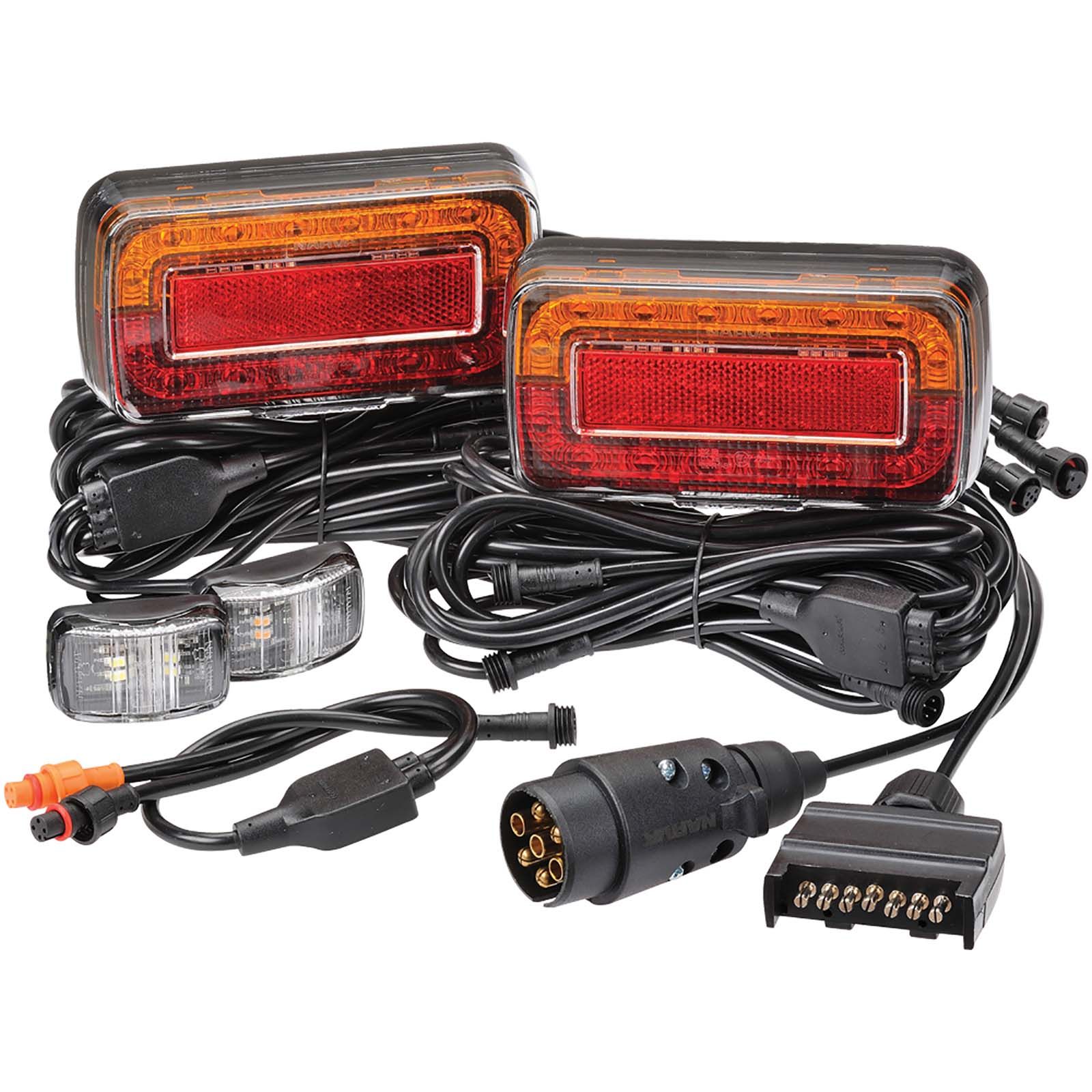

MODEL 37 12V LED PLUG AND PLAY TRAILER LAMP KIT (SUBMERSIBLE) FOR BOAT TRAILERS
RRP $209.00 AUD Inc GST
A complete 'Plug and Play' solution for boat trailers making installation easier and quicker. Perfect for DIY installation.
Designed from the ground up, the Model 37 trailer lamp has been engineered for use on boat trailers where regular submersion is common. The lamps are protected from water ingress with a two-stage system that incorporates ultrasonic welding and a two-part epoxy glue.
A complete 'Plug and Play' solution for boat trailers making installation easier and quicker. Perfect for DIY installation.
Designed from the ground up, the Model 37 trailer lamp has been engineered for use on boat trailers where regular submersion is common. The lamps are protected from water ingress with a two-stage system that incorporates ultrasonic welding and a two-part epoxy glue.
Specifications
Technical Information
| INPUT VOLTAGE RANGE | 12V |
|---|---|
| CURRENT DRAW | 0.13A at 12V (Indicator/Stop), 0.03A at 12V (Tail), 0.08A at 12V (Licence Plate), 0.04A at 12V (Marker Lamps) |
| IP RATING | IP66 and IP68 |
| SIZE | 80mm (W) x 150mm (L) x 28mm (H) |
| ADR | 6/00 (cat 2a), 45/00, 47/00, 48/00, 49/00 |
| COMPRISES | 1x 12V L.E.D slimline rear stop/tail, direction indicator lamp with in-built retro reflector, 0.5m lead and waterproof connector (93730); 1x 12V L.E.D slimline rear stop/tail, direction indicator with licence plate lamp and in-built retro reflector, 0.5m lead and waterproof connector (93734); 2x 12V L.E.D slimline side marker lamp (red/amber) with 0.5m lead and waterproof connector (91332); 1x 7 pin flat trailer plug with 1m lead and waterproof connector (82142); 1x 7 pin large round trailer plug with 1m lead and waterproof connector (82183); 1x 'Plug and Play' boat trailer harness with waterproof connectors; |
Downloads
Get the latest information
MODEL 37 12V LED PLUG AND PLAY TRAILER LAMP KIT (SUBMERSIBLE) FOR BOAT TRAILERS
Narva Model 35 and Model 37 Trailer Lamps Brochure
