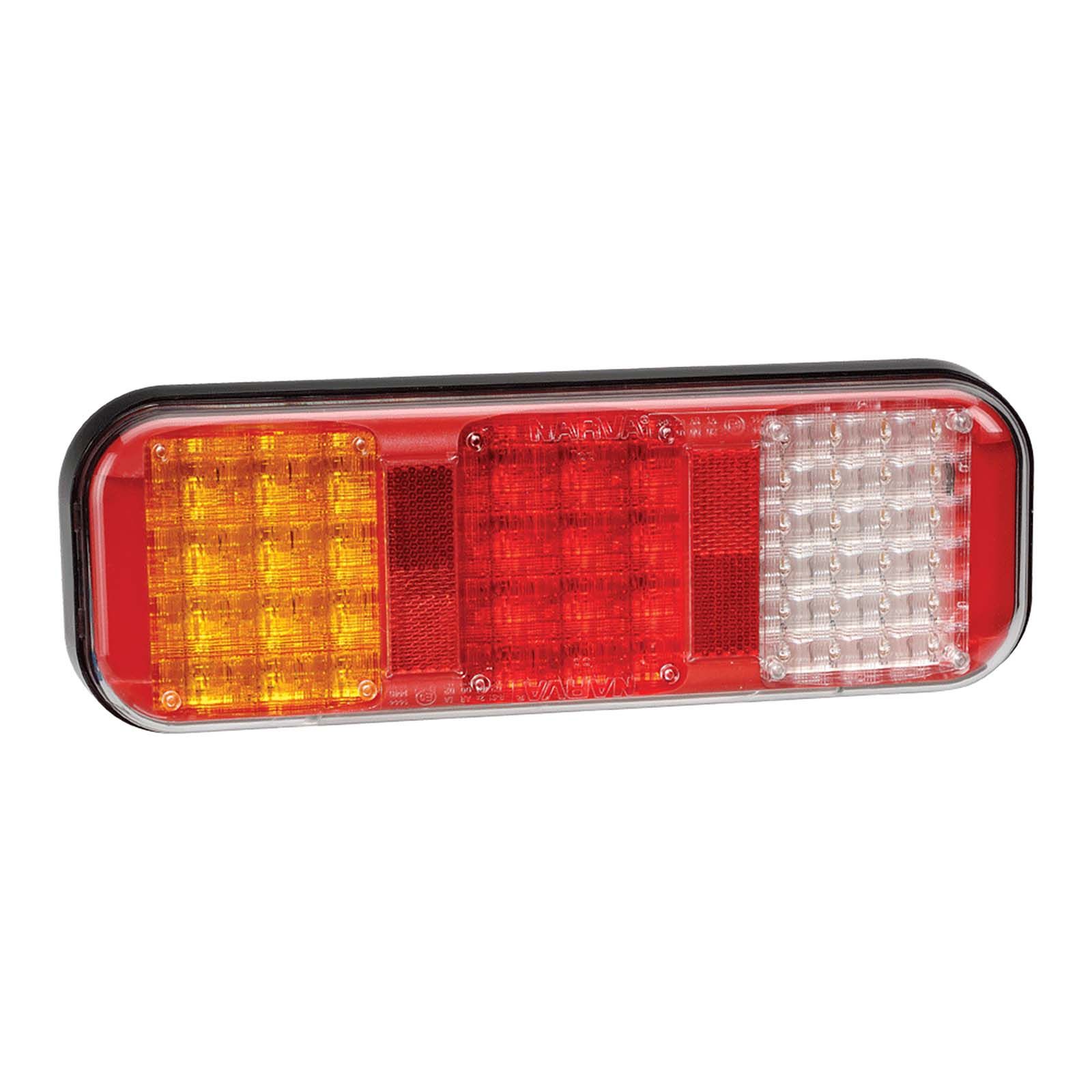

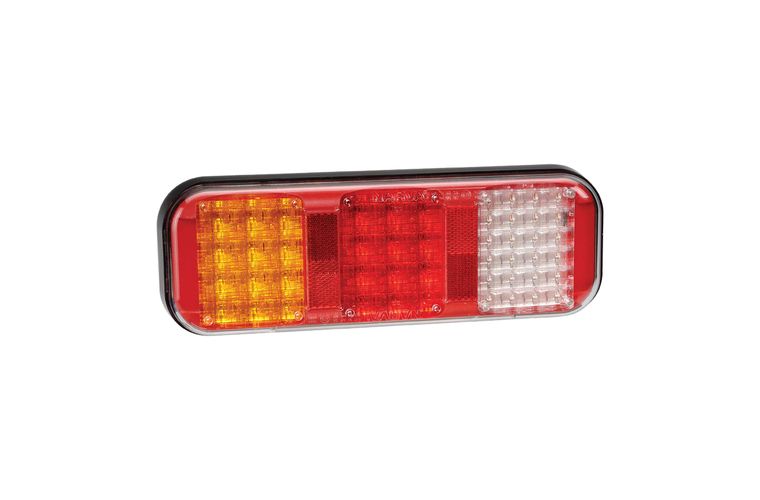

9-33 VOLT MODEL 42 LED REAR STOP/TAIL DIRECTION INDICATOR AND REVERSE LAMP
Part No. 94210
RRP $288.40 AUD Inc GST
RRP $288.40 AUD Inc GST
A fresh, modern, low profile design with virtually unbreakable polycarbonate lenses,
built in retro-reflectors, stainless steel fittings and 0.5m of hard-wired cable.
A fresh, modern, low profile design with virtually unbreakable polycarbonate lenses,
built in retro-reflectors, stainless steel fittings and 0.5m of hard-wired cable.
Specifications
Technical Information
| INPUT VOLTAGE RANGE | 9-33 Volt |
|---|---|
| CURRENT DRAW | Indicator: 0.37A, Stop: 0.36A, Tail: 0.10A, Reverse: 0.60A |
| IP RATING | IP66 & IP68 |
| SIZE | 284 x 100mm |
| CANDELA RATING | 57 |
| ADR | 1/00 36685, 6/00 36683 (cat 2a), 47/00 36682, 49/00 36696 |
Dimensions
