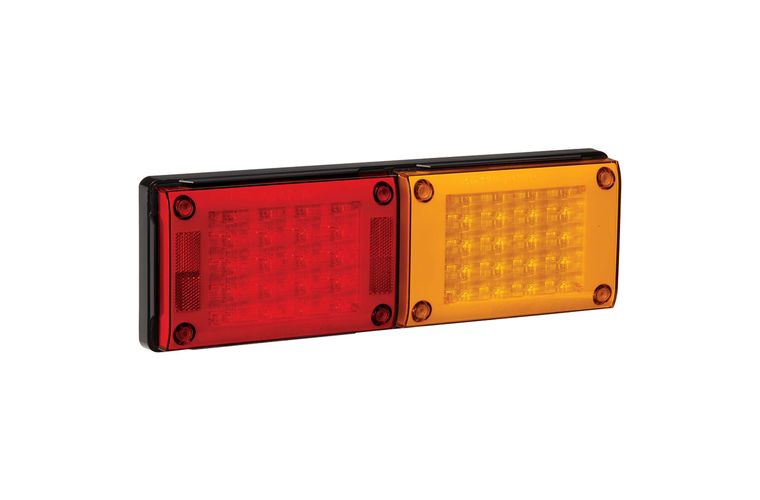

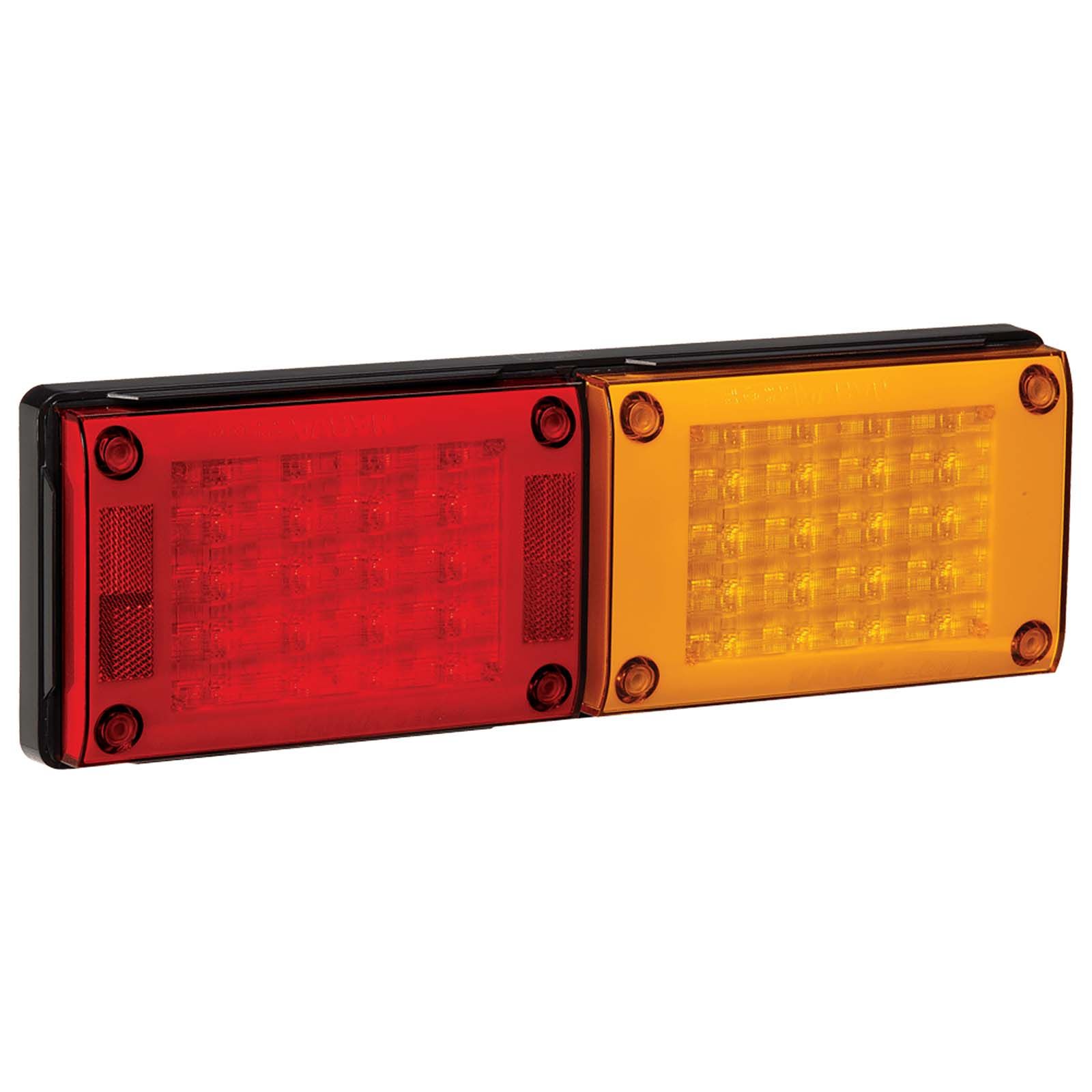

9-33 VOLT MODEL 48 LED REAR DIRECTION INDICATOR AND STOP/TAIL LAMP
Part No. 94840
RRP $280.00 AUD Inc GST
RRP $280.00 AUD Inc GST
Model 48 L.E.D lamps, commonly referred to as “Jumbos” are arguably the most popular
rear combination lamp design in Australasia.
Model 48 L.E.D lamps, commonly referred to as “Jumbos” are arguably the most popular
rear combination lamp design in Australasia.
Specifications
Technical Information
| INPUT VOLTAGE RANGE | 9-33 Volt |
|---|---|
| CURRENT DRAW | Indicator: 0.42A, Stop/Tail: 0.22/0.02A |
| IP RATING | IP66 and IP68 |
| SIZE | 400 x 131mm |
| CANDELA RATING | 63 |
| ADR | 6/00 2a-E9-01.1938, 47/00 1B-E9-02.1535, 49/00 R1-S1-E9-02.6594 |
| COMPRISES | 94800; 94808; 94893; |
Dimensions
