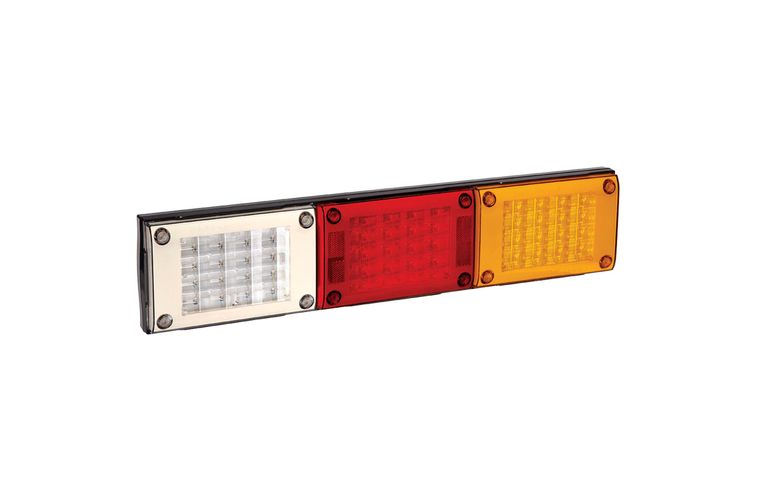

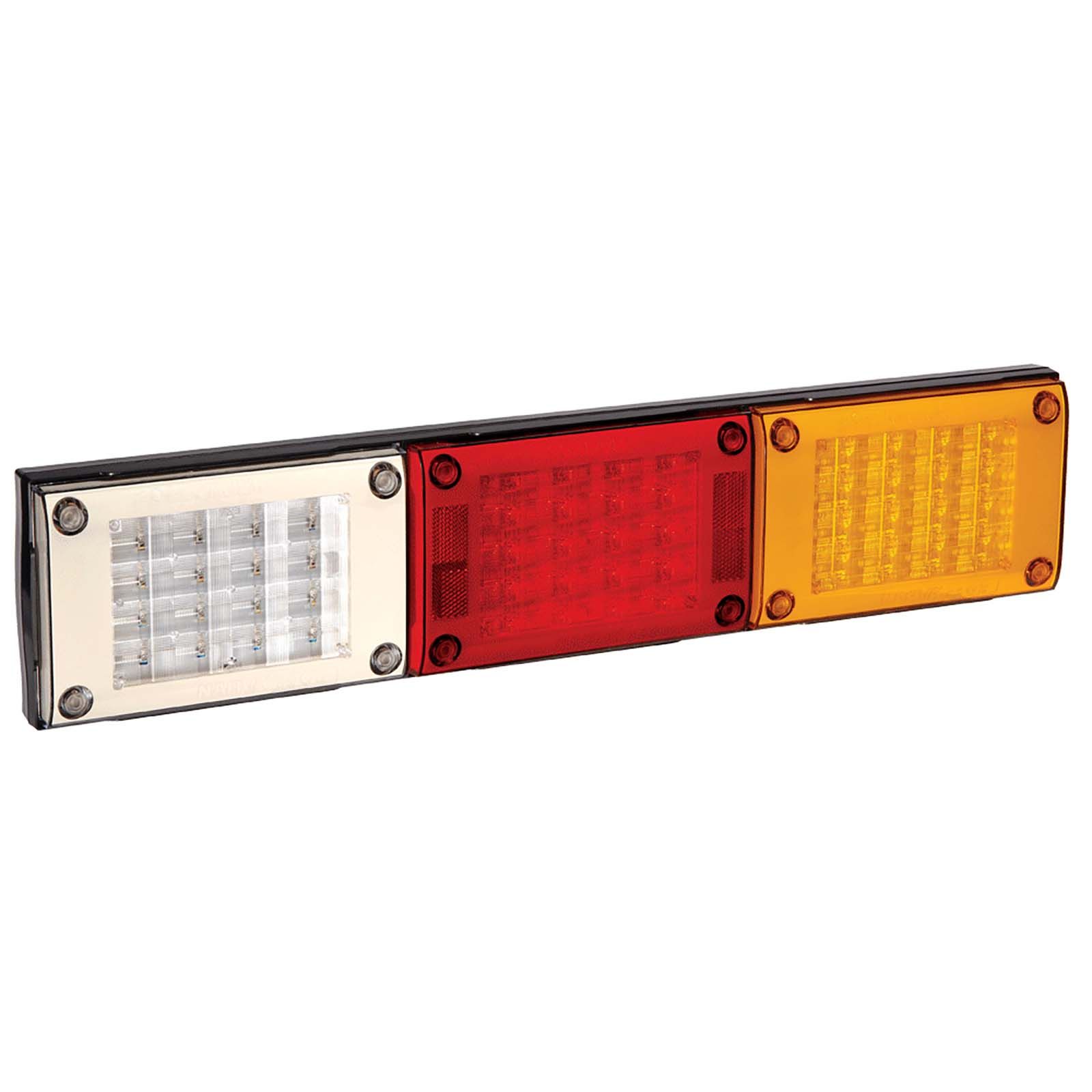

9-33V MODEL 48 LED REVERSE STOP/TAIL AND REAR DIRECTION INDICATOR LAMP HORIZONTAL MOUNTI
Part No. 94856H
RRP $417.15 AUD Inc GST
RRP $417.15 AUD Inc GST
Model 48 L.E.D lamps, commonly referred to as “Jumbos” are arguably the most popular
rear combination lamp design in Australasia.
Model 48 L.E.D lamps, commonly referred to as “Jumbos” are arguably the most popular
rear combination lamp design in Australasia.
Specifications
Technical Information
| INPUT VOLTAGE RANGE | 9-33 Volt |
|---|---|
| CURRENT DRAW | Indicator: 0.42A, Stop/Tail: 0.22/0.02A, Reverse: 0.32A |
| IP RATING | IP66 and IP68 |
| SIZE | 601 X 131mm |
| CANDELA RATING | 83 |
| ADR | 1/00 AR-E9-00-1154, 6/00 2a-E9-01.1938, 47/00 1B-E9-02.1535, 49/00 R1-S1-E9-02.6594 |
| COMPRISES | 94800; 94808; 94816H; 94896; |
Dimensions
