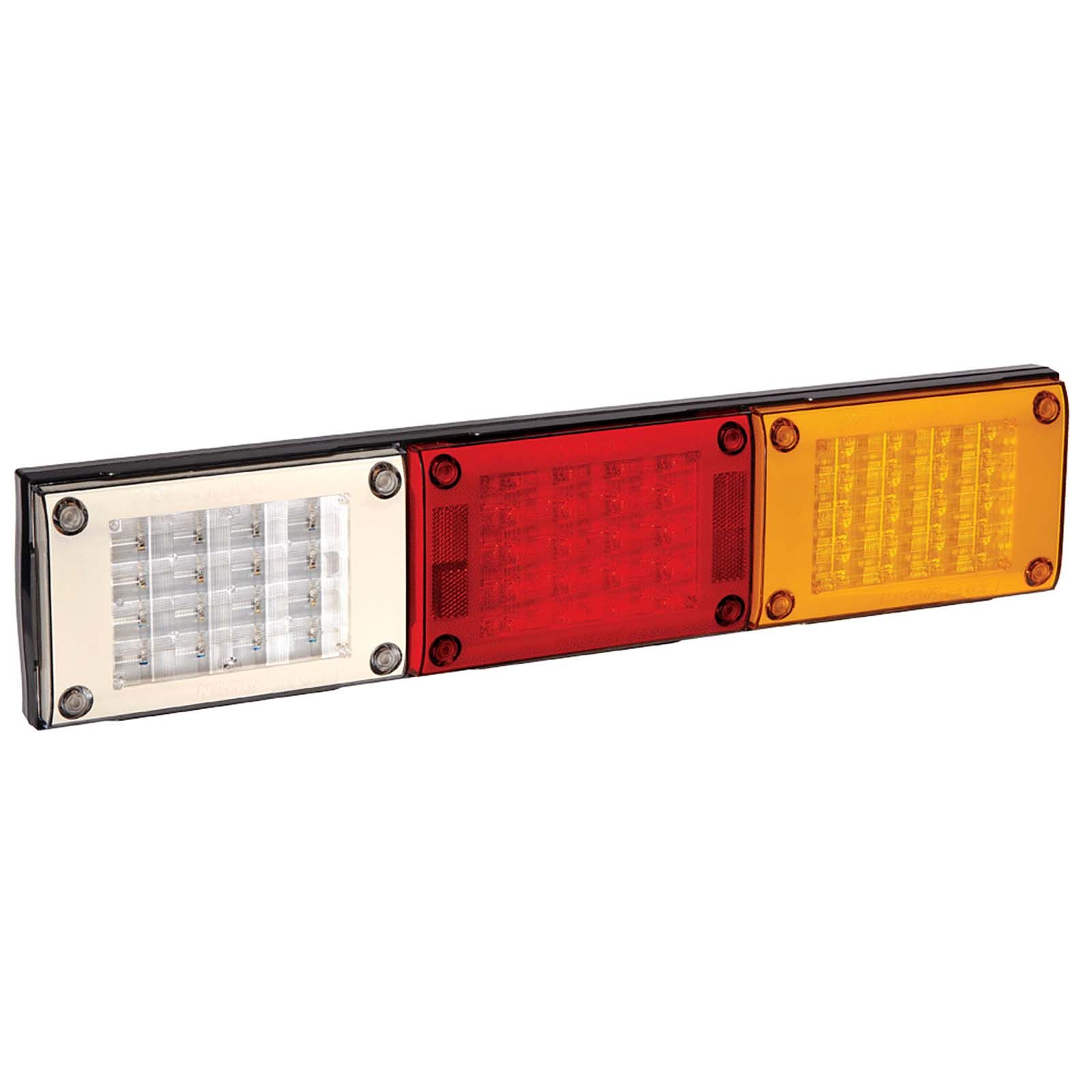

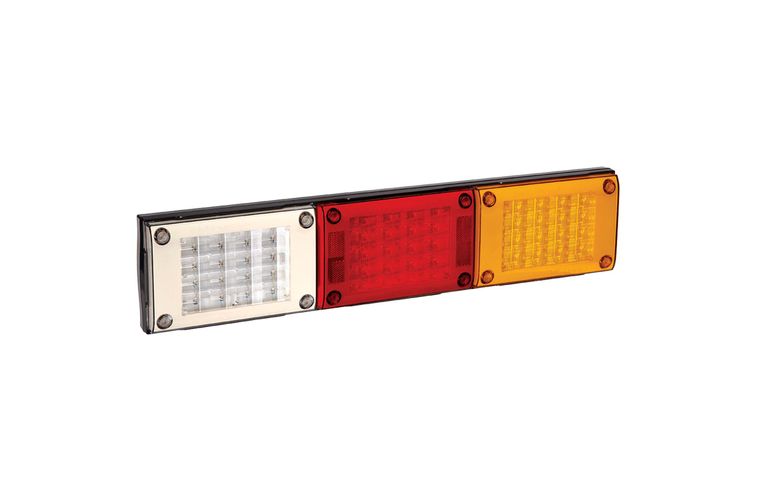

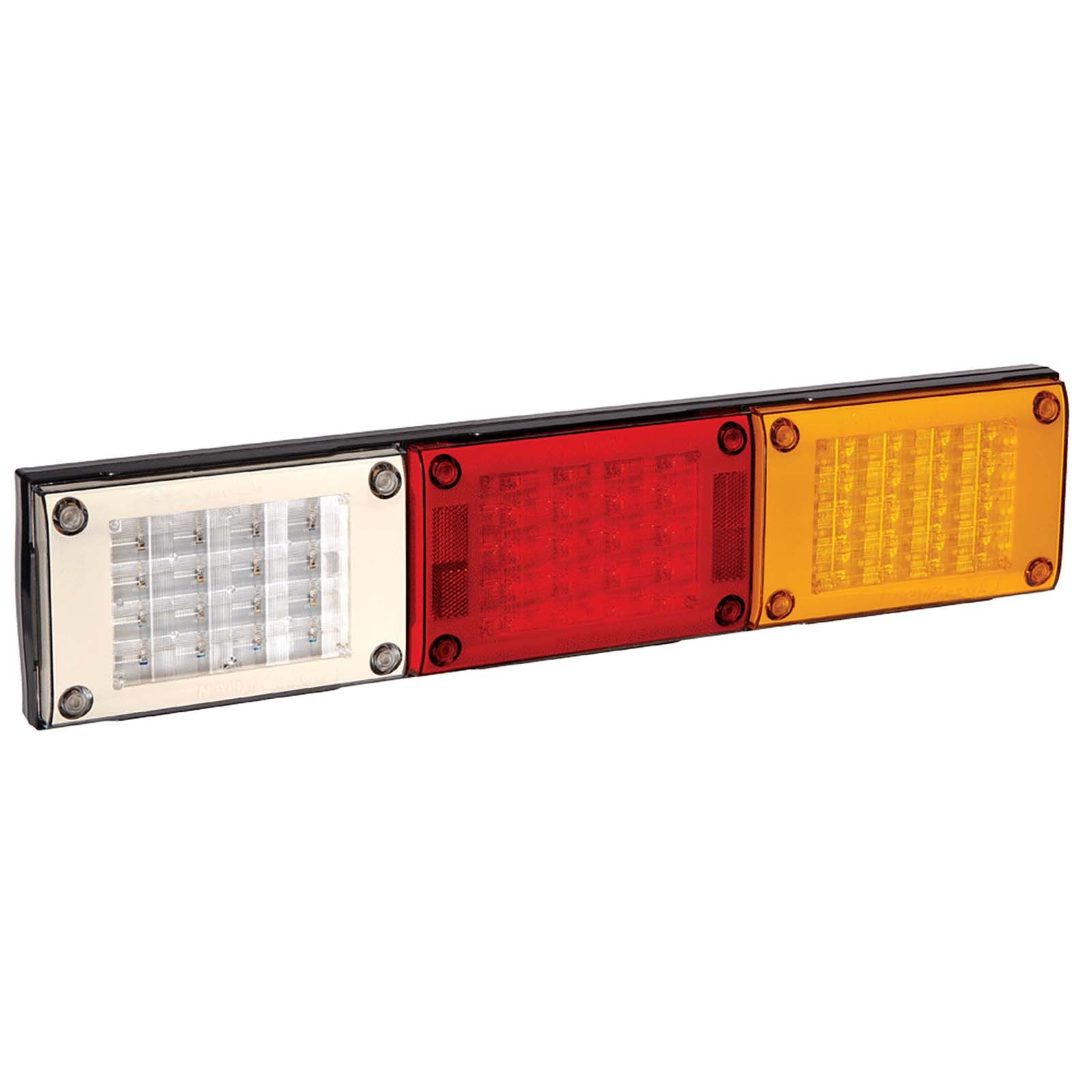

Model 48 L.E.D lamps, commonly referred to as “Jumbos” are arguably the most popular
rear combination lamp design in Australasia.
Specifications
Technical Information
INPUT VOLTAGE RANGE | 9-33 Volt |
---|---|
CURRENT DRAW | Indicator: 0.42A, Stop/Tail: 0.22/0.02A, Reverse: 0.32A |
IP RATING | IP66 and IP68 |
SIZE | 601 X 131mm |
CANDELA RATING | 83 |
ADR | 1/00 AR-E9-00-1155, 6/00 2a-E9-01.1938, 47/00 1B-E9-02.1535, 49/00 R1-S1-E9-02.6594 |
COMPRISES | 94800; 94808; 94816V; 94896; |
