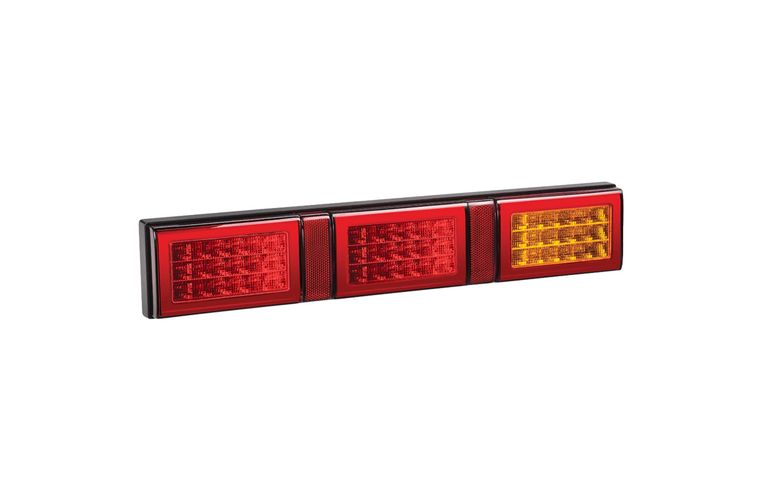

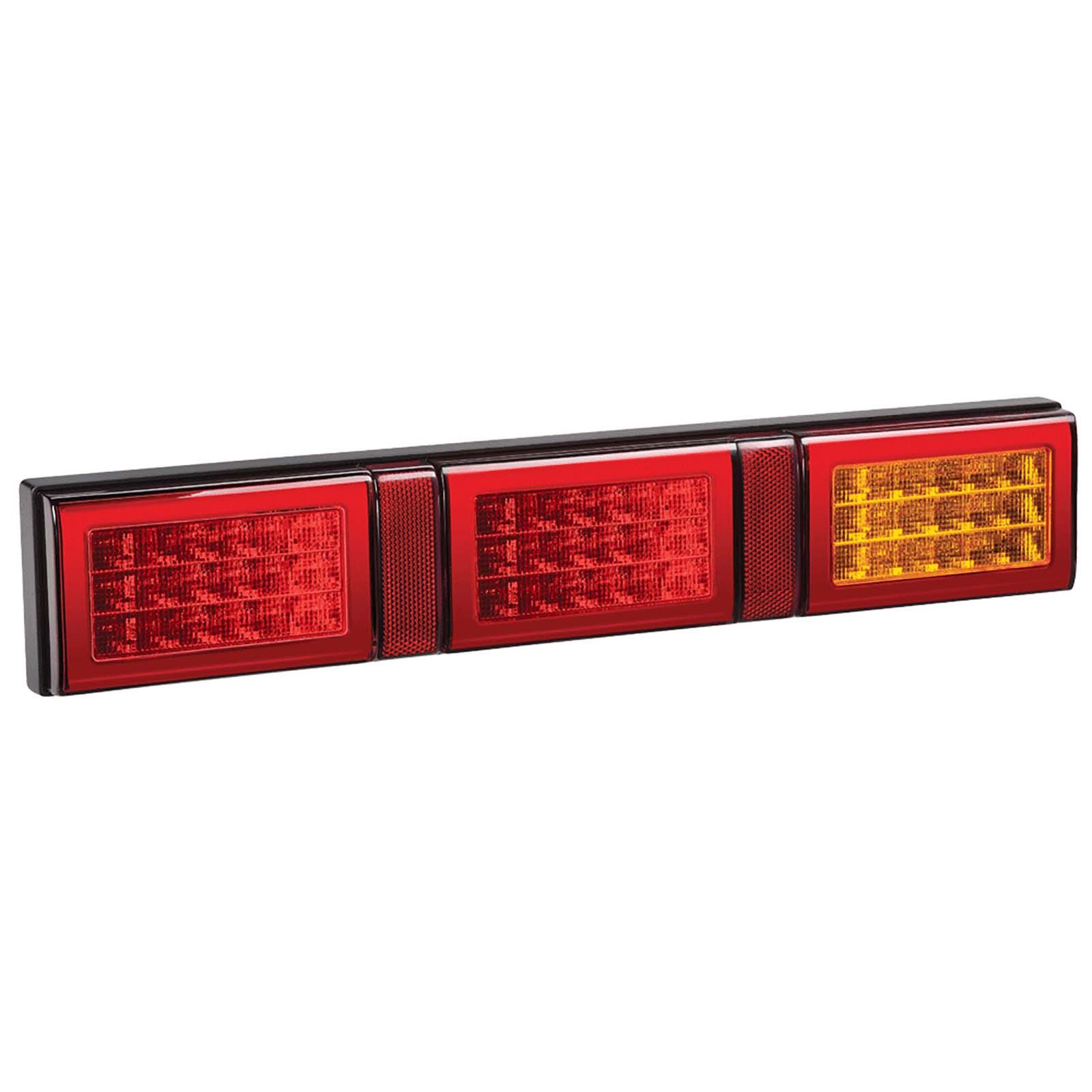

9-33 VOLT MODEL 49 LED REAR DIRECTION INDICATOR, TWIN STOP LAMPS AND TRIPLE TAIL LAMPS
Part No. 94950
RRP $330.75 AUD Inc GST
RRP $330.75 AUD Inc GST
The most popular rear combination lamp referred to as the ‘Jumbo’ lamp has dominated the transport
industry in Australasia. The Model 49 fits the same footprint as its predecessor the Model 48, &
features a continuous ‘Neon’ like LED light-pipe framing the lamp’s borders, meeting the ADR
performance regulation for tail lamps. The stop, indicator & reverse functions are activated on the
inside of the tail lamp with high quality optics to gain the attention of those following.
The most popular rear combination lamp referred to as the ‘Jumbo’ lamp has dominated the transport
industry in Australasia. The Model 49 fits the same footprint as its predecessor the Model 48, &
features a continuous ‘Neon’ like LED light-pipe framing the lamp’s borders, meeting the ADR
performance regulation for tail lamps. The stop, indicator & reverse functions are activated on the
inside of the tail lamp with high quality optics to gain the attention of those following.
Specifications
Technical Information
INPUT VOLTAGE RANGE | 9-33 Volt |
---|---|
CURRENT DRAW | Indicator: 0.3A, Stop: 0.3A, Tail: 0.34A, Reverse: 0.18A |
SIZE | 600 x 110mm |
CANDELA RATING | 30 |
ADR | 6/00 2a.E9-01.16424, 47/00 1A-E9-02.6612, 49/00 R1-S1-E9-02.16425 |
COMPRISES | 94900; 94908; 94990; 94996; |
