Engineered to be smarter, Ultima MK3 High Powered Driving Lights aren’t just an upgrade — they’re a leap forward in control, power, and performance.
Up to 20% brighter.
100% more control.
The Ultima MK3 range boasts up to 20% more output, while seamless integration with the Ultima Connect+ Controller means you can fine-tune your light intensity and beam shape with precision for optimal visibility in every driving scenario.
Available in 180 and 215, the Ultima MK3 ‘Hybrid Beam’ driving lights provide increased width and distance while the new Ultima MK3 215 ‘Spot Beam’ light produces extraordinary distance for highway driving.

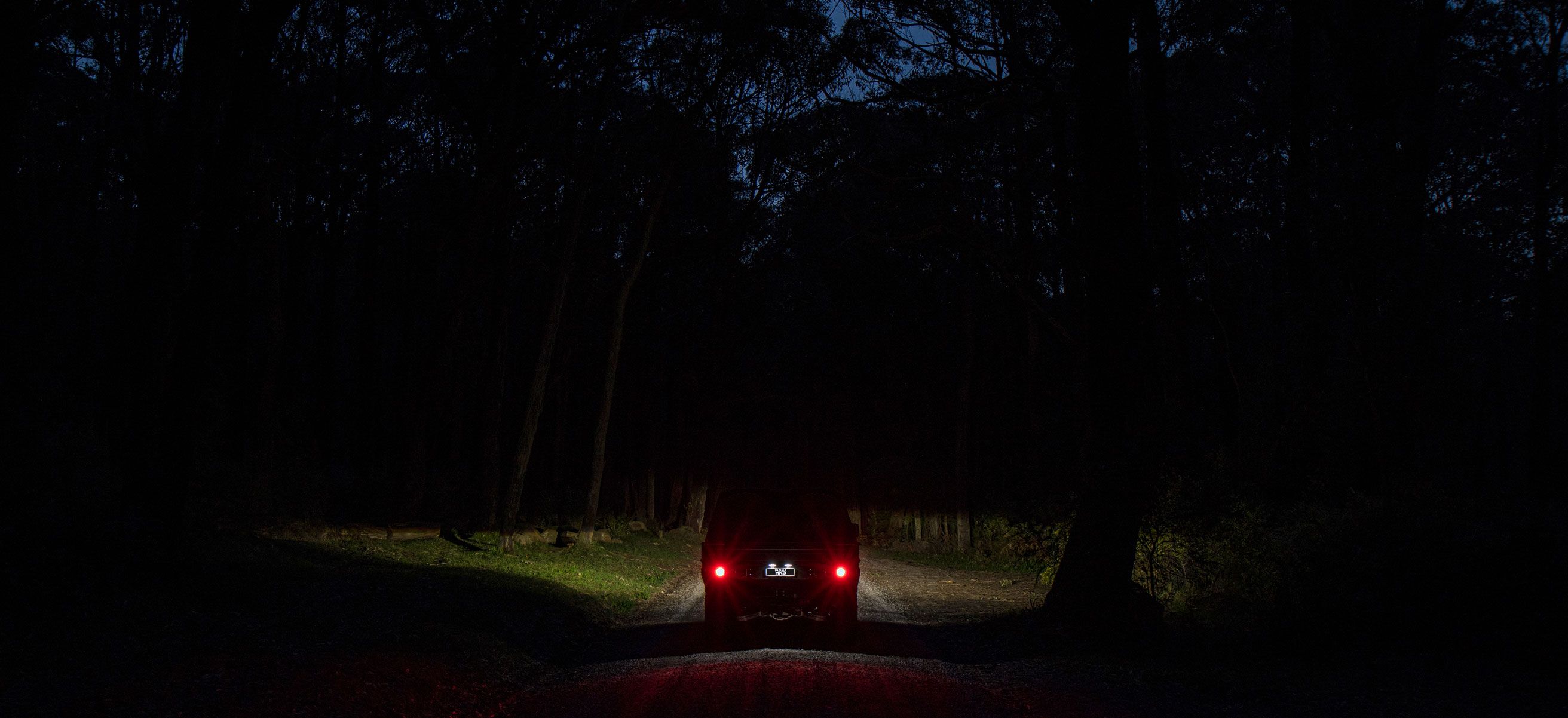

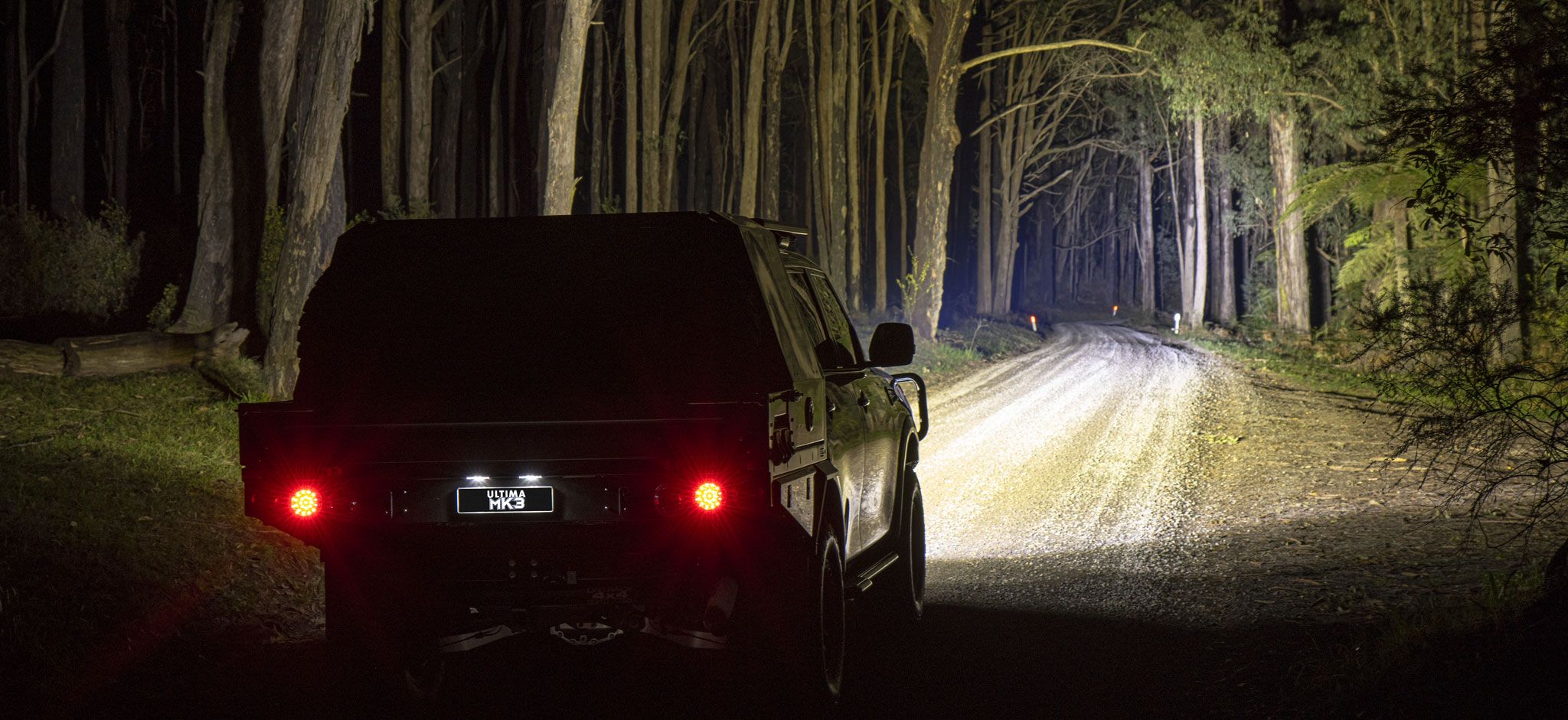

See the difference for yourself
Engineered for performance
Ultima MK3s broad, penetrating 5700°K white light offers superior visibility without dark or hot spots.
Outputing 20% more effective lumen figures than the previous MK2 model, once connected to an Ultima Connect+ Controller they’ll deliver an additional 10% on top of that in boost mode.
The popular ‘Hybrid Beam’ driving lights provide a leading combination of width and distance. In addition, the all-new Ultima MK3 215 ‘Spot Beam’ option is perfect for long-range visibility, delivering an impressive distance of up to 1,500m.

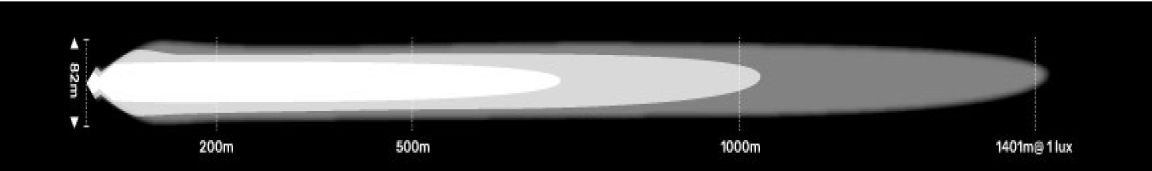

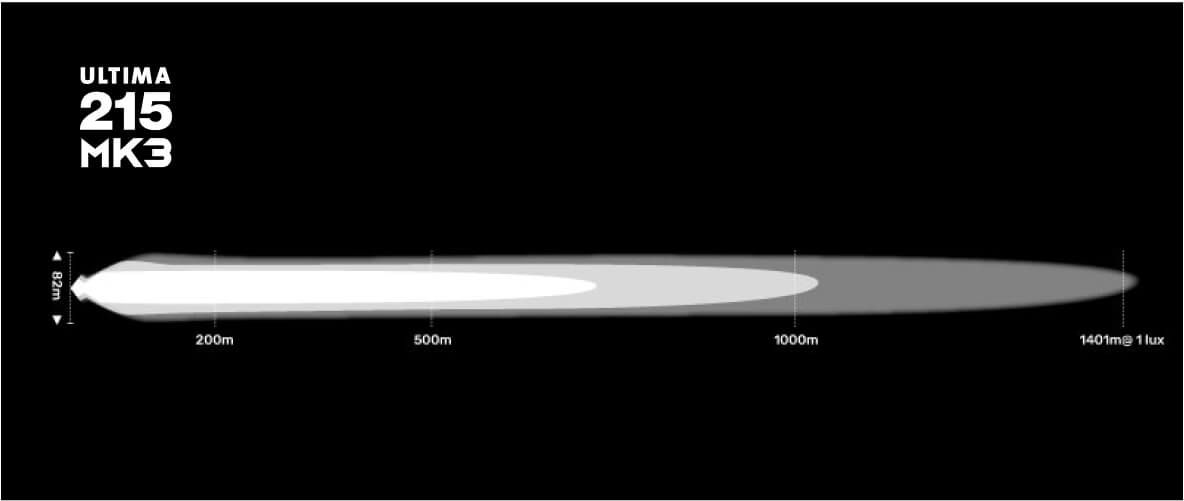

Ultima 215 MK3 hybrid beam options

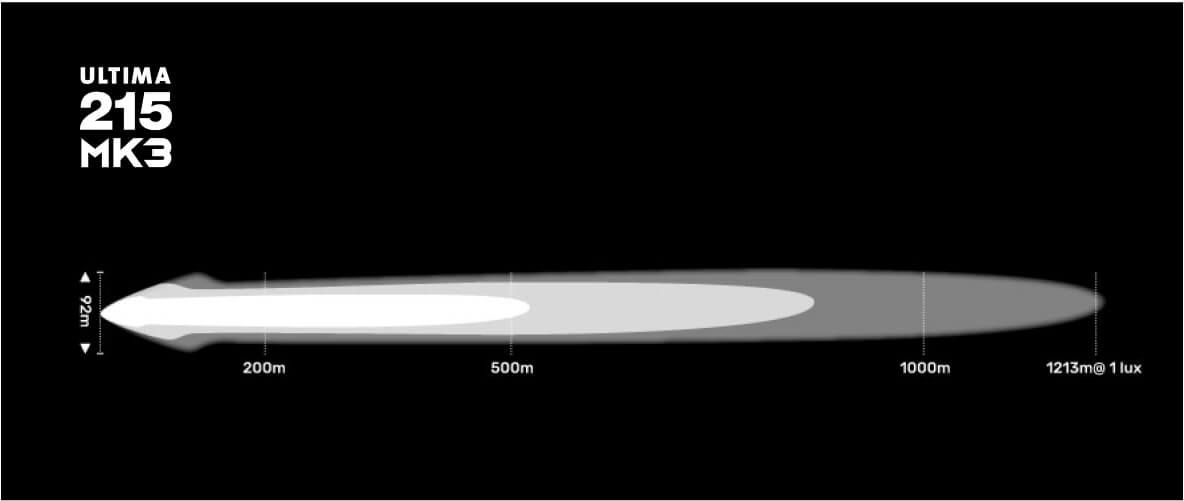

Ultima 215 MK3 spot beam options

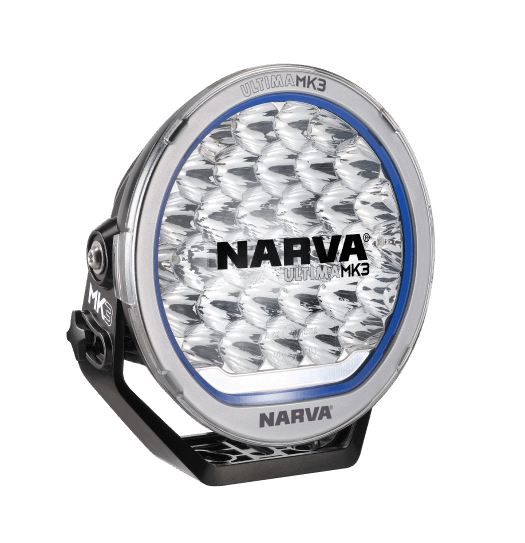

Engineered for durability
Ultima MK3 driving lights are built to endure the harshest environments with robust construction in the form of a single piece pressure die-cast housing, and virtually unbreakable UV-resistant hard-coated polycarbonate lenses and lens protectors.
Equipped with an over-moulded Deutsch® connector on a flying lead, and a GORE-TEX® breather vent to prevent moisture build-up, the lights are fully sealed with maximum IP68 and IP69K ratings protecting against dust, water, and vibration.
Internally, a built-in ‘Active Thermal Management System’ enables the OSRAM LEDs to run harder for longer without losing light output to heat.
1. CLEAR UV-RESISTANT HARD-COATED POLYCARBONATE LENS AND LENS PROTECTOR
2. INTERCHANGEABLE COLOUR TRIMS (ELECTRIC BLUE SHOWN)
3. 5 WATT OSRAM LEDS
4. LED FRONT POSITION LIGHT
5. INTERCHANGEABLE BLACK OR SATIN BEZEL (BLACK SHOWN)
6. 6 PIN DEUTSCH® CONNECTOR ON 500MM FLYING LEAD
7. GORE-TEX® BREATHER VENT Breather Vent
8. THREE BOLT MOUNTING WITH STAINLESS STEEL HARDWARE
9. PRESSURE DIE-CAST ALUMINIUM HOUSING
10. PRESSURE DIE-CAST MOUNTING BRACKET
11. TOOL FREE VERTICAL ADJUSTMENT
12. POLYURETHANE MOUNTING AND SUSPENSION SYSTEM
Lifetime “No Fault” Warranty
We’re so confident in the reliability and durability of Ultima MK3, that the range is backed by a ground-breaking lifetime replacement warranty covering product defects, chemical damage, UV-related damage, and even impact damage caused by a vehicle collision.*
* Intentional misuse or abuse of a product is not covered by the lifetime ‘no fault’ warranty. We reserve the right to review and assess all warranty claims. Warranty is non-transferable. Proof of purchase may be requested.
Engineered for control
The innovative Ultima Connect+ Controller (sold separately) allows you to take full command by tailoring the light intensity and beam shape of your Ultima MK3s to suit any driving conditions. Whether you need added distance, spread, or even a power boost, you can easily preset and adjust your settings for maximum visibility.

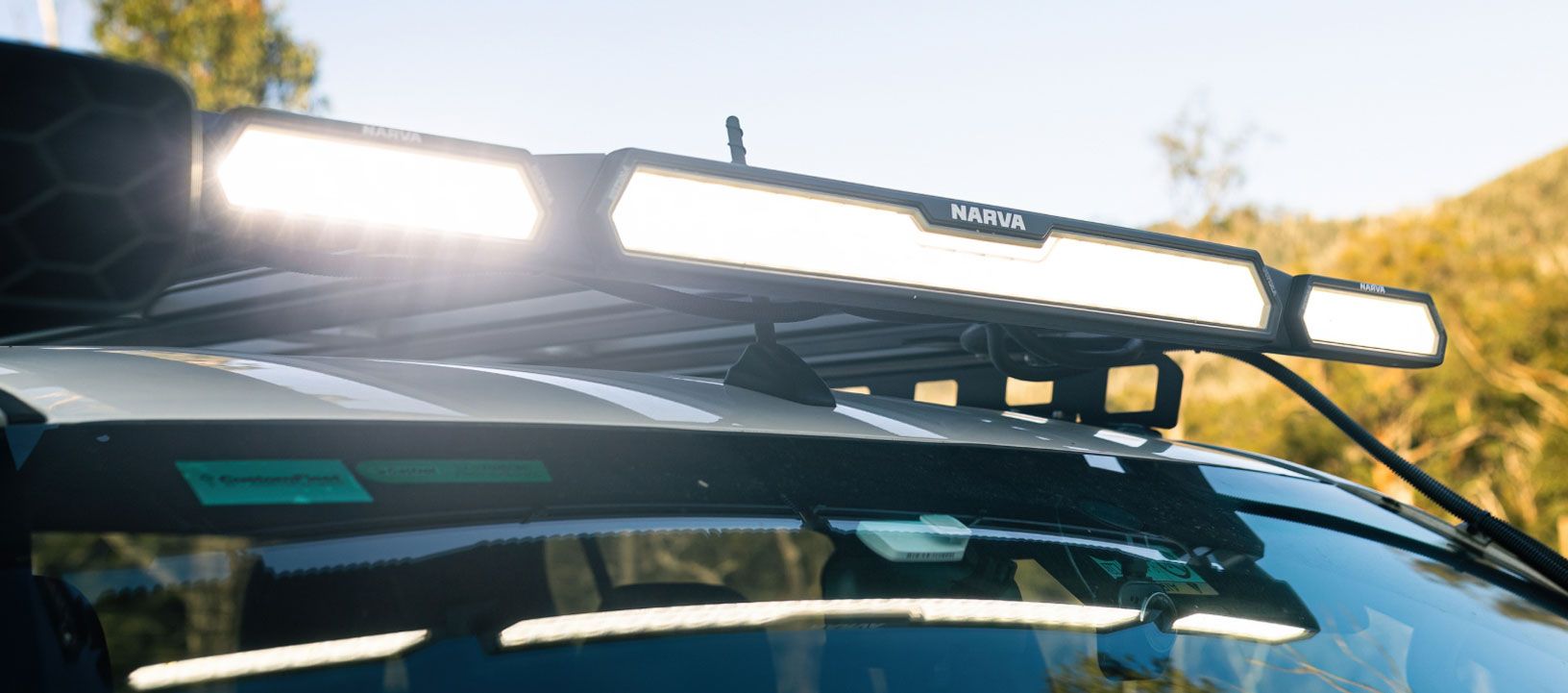

Now you can independently manage your Ultima MK3 hybrid and spot beam driving lights, as well as your Ultima light bars, all from one, easy to install, dash-mounted controller.
Engineered for you
Crafted with Narva’s signature style, Ultima MK3s match the latest Ultima light bar range and allow you to customise their look to suit your vehicle.

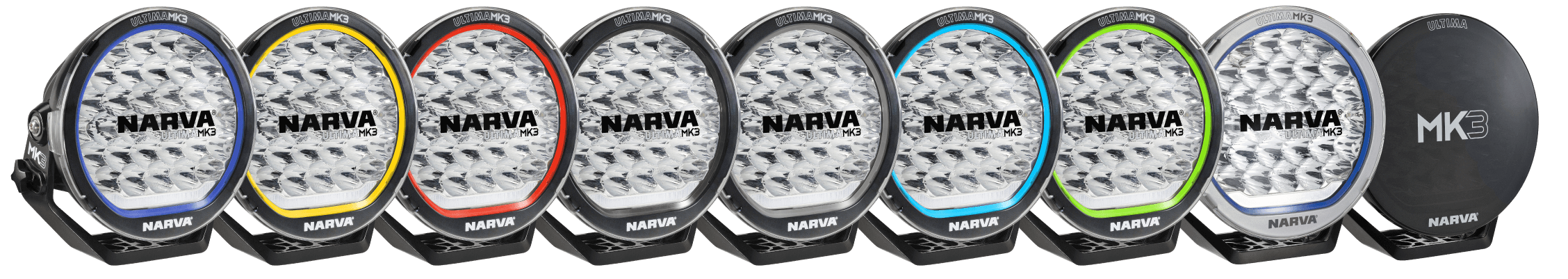

Select between satin or black bezels, 7 interchangeable trim colours and clear, dark tint, or ‘Selective Yellow’ protectors to enhance performance and aesthetics.
Ultima MK3 driving lights come with a pre-selection of customisation accessories in the box and additional accessories are available for free via redemption.

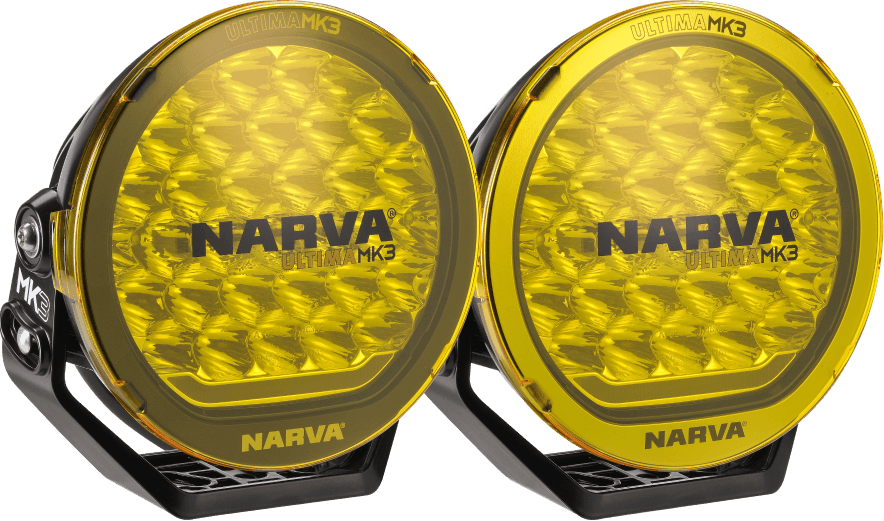

All-new Narva Selective Yellow lens protectors

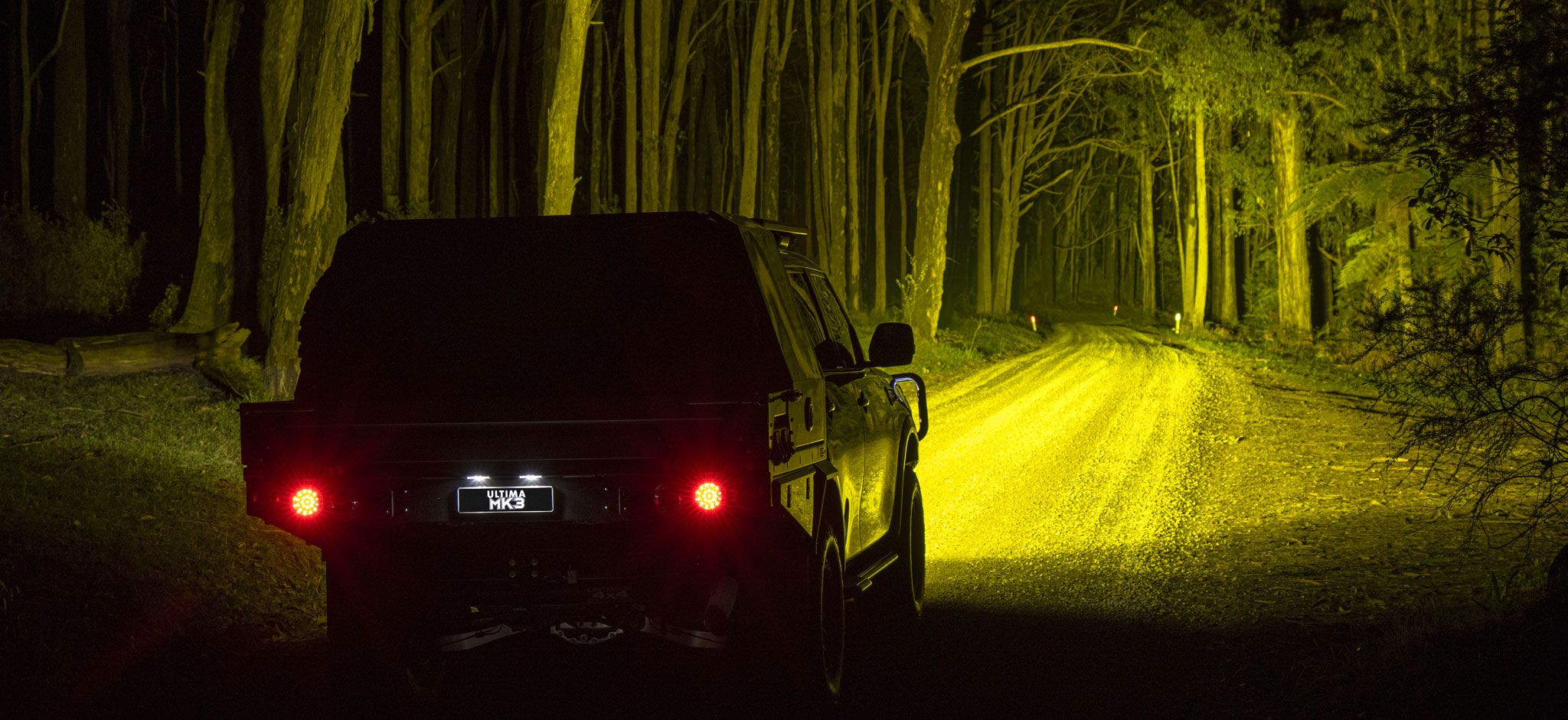

Narva’s new ‘Selective Yellow’ lens protectors are proven to enhance performance in challenging conditions.
- Reduced colour temperature to improve visibility
- Ideal for dust, fog, haze, and other adverse conditions
- Less than 10% reduction in output, compared to over 20% reduction from competitor’s amber covers.

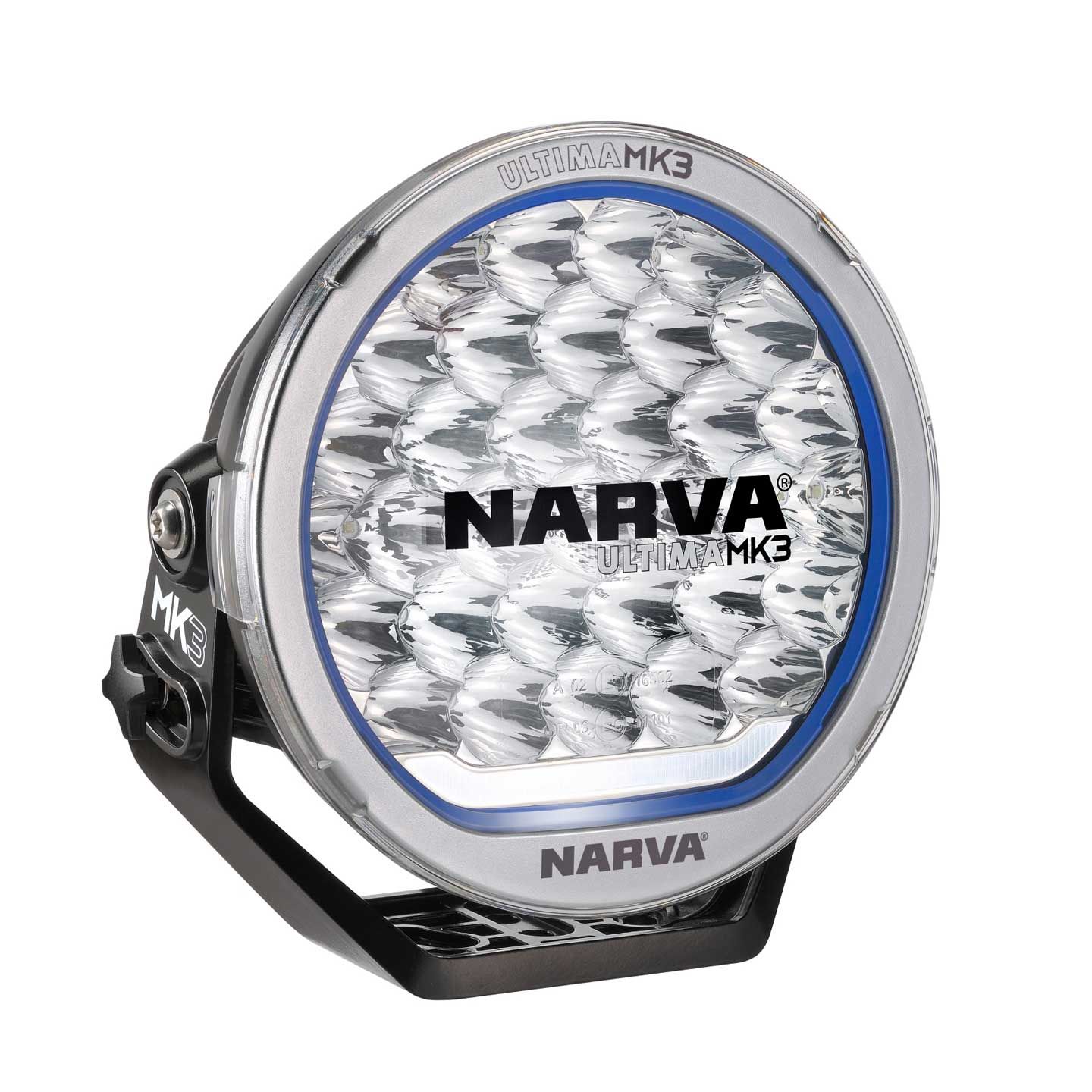

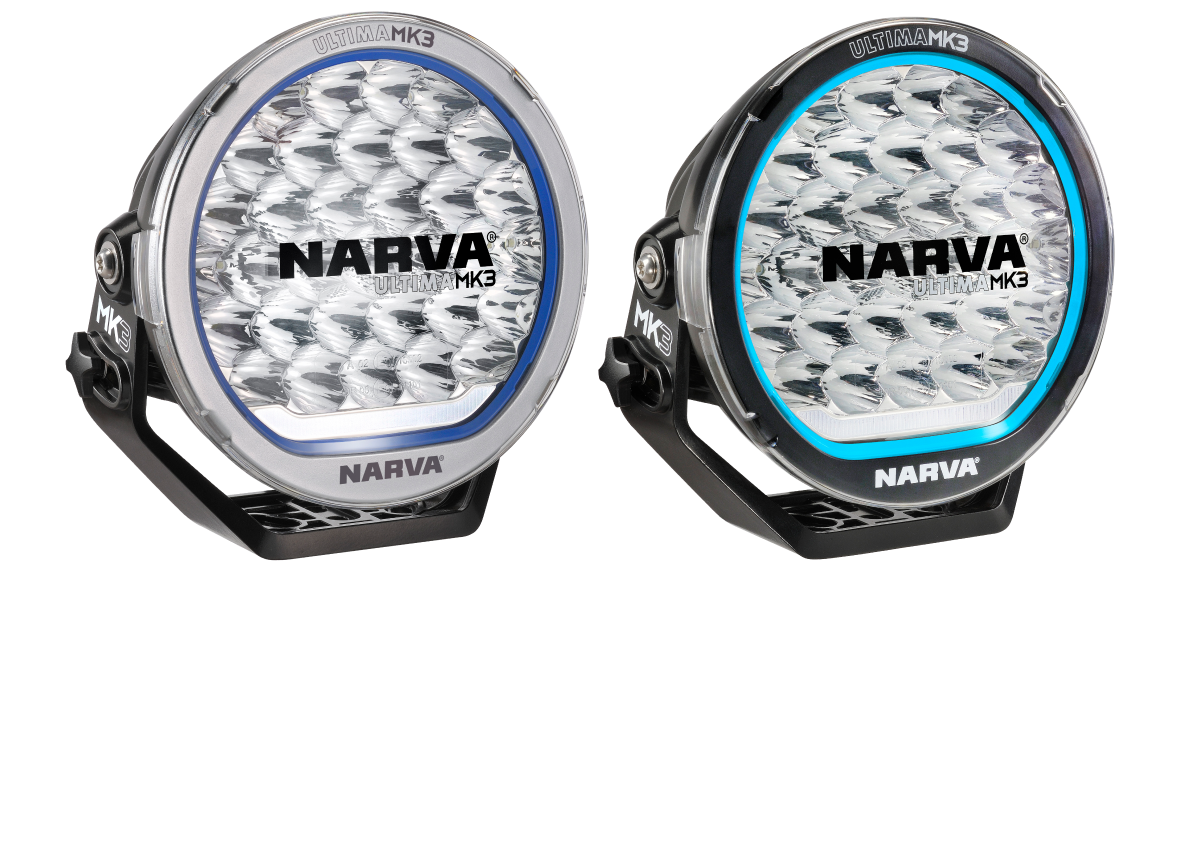

Ultima MK3 215
The Ultima MK3 215 comes in hybrid or spot beam options. The hybrid beam offers effective lumens per lamp of 18,092Lm in standard mode and 19,012Lm in ‘Boost’ mode. The spot beam pushes the limits with 18,748Lm in standard mode and 20,157Lm in ‘Boost’ mode.
Choose from the black hybrid beam plug & play twin driving light kit, single satin hybrid beam driving light, single satin spot beam driving light, or the all-new transport industry plug & play quad driving light kit.
Specifications Comparison
|
Ultima MK3 180 Satin Hybrid Beam Single |
Ultima MK3 180 Black Hybrid Beam Kit |

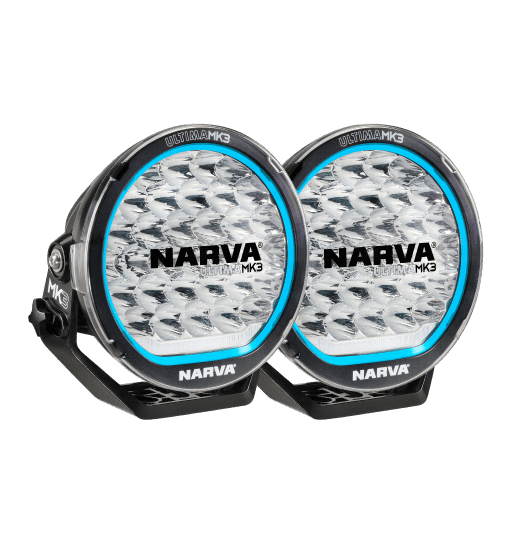

Ultima MK3 215 Black Hybrid Beam Kit |
Ultima MK3 215 Satin Hybrid Beam Single |
Ultima MK3 215 Satin Spot Beam Single |
Ultima MK3 215 Satin Transport Kit |
|
|---|---|---|---|---|---|---|
| IP Rating: | IP68 + IP69K | IP68 + IP69K | IP68 + IP69K | IP68 + IP69K | IP68 + IP69K | IP68 + IP69K |
| Current Draw: | 9.45A at 13.5V |
18.9A at 13.5V (Pair) |
29.8A at 13.5V (Pair) |
14.9A at 13.5V | 20.6A at 13.5V | 71A at 12V |
| Design Registration Number: | 201610579 | 201610579 | 201610579 | 201610579 | 201610579 | 201610579 |
| Effective Lumens (per lamp): |
11,261Lm/12,463Lm (Boost) |
11,261Lm/12,463Lm (Boost) |
18,092Lm/19,012Lm (Boost) |
18,092Lm/19,012Lm (Boost) |
18,748Lm/20,157Lm (Boost) |
73,680Lm/78,338Lm (Boost) |
| Colour Temperature: | 5700°K | 5700°K | 5700°K | 5700°K | 5700°K | 5700°K |
| Operating Temperature: | -40°C to +65°C | -40°C to +65°C | -40°C to +65°C | -40°C to +65°C | -40°C to +65°C | -40°C to +65°C |
| LED type: | 5W Osram | 5W Osram | 5W Osram | 5W Osram | 10W Cree |
5W Osram/ 10W Cree |
| Part Number: | 71732 | 71734 | 71744 | 71742 | 71745 | 71748 |
| Supersedes: |
71730S, 71730BK |
71742BK | 71742BK | 71740S, 71740BK |
* Intentional misuse or abuse of a product is not covered by the lifetime ‘no fault’ warranty. We reserve the right to review and assess all warranty claims. Warranty is non-transferable. Proof of purchase may be requested.
^ After purchase, Ultima MK3 customers can order one (1) additional set of outer bezel covers (Black or Satin), one (1) additional set of colour trims (Narva Blue, Yellow, Red, Black, Electric Blue, Hyper Green and Slate Grey), and one (1) additional set of lens protectors (Selective Yellow or Stealth Tint) at no additional cost, while stocks last. Proof of purchase is required.
