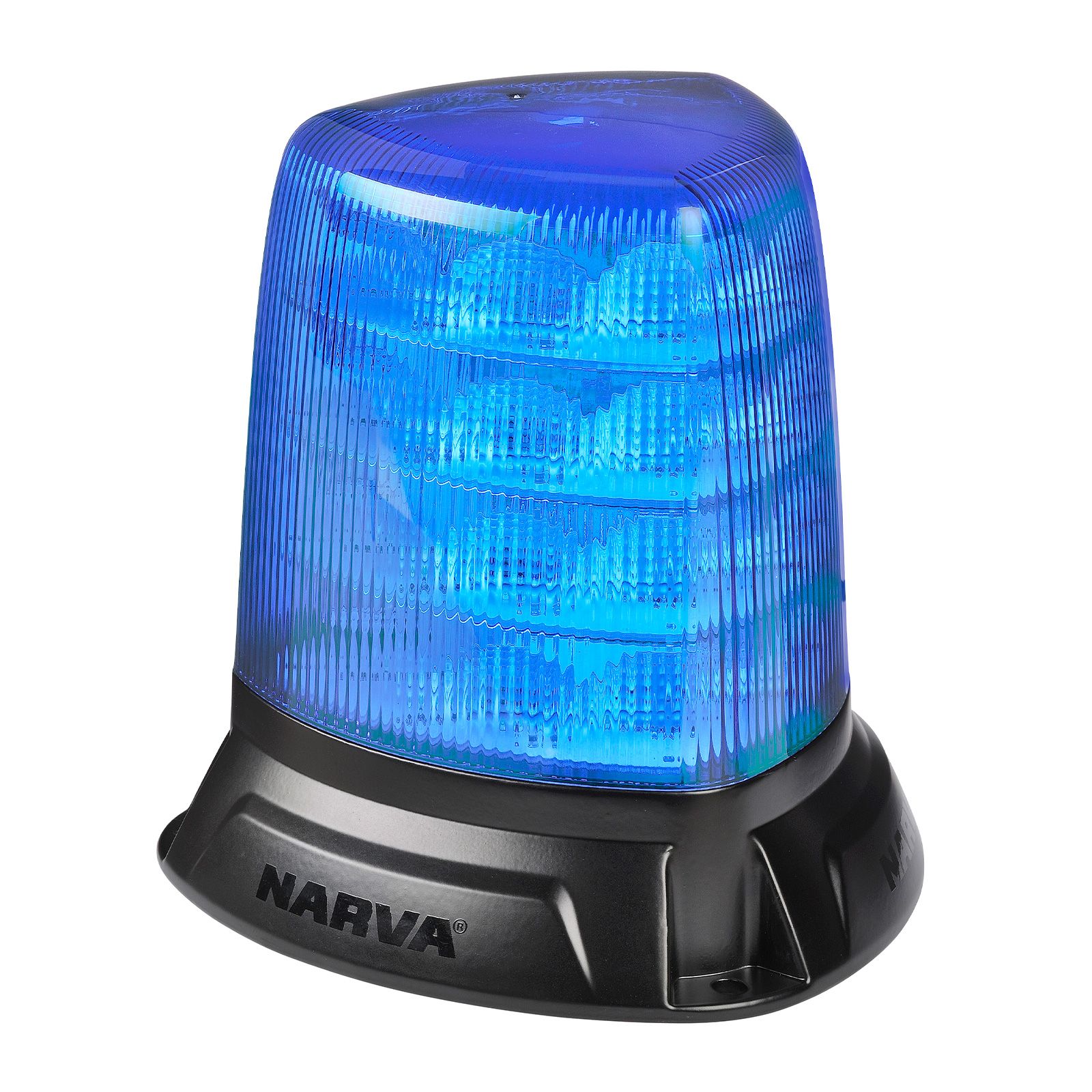

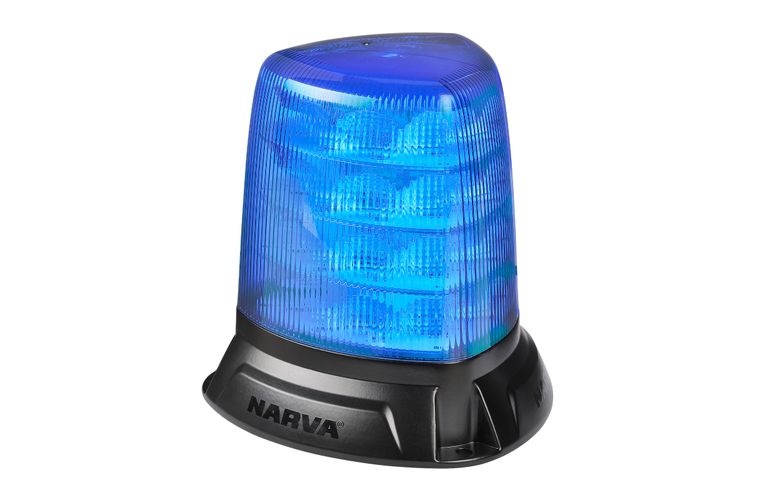

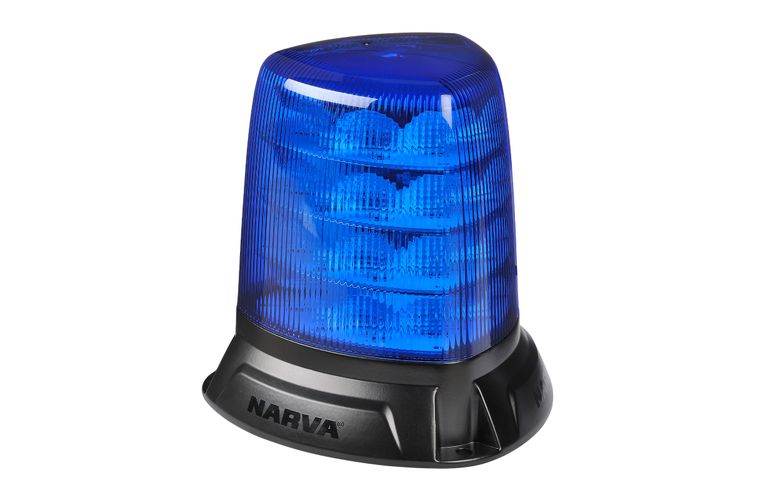

Aerotech® Heavy Duty Tall Blue LED Strobe (Flange)
Part No. 85620B
Building on our revolutionary AeroTech® strobe DNA, Narva Aerotech® Heavy Duty LED strobes are even
more visible, durable, and adaptable than their smaller siblings. With a larger profile and greater
light output, AeroTech® Heavy Duty strobes are ideal for larger vehicles. A tough new base and lens
seal allows AeroTech® Heavy Duty strobes to thrive in the harshest environments, including above and
below ground mine sites. With four different colour options, AeroTech® Heavy Duty strobes cover
Building on our revolutionary AeroTech® strobe DNA, Narva Aerotech® Heavy Duty LED strobes are even
more visible, durable, and adaptable than their smaller siblings. With a larger profile and greater
light output, AeroTech® Heavy Duty strobes are ideal for larger vehicles. A tough new base and lens
seal allows AeroTech® Heavy Duty strobes to thrive in the harshest environments, including above and
below ground mine sites. With four different colour options, AeroTech® Heavy Duty strobes cover
Features
More Visible
A larger profile provides increased visibilty, up to 6 times brighter than SAE both for rotate and for flash.
More Durable
A diecast aluminium base and upgraded lens seal make the strobes more resistant to vibration and shock.
More Adaptable
With the addition of Heavy Duty Aerotech strobes, Aerotech is the most comprehensive Narva strobe range yet.
Tested Harder
Tested for vibration (IEC 60068-2-64) and mechanical shock (ISO 16750-3) as well as military spec vibration (MIL-STD-810G).
Increased IP Rating
Rated to IP67 and IP69K, Aerotech HD can be pressure washed at high heat, ideal for dusty worksites.
Specifications
Technical Information
| INPUT VOLTAGE RANGE | 10-33V |
|---|---|
| CURRENT DRAW | 1.1A (Rotate), 2.4A (Flash) @ 12V |
| LEDs | 36 x 5W |
| IP RATING | IP67 + IP69K |
| OPERATING TEMPERATURE | -30° to 60° |
| SIZE | 160mm (Height) |
| WEIGHT | 879g |
| BASE TYPE | Flange |
| ECE | R65 Class 2 |
| OTHER | CISPR 25 Class 3 |
| OTHER | SAE Class 1 |
